Self locking right angle buckle拉手,搭扣,旋钮天甲工业

A210

Self locking right angle buckle

Polishing

purpose：Self locking right angle buckle

sample book CAD

model Check the box

- + individual

Get a quote

Total price (before tax):5.3*100=530.00element

total:560.00element

Order Now

communication

quantity	price
1-4	16.8element
50+	13.6element

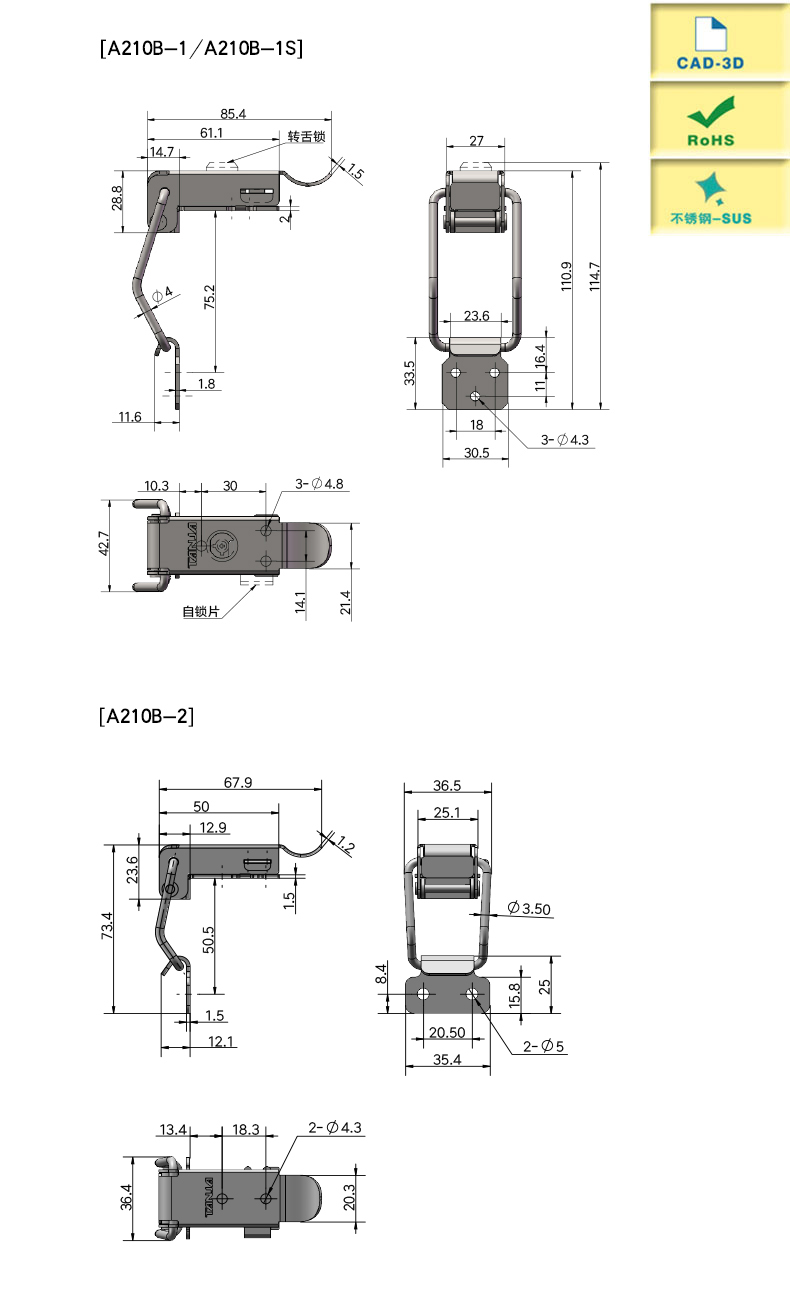

Product dimension diagram

Product dimensions and attributes

	model	function	Length (mm)	material quality	Weight (g)	Locking force (N)	3D	Purchasing
select	Reset						download	select
	A210B-1S（TJ）	With lock,Self locking	85.4	SUS304	122.51	500	download	buy
	A210B-1（TJ）	Self locking	85.4	SUS304	111.61	500	download	buy
	A210B-2（TJ）	Self locking	67.94	SUS304	65.02	500	download	buy

characteristic

Can be installed at the corner of the box

The buckle body is made of stainless steel material, with excellent corrosion resistance performance

Services available

With lock/self-locking
