Adjustable toggle latch

4001 4002 4003

Adjustable toggle latch

Galvanized/Polishing

purpose:Adjustable toggle latch

sample book CAD

model Check the box

- + individual

Total price (before tax):5.3*100=530.00element

total:560.00element

communication

quantity price
1-4 16.8element
50+ 13.6element

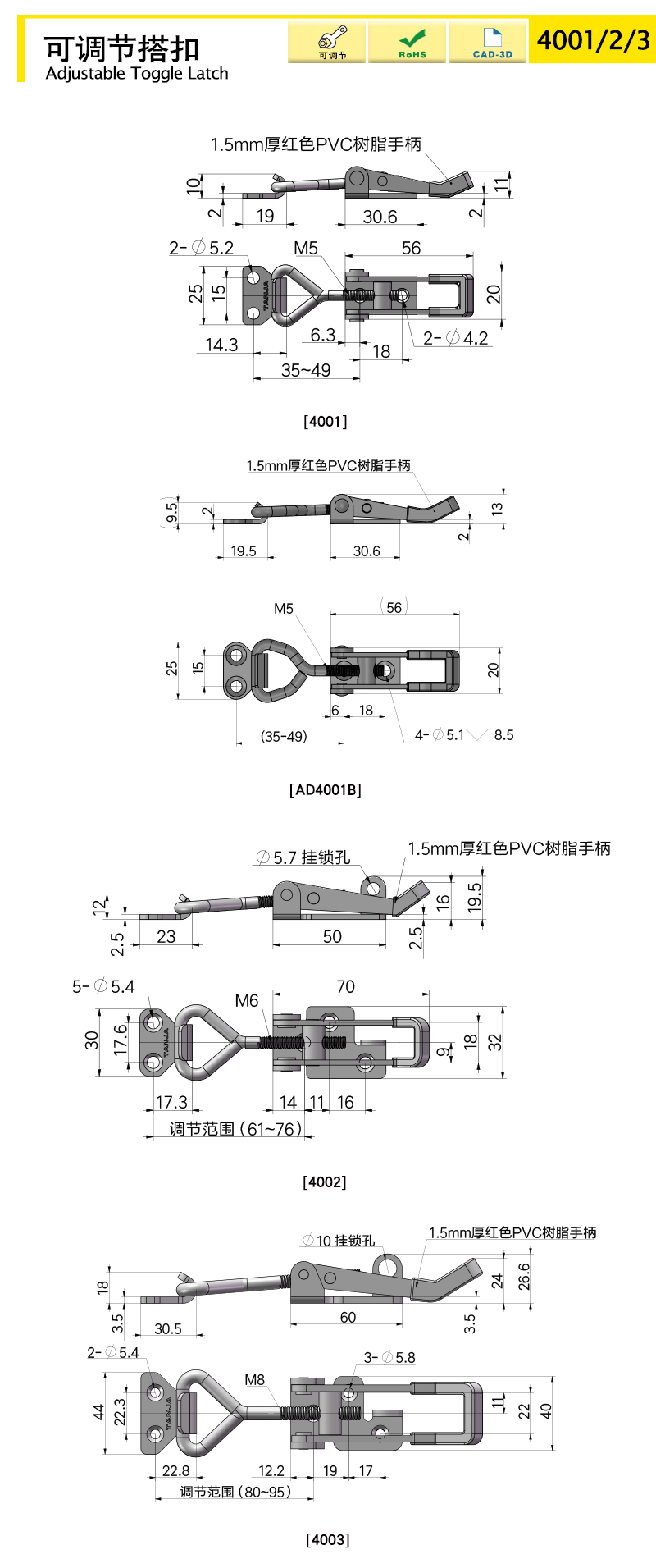

Product dimension diagram
Product dimensions and attributes
  model
function function Length (mm) Length (mm) material quality Weight (g) Locking force (N) Locking force (N) Ultimate load (N) Ultimate load (N)
3D Purchasing
select Reset
download select
4001B
adjustable 87—99.5 SUS304 46.01 1000 /
download
4002B
adjustable,with lock 124—134 SUS304 94.34 1800 /
download
4003B
adjustable,with lock 179—189 SUS304 233.21 3000 /
download
4001
adjustable 87—99.5 SPCC 40.51 1000 /
download
AD4001B
lightweight 87—99.5 SUS304 41.21 1000 3000
download
4001B(TJ)
adjustable 87—99.5 SUS304 / 1000 /
download
4002
adjustable,with lock 124—134 SPCC 92.41 1800 /
download
4002B(TJ)
adjustable,with lock 124—134 SUS304 / 1800 /
download
4003
adjustable,with lock 179—189 SPCC 215.34 3000 /
download
4003B(TJ)
adjustable,with lock 179—189 SUS304 230.21 3000 /
download
characteristic

The screw can be adjusted to change the installation distance and locking force

Heavy duty, suitable for occasions with greater pulling force

Services available

Universal buckle, widely used
