A119B
Adjustable self-locking buckle
Polishing
purpose：Adjustable self-locking buckle
model Check the box
Total price (before tax):5.3*100=530.00element
total:560.00element
communication
| quantity | price |
|---|---|
| 1-4 | 16.8element |
| 50+ | 13.6element |
| model | function  | Length (mm) | material quality | Weight (g) | Locking force (N) | Ultimate load (N) |
3D | Purchasing | |||
|---|---|---|---|---|---|---|---|---|---|---|---|
| select | Reset | download | select | ||||||||

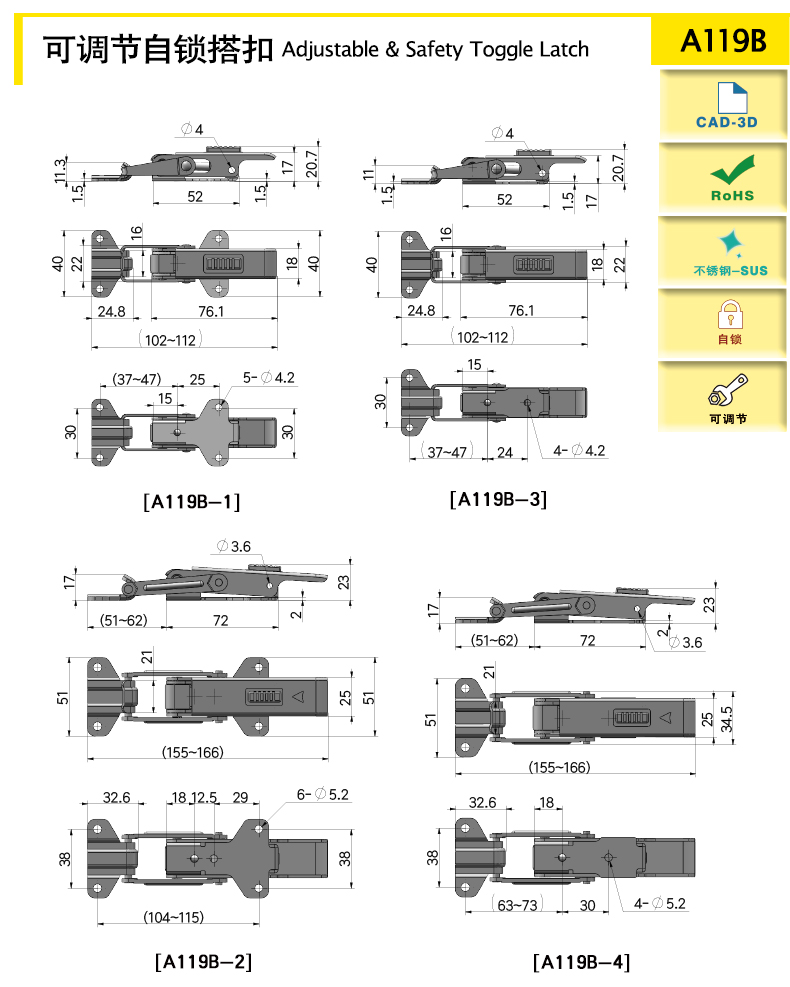

| A119B-1 | Adjustable,self-locking | 102-112 | SUS304 | 82.51 | 500 | 1500 | download | ||||
| A119B-2 | Adjustable,self-locking | 155-166 | SUS304 | 180 | 800 | 2000 | download | ||||
| A119B-3 | Adjustable, self-locking | 102-112 | SUS304 | 190.12 | 500 | 1500 | download | ||||
| A119B-4 | Adjustable, self-locking | 155-166 | SUS304 | 190.12 | 800 | 2000 | download |
With side holes, can be equipped with locks or lead seals to prevent loosening
The self-locking device can achieve self-locking function, with reliable safety, and the buckle will not loosen due to vibration
The locking distance is adjustable and can be adjusted by the screw to achieve different locking forces
