W tensioning clip拉手,搭扣,旋钮天甲工业

AG04

W tensioning clip

Vibration polishing

purpose：Machinery industry, railway, shipbuilding, aerospace, food packaging machinery, packaging and boxes

sample book CAD

model Check the box

- + individual

Get a quote

Total price (before tax):5.3*100=530.00element

total:560.00element

Order Now

communication

quantity	price
1-4	16.8element
50+	13.6element

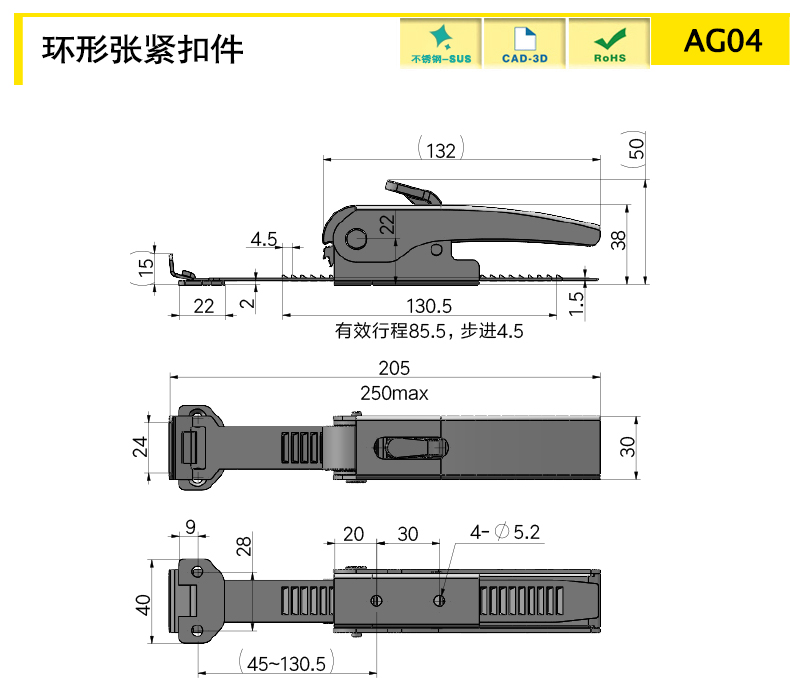

Product dimension diagram

Product dimensions and attributes

	model		function	Length (mm)	material quality	Weight (g)	Locking force (N)	Ultimate load (N)		3D	Purchasing
select	Reset									download	select
	AG04B		Self locking, adjustable	205	SUS304	1	1000	3000		download	buy

characteristic

1. Adjustable tension type: minimum single tension of 4.5mm, maximum tension of 9mm

2. Adjustable stroke of 85.5mm, suitable for larger locking distances

3. Removable rack belt: more flexible to use

Services available

Suggested products for use

Ring tensioning ...
