Coaxial hinge

K138

Coaxial hinge

Spray coating/Drawing

purpose：Coaxial hinge

sample book CAD

model Check the box

- + individual
Get a quote

Total price (before tax):5.3*100=530.00element

total:560.00element

Order Now

communication

quantity price
1-4 16.8element
50+ 13.6element

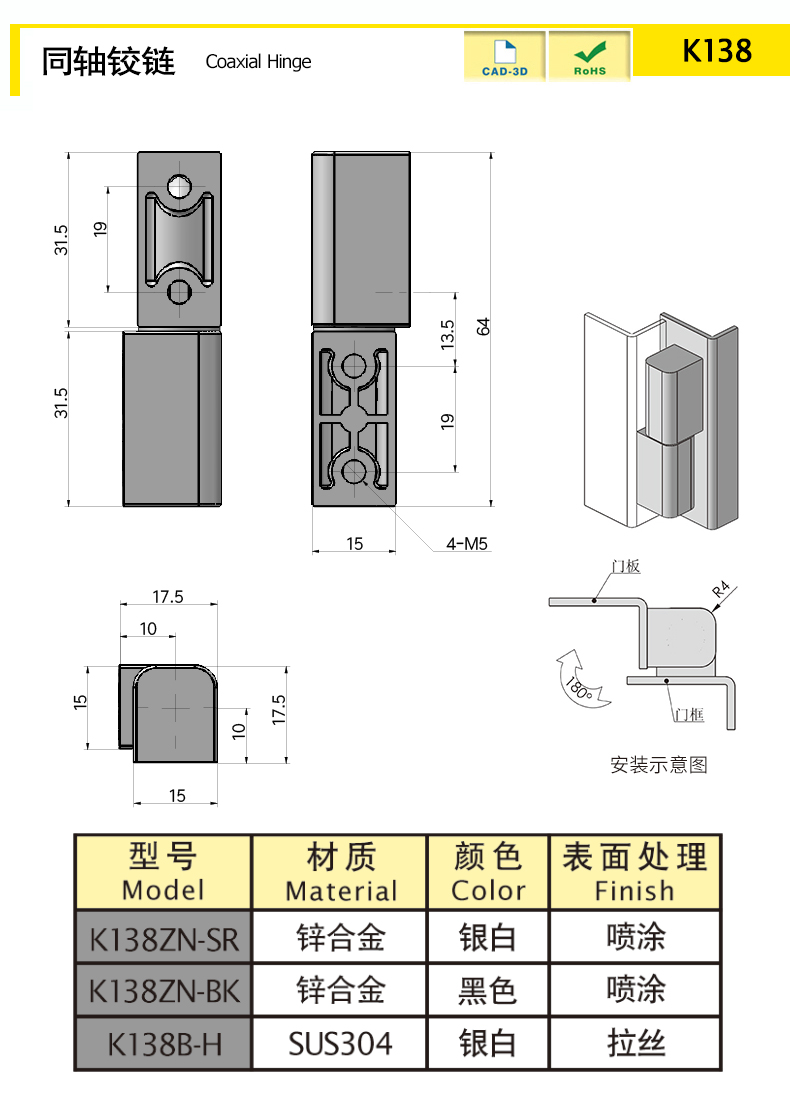

Product dimension diagram
Product dimensions and attributes
  model
material quality material quality Length (mm) Length (mm) colour Weight (g) function
3D Purchasing
select Reset
download select
K138ZN-SR
Zinc alloy 64 Silver White 55.11 Unloading
download
K138ZN-BK
Zinc alloy 64 Black 56.31 Unloading
download
K138B-H
SUS304 64 Silver White 106.31 Unloading
download
characteristic

Maximum opening and closing angle: 180 °

Maximum static load

Radial load: Zinc alloy 650N, stainless steel 1295N

Axial load: Zinc alloy 1550N, stainless steel 2240N

Services available
产品名称
Coaxial hinge
免费下载CAD图纸

更多信息

如有更多技术咨询，请致电
0535-6217008-801
