K185B

Stainless steel spring hinge

polishing

purpose：Home furniture/packaging and box/food packaging machinery/basic machinery manufacturing

sample book CAD

model Check the box

- + individual

Get a quote

Total price (before tax):5.3*100=530.00element

total:560.00element

Order Now

communication

quantity	price
1-4	16.8element
50+	13.6element

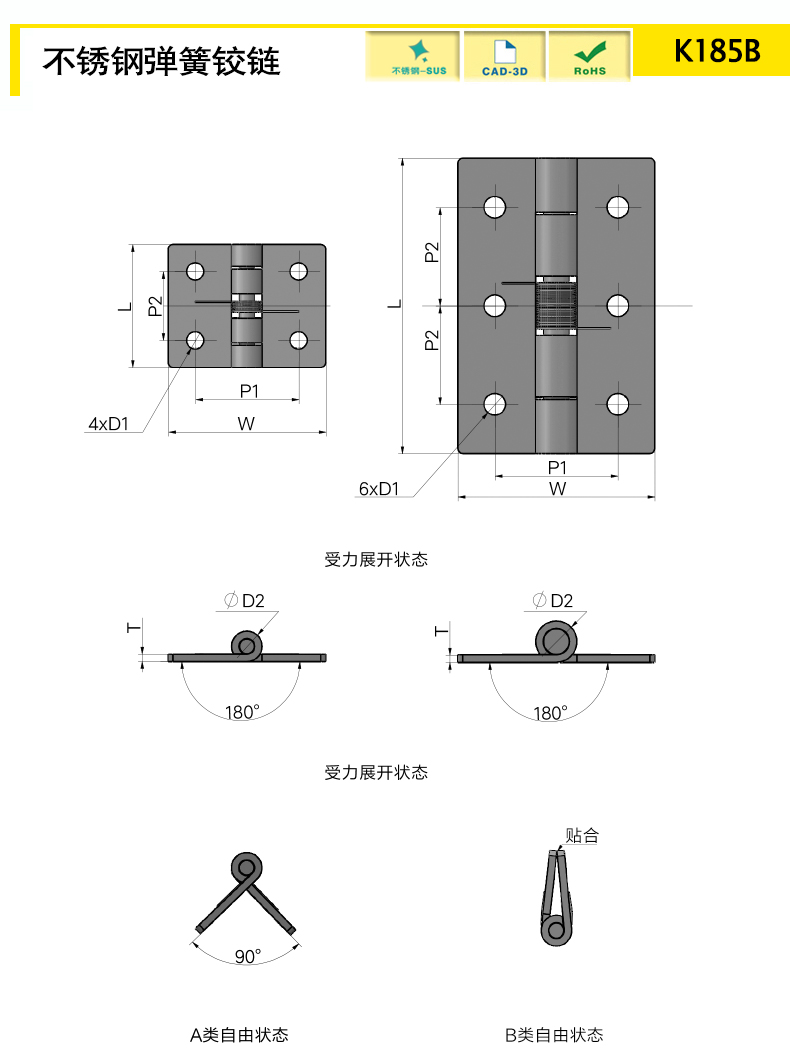

Product dimension diagram

Product dimensions and attributes

	model	material quality	Length (mm)	colour	Weight (g)	function	3D	Purchasing
select	Reset						download	select
	K185B-1.0-A	SUS304	25	silvery white	11.51	Light load	download	buy
	K185B-1.0-B	SUS304	25	silvery white	1	Light load	download	buy
	K185B-1.5-A	SUS304	38	silvery white	17.51	Light load	download	buy
	K185B-1.5-B	SUS304	38	silvery white	17.71	Light load	download	buy
	K185B-2.0-1-A	SUS304	50	silvery white	26.71	Light load	download	buy
	K185B-2.0-1-B	SUS304	50	silvery white	26.31	Light load	download	buy
	K185B-2.0-2-A	SUS304	50	silvery white	53.1	Light load	download	buy
	K185B-2.0-3-A	SUS304	51	silvery white	63.31	Light load	download	buy
	K185B-2.5-1-A	SUS304	60	silvery white	43.41	Light load	download	buy
	K185B-2.5-1-B	SUS304	60	silvery white	43.91	Light load	download	buy
	K185B-2.5-2-A	SUS304	60	silvery white	47.61	Light load	download	buy
	K185B-3.0-A	SUS304	75	silvery white	78.11	Light load	download	buy
	K185B-3.5-A	SUS304	80	silvery white	111.21	Light load	download	buy
	K185B-3.5-B	SUS304	80	silvery white	109.21	Light load	download	buy
	K185B-4.0-A	SUS304	100	silvery white	106.81	Light load	download	buy
	K185B-4.0-B	SUS304	100	silvery white	1	Light load	download	buy

characteristic

Stainless steel spring design, capable of automatic rebound and reset, saving time and effort
Surface vibration polishing, anti-corrosion and wear-resistant
Rich specifications, including 1.0 inch, 1.5 inch, 2.0 inch, 2.5 inch, 3.0 inch, 3.5 inch, 4.0 inch, to meet various occasions
remarks:
① Categories A and B only have opposite styles and can be interchanged during installation (at least two products of the same model must be used together). Users can choose according to their needs
② 2.5-1 series, 3.0 series, 4.0 series products have 3 mounting holes on one side, while other products have 2
