Dividing sales拉手,搭扣,旋钮天甲工业

S22

Dividing sales

Aluminum alloy anodizing

purpose：Chemical/Food/Equipment and Testing Instruments

model Check the box

- + individual

Total price (before tax):5.3*100=530.00element

total:560.00element

communication

quantity	price
1-4	16.8element
50+	13.6element

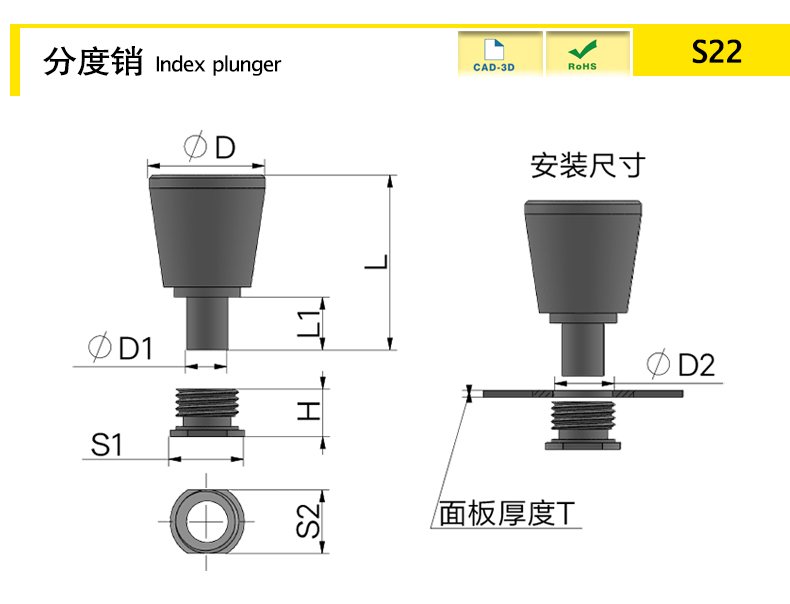

Product dimension diagram

Product dimensions and attributes

	model	material quality	D1	Length L	D	L1	T	D2	S1	S2	Weight (g)	3D	Purchasing
select	Reset											download	select
	S22-S-4.7-SR	aluminium alloy	4.7	19.8	13.5	6.4	0.64~1.52	7.14	9	7.1	6.51	download	buy
	S22-S-4.7-RD	aluminium alloy	4.7	19.8	13.5	6.4	0.64~1.52	7.14	9	7.1	6.51	download	buy
	S22-S-4.7-BU	aluminium alloy	4.7	19.8	13.5	6.4	0.64~1.52	7.14	9	7.1	6.51	download	buy
	S22-S-4.7-BK	aluminium alloy	4.7	19.8	13.5	6.4	0.64~1.52	7.14	9	7.1	6.61	download	buy
	S22-S-6.2-SR	aluminium alloy	6.2	26.2	17.5	7.9	0.79~3.18	9.12	11.2	9.5	13.01	download	buy
	S22-S-6.2-RD	aluminium alloy	6.2	26.2	17.5	7.9	0.79~3.18	9.12	11.2	9.5	13.01	download	buy
	S22-S-6.2-BU	aluminium alloy	6.2	26.2	17.5	7.9	0.79~3.18	9.12	11.2	9.5	13.01	download	buy
	S22-S-6.2-BK	aluminium alloy	6.2	26.2	17.5	7.9	0.79~3.18	9.12	11.2	9.5	13.11	download	buy
	S22-4.7-SR	aluminium alloy	4.7	19.8	13.5	6.4	0.64~1.52	7.14	9	7.1	6.4	download	buy
	S22-4.7-RD	aluminium alloy	4.7	19.8	13.5	6.4	0.64~1.52	7.14	9	7.1	6.21	download	buy
	S22-4.7-BU	aluminium alloy	4.7	19.8	13.5	6.4	0.64~1.52	7.14	9	7.1	6.4	download	buy
	S22-4.7-BK	aluminium alloy	4.7	19.8	13.5	6.4	0.64~1.52	7.14	9	7.1	1	download	buy
	S22-6.2-SR	aluminium alloy	6.2	26.2	17.5	7.9	0.79~3.18	9.12	11.2	9.5	12.71	download	buy
	S22-6.2-RD	aluminium alloy	6.2	26.2	17.5	7.9	0.79~3.18	9.12	11.2	9.5	12.71	download	buy
	S22-6.2-BU	aluminium alloy	6.2	26.2	17.5	7.9	0.79~3.18	9.12	11.2	9.5	12.71	download	buy
	S22-6.2-BK	aluminium alloy	6.2	26.2	17.5	7.9	0.79~3.18	9.12	11.2	9.5	12.71	download	buy

characteristic

1、尺寸小巧，色彩丰富，铝合金材质，耐腐蚀性高，适合多种场合
2、产品类型丰富，包括复位型和自锁型两种设计
复位型：把手拉出后，可自动回弹

自锁型：把手拉出后，旋转90°，可保持当前弹出状态，再次旋转90°，可自动回弹

把手采用铝合金阳极氧化，包含SR:银白，RD:红色，BU:蓝色，BK:黑色，内部柱塞采用碳钢镀锌材质

Services available

1.长度非标定制 2.超声波清洗和无尘包装 3.激光雕刻LOGO
