S28/S29
Micro positioning indexing pin
stainless steel
purpose：Chemical/Food/Equipment and Testing Instruments
model Check the box
Total price (before tax):5.3*100=530.00element
total:560.00element
communication
| quantity | price |
|---|---|
| 1-4 | 16.8element |
| 50+ | 13.6element |

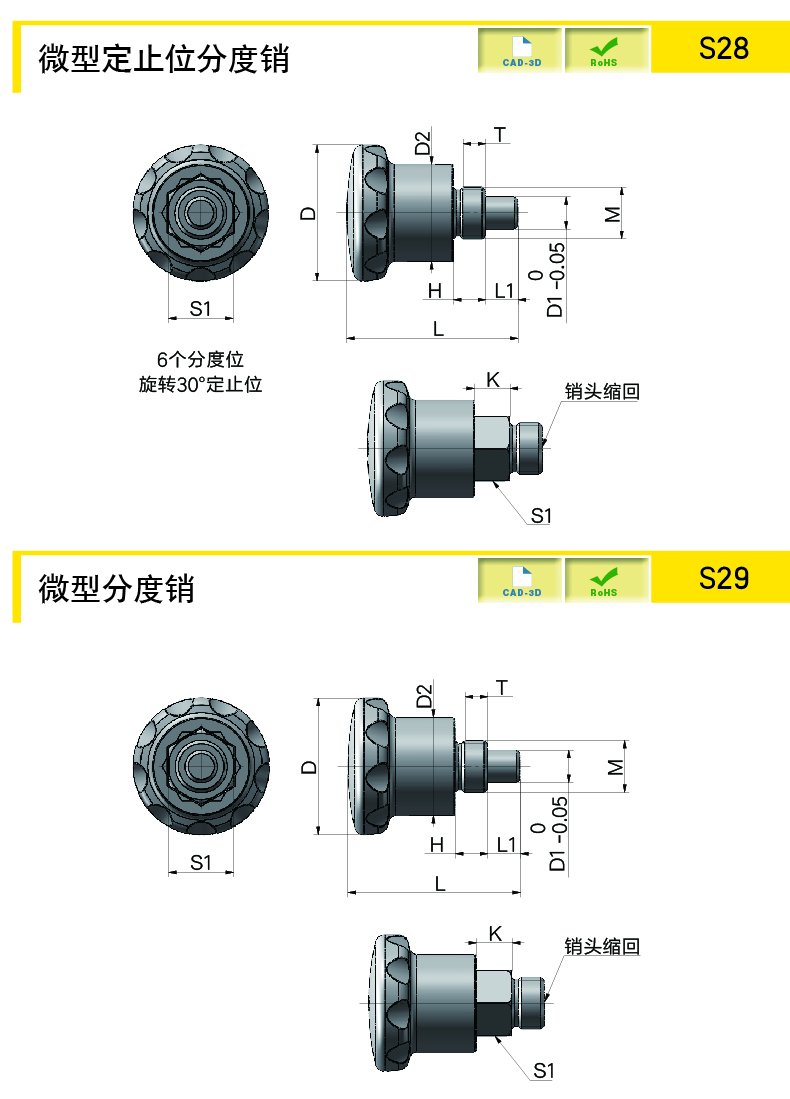

| model | material quality  | D1 | Length L | D | L1 | T | M | D2 | S1 | Weight (g) | 3D | Purchasing | |||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| select | Reset | download | select | ||||||||||||
| S28B-4-BK | SUS303 | 4 | 26.5 | 21 | 5 | 3.5 | M8x0.75 | 15 | 10 | 1 | download | ||||
| S28B-5-BK | SUS303 | 5 | 26.5 | 21 | 5 | 3.5 | M8x0.75 | 15 | 10 | 1 | download | ||||
| S28B-6-BK | SUS303 | 6 | 34 | 25 | 7 | 4.5 | M10x1 | 18 | 12 | 1 | download | ||||
| S28B-7-BK | SUS303 | 7 | 34 | 25 | 7 | 4.5 | M10x1 | 18 | 12 | 1 | download | ||||
| S28B-4-RD | SUS303 | 4 | 26.5 | 21 | 5 | 3.5 | M8x0.75 | 15 | 10 | 1 | download | ||||
| S28B-5-RD | SUS303 | 5 | 26.5 | 21 | 5 | 3.5 | M8x0.75 | 15 | 10 | 1 | download | ||||
| S28B-6-RD | SUS303 | 6 | 34 | 25 | 7 | 4.5 | M10x1 | 18 | 12 | 1 | download | ||||
| S28B-7-RD | SUS303 | 7 | 34 | 25 | 7 | 4.5 | M10x1 | 18 | 12 | 1 | download | ||||
| S29B-4-BK | SUS303 | 4 | 26.5 | 21 | 5 | 3.5 | M8x0.75 | 15 | 10 | 1 | download | ||||
| S29B-5-BK | SUS303 | 5 | 26.5 | 21 | 5 | 3.5 | M8x0.75 | 15 | 10 | 1 | download | ||||
| S29B-6-BK | SUS303 | 6 | 34 | 25 | 7 | 4.5 | M10x1 | 18 | 12 | 1 | download | ||||
| S29B-7-BK | SUS303 | 7 | 34 | 25 | 7 | 4.5 | M10x1 | 18 | 12 | 1 | download | ||||
| S29B-4-RD | SUS303 | 4 | 26.5 | 21 | 5 | 3.5 | M8x0.75 | 15 | 10 | 1 | download | ||||
| S29B-5-RD | SUS303 | 5 | 26.5 | 21 | 5 | 3.5 | M8x0.75 | 15 | 10 | 1 | download | ||||
| S29B-6-RD | SUS303 | 6 | 34 | 25 | 7 | 4.5 | M10x1 | 18 | 12 | 1 | download | ||||
| S29B-7-RD | SUS303 | 7 | 34 | 25 | 7 | 4.5 | M10x1 | 18 | 12 | 1 | download |
S28
RD：把手PA，红色，亚光饰面；销头SUS303
BK：把手PA，黑色，亚光饰面；销头SUS303带定止位的分度销，提起把手旋转30°可定位
S29
RD：把手PA，红色，亚光饰面；销头SUS303
BK：把手PA，黑色，亚光饰面；销头SUS303
提起把手可解锁定位
更多信息
如有更多技术咨询，请致电
