select language version
model Check the box
Total price (before tax):5.3*100=530.00element
total:560.00element
communication
| quantity | price |
|---|---|
| 1-4 | 16.8element |
| 50+ | 13.6element |

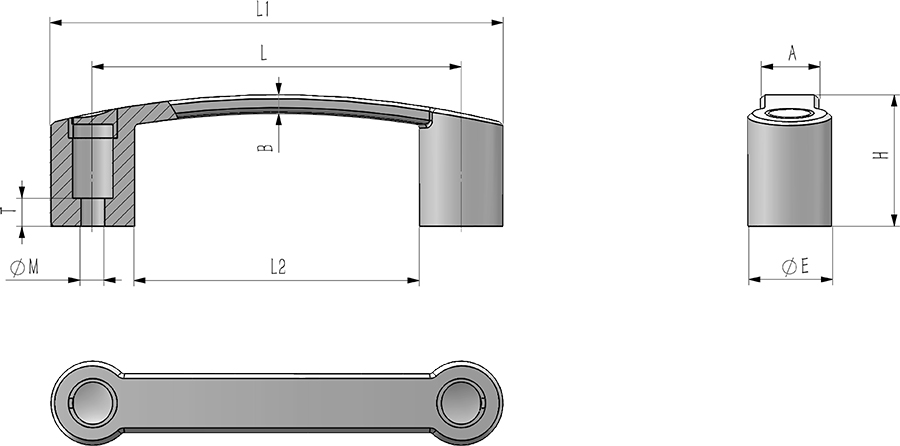

| model | material quality | Tube body  | Supporting feet | Cover plate | Weight (g) | Length L | L1 | L2 | E | M | T | A | B |
3D | Purchasing | |||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| select | Reset | download | select | |||||||||||||||
| L50-93-RD | Polyamide (PA) | Black | black | Red | 33.71 | 93 | 117 | 67 | 25.4 | 6.5 | 6 | 17 | 5.2 | download | ||||
| L50-93-YL | Polyamide (PA) | Black | black | Yellow | 1 | 93 | 117 | 67 | 25.4 | 6.5 | 6 | 17 | 5.2 | download | ||||
| L50-93-BU | Polyamide (PA) | Black | black | Blue | 33.71 | 93 | 117 | 67 | 25.4 | 6.5 | 6 | 17 | 5.2 | download | ||||
| L50-93-WH | Polyamide (PA) | Black | black | White | 1 | 93 | 117 | 67 | 25.4 | 6.5 | 6 | 17 | 5.2 | download | ||||
| L50-117-RD | Polyamide (PA) | Black | black | Red | 54.31 | 117 | 144 | 87 | 28.5 | 8.4 | 8 | 20 | 6.5 | download | ||||
| L50-117-YL | Polyamide (PA) | Black | black | Yellow | 54.31 | 117 | 144 | 87 | 28.5 | 8.4 | 8 | 20 | 6.5 | download | ||||
| L50-117-BU | Polyamide (PA) | Black | black | Blue | 54.41 | 117 | 144 | 87 | 28.5 | 8.4 | 8 | 20 | 6.5 | download | ||||
| L50-117-WH | Polyamide (PA) | Black | black | White | 54.31 | 117 | 144 | 87 | 28.5 | 8.4 | 8 | 20 | 6.5 | download | ||||
| L50-132-RD | Polyamide (PA) | Black | black | Red | 66.01 | 132 | 162 | 102 | 30 | 8.5 | 9 | 21 | 6.8 | download | ||||
| L50-132-YL | Polyamide (PA) | Black | black | Yellow | 66.01 | 132 | 162 | 102 | 30 | 8.5 | 9 | 21 | 6.8 | download | ||||
| L50-132-BU | Polyamide (PA) | Black | black | Blue | 66.01 | 132 | 162 | 102 | 30 | 8.5 | 9 | 21 | 6.8 | download | ||||
| L50-132-WH | Polyamide (PA) | Black | black | White | 66.01 | 132 | 162 | 102 | 30 | 8.5 | 9 | 21 | 6.8 | download |
Bending handle:
Handle body, polyamide (PA), black matte finish
R-type: Red end cap (PC)
Y-shaped: Yellow end cap (PC)
Type B: Blue end cap (PC)
W-type: White end cap (PC)
Installation: The support legs have through-holes for the M6/M8 hexagon socket screws
Unique curved handle design, fashionable and beautiful, comfortable to grip, firm and stable
