select language version
model Check the box
Total price (before tax):5.3*100=530.00element
total:560.00element
communication
| quantity | price |
|---|---|
| 1-4 | 16.8element |
| 50+ | 13.6element |

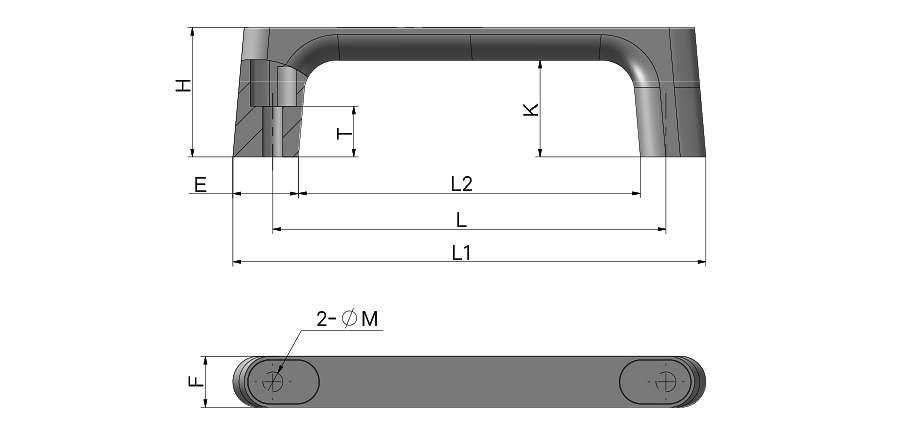

| model | material quality | Tube body  | Cover plate | Weight (g) | Length L | L1 | L2 | H | F | E | M | T | K |
3D | Purchasing | |||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| select | Reset | download | select | |||||||||||||||
| L59-16-100-BK | Zinc alloy | Silver White | Black | 139.51 | 100 | 124 | 84 | 39.5 | 15.6 | 20 | 6.1 | 15.5 | 29.5 | download | ||||
| L59-16-100-BU | Zinc alloy | Silver White | Blue | 139.51 | 100 | 124 | 84 | 39.5 | 15.6 | 20 | 6.1 | 15.5 | 29.5 | download | ||||
| L59-16-100-GY | Zinc alloy | Silver White | Grey | 139.51 | 100 | 124 | 84 | 39.5 | 15.6 | 20 | 6.1 | 15.5 | 29.5 | download | ||||
| L59-16-100-WH | Zinc alloy | Silver White | White | 139.51 | 100 | 124 | 84 | 39.5 | 15.6 | 20 | 6.1 | 15.5 | 29.5 | download | ||||
| L59-16-120-BK | Zinc alloy | Silver White | Black | 164.01 | 120 | 144 | 104 | 39.5 | 15.6 | 20 | 6.1 | 15.5 | 29.5 | download | ||||
| L59-16-120-BU | Zinc alloy | Silver White | Blue | 164.01 | 120 | 144 | 104 | 39.5 | 15.6 | 20 | 6.1 | 15.5 | 29.5 | download | ||||
| L59-16-120-GY | Zinc alloy | Silver White | Grey | 164.01 | 120 | 144 | 104 | 39.5 | 15.6 | 20 | 6.1 | 15.5 | 29.5 | download | ||||
| L59-16-120-WH | Zinc alloy | Silver White | White | 164.02 | 120 | 144 | 104 | 39.5 | 15.6 | 20 | 6.1 | 15.5 | 29.5 | download |
Main body: Zinc alloy, chrome plated (pearl chromium) silver white
BK: Black ABS cover plate
BU: Cover plate blue ABS
GY: Cover plate gray ABS
WH: White ABS cover plate
