handle拉手,搭扣,旋钮天甲工业

L86

handle

Anodizing of aluminum alloy

purpose：handle

sample book CAD

model Check the box

- + individual

Get a quote

Total price (before tax):5.3*100=530.00element

total:560.00element

Order Now

communication

quantity	price
1-4	16.8element
50+	13.6element

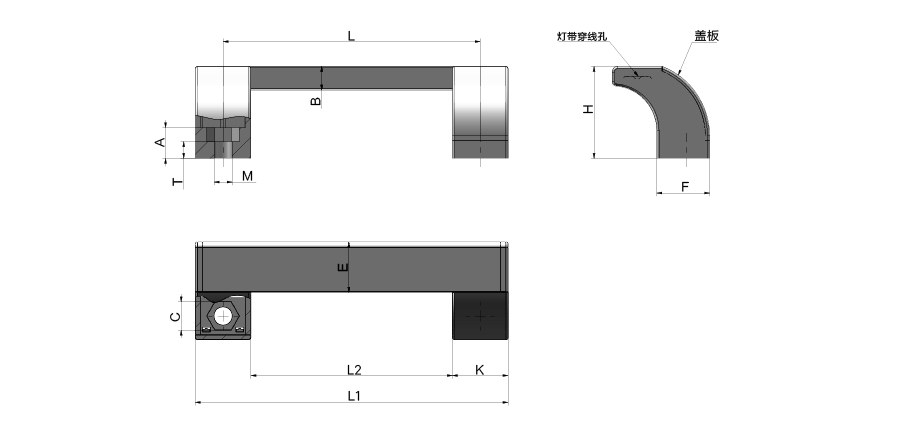

Product dimension diagram

Product dimensions and attributes

	model	material quality	Tube body	Supporting feet	Cover plate	Weight (g)	Length L	L1	L2	H	F	E	M	T	C	K	A	B	3D	Purchasing
select	Reset																		download	select
	L86-23-120-YL	Aluminum alloy	Black	black	Yellow	90.01	120	146	94	43	25	23	8.5	8	13.2	26	14	11	download	buy
	L86D-23-120-YL	Aluminum alloy	Black	black	Yellow	90.01	120	146	94	43	25	23	8.5	8	13.2	26	14	11	download	buy
	L86-23-150-YL	Aluminum alloy	Black	black	Yellow	105.01	150	176	124	43	25	23	8.5	8	13.2	26	14	11	download	buy
	L86D-23-150-YL	Aluminum alloy	Black	black	Yellow	105.01	150	176	124	43	25	23	8.5	8	13.2	26	14	11	download	buy
	L86-23-180-YL	Aluminum alloy	Black	black	Yellow	120.01	180	206	154	43	25	23	8.5	8	13.2	26	14	11	download	buy
	L86D-23-180-YL	Aluminum alloy	Black	black	Yellow	120.01	180	206	154	43	25	23	8.5	8	13.2	26	14	11	download	buy
	L86-23-120-WH	Aluminum alloy	Black	black	White	90.01	120	146	94	43	25	23	8.5	8	13.2	26	14	11	download	buy
	L86D-23-120-WH	Aluminum alloy	Black	black	White	90.01	120	146	94	43	25	23	8.5	8	13.2	26	14	11	download	buy
	L86-23-150-WH	Aluminum alloy	Black	black	White	105.01	150	176	124	43	25	23	8.5	8	13.2	26	14	11	download	buy
	L86D-23-150-WH	Aluminum alloy	Black	black	White	105.01	150	176	124	43	25	23	8.5	8	13.2	26	14	11	download	buy
	L86-23-180-WH	Aluminum alloy	Black	black	White	120.01	180	206	154	43	25	23	8.5	8	13.2	26	14	11	download	buy
	L86D-23-180-WH	Aluminum alloy	Black	black	White	120.01	180	206	154	43	25	23	8.5	8	13.2	26	14	11	download	buy
	L86-23-120-OG	Aluminum alloy	Black	black	Orange	90.01	120	146	94	43	25	23	8.5	8	13.2	26	14	11	download	buy
	L86D-23-120-OG	Aluminum alloy	Black	black	Orange	90.01	120	146	94	43	25	23	8.5	8	13.2	26	14	11	download	buy
	L86-23-150-OG	Aluminum alloy	Black	black	Orange	105.01	150	176	124	43	25	23	8.5	8	13.2	26	14	11	download	buy
	L86D-23-150-OG	Aluminum alloy	Black	black	Orange	105.01	150	176	124	43	25	23	8.5	8	13.2	26	14	11	download	buy
	L86-23-180-OG	Aluminum alloy	Black	black	Orange	120.01	180	206	154	43	25	23	8.5	8	13.2	26	14	11	download	buy
	L86D-23-180-OG	Aluminum alloy	Black	black	Orange	120.01	180	206	154	43	25	23	8.5	8	13.2	26	14	11	download	buy

characteristic

Handle aluminum alloy, black anodized

Support ABS, black

Cover ABS, yellow, white, orange

Equipped with threading holes, can install hidden light strips

L86D factory pre installed light strip

Installation: Both front and back installations are acceptable

Services available

1. Customized non-standard length 2. Ultrasonic cleaning and dust-free packaging 3. Laser engraving of logo
