Triangle arrow nut knob拉手,搭扣,旋钮天甲工业

T106

Triangle arrow nut knob

purpose：Triangle arrow nut knob

sample book CAD

model Check the box

- + individual

Get a quote

Total price (before tax):5.3*100=530.00element

total:560.00element

Order Now

communication

quantity	price
1-4	16.8element
50+	13.6element

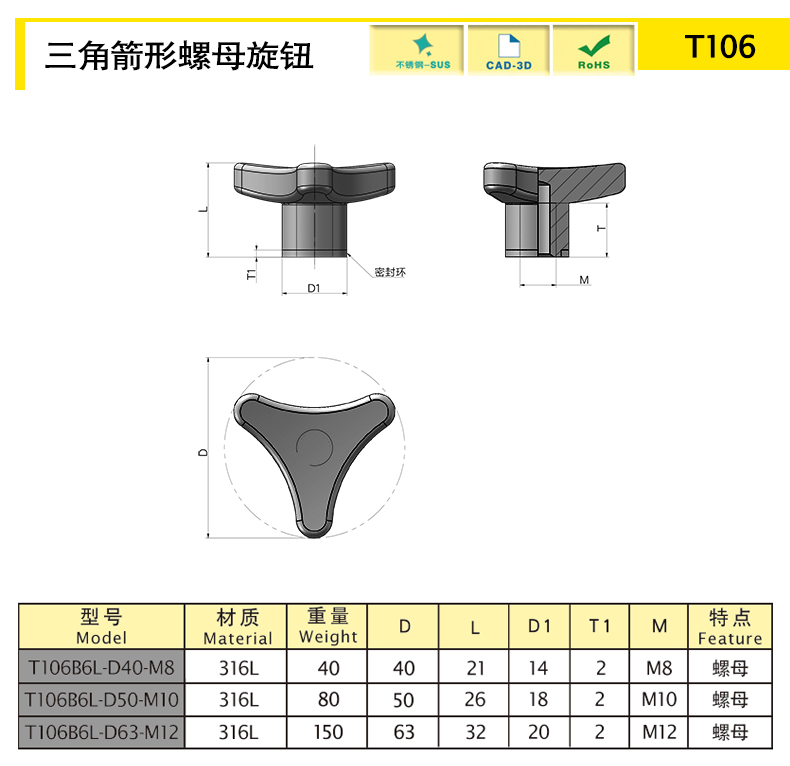

Product dimension diagram

Product dimensions and attributes

	model	material quality	Diameter D	Length L	D1	M	T	T1	characteristic	Weight (g)	3D	Purchasing
select	Reset										download	select
	T106B6L-D40-M8	316L	40	21	14	M8	12	2	Nut	40	download	buy
	T106B6L-D50-M10	316L	50	26	18	M10	15	2	Nut	80	download	buy
	T106B6L-D63-M12	316L	63	32	20	M12	18	2	Nut	150.01	download	buy

characteristic

Can be used in clean areas and dust-free environments. The assembly surface is equipped with sealing gaskets, and there are no sanitary dead corners after installation. A larger rounded radius and sealing gasket can prevent dust from adhering and facilitate cleaning.

Sealing gasket EPDM (ethylene propylene diene monomer rubber) can withstand temperatures up to -30 ° C to+120 ° C
