select language version
model Check the box
Total price (before tax):5.3*100=530.00element
total:560.00element
communication
| quantity | price |
|---|---|
| 1-4 | 16.8element |
| 50+ | 13.6element |

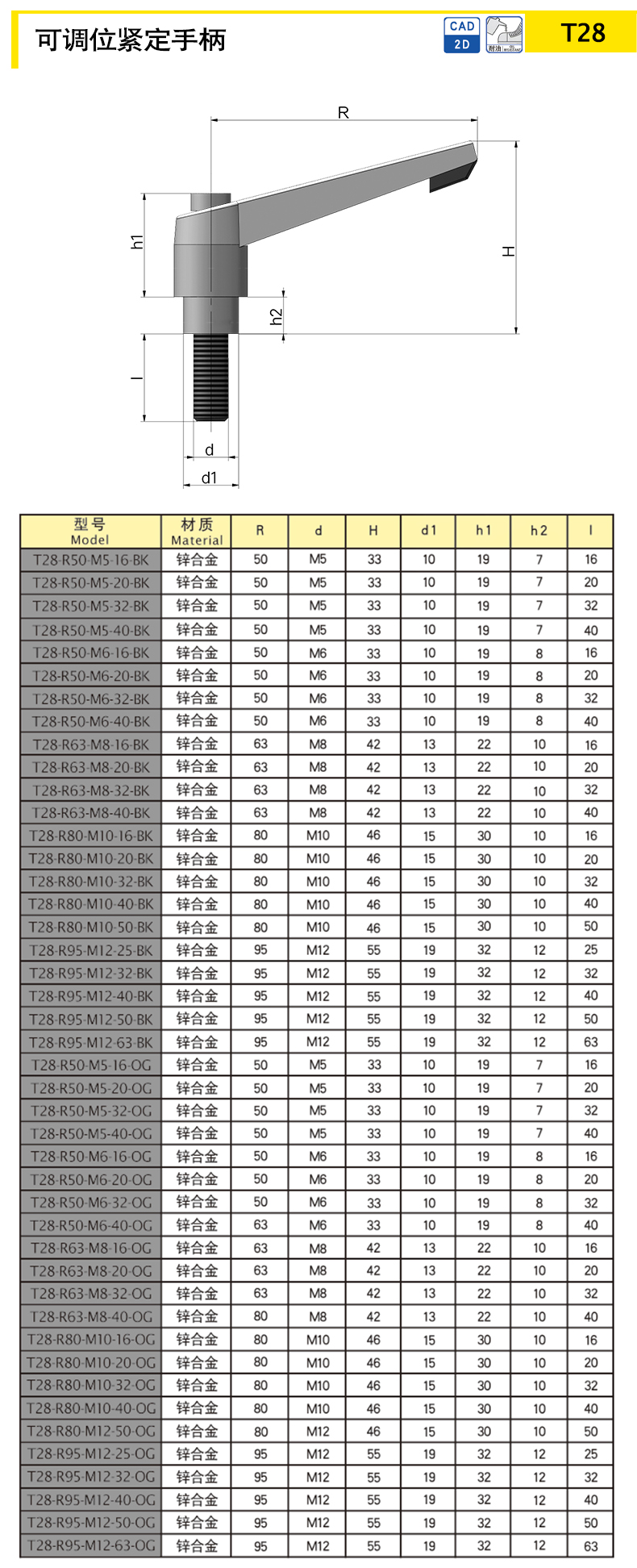

| model | material quality | R  | d | h1 | I | h2 | d1 | Weight (g) | 3D | Purchasing | |||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| select | Reset | download | select | ||||||||||
| T28-R50-M5-16-BK | Zinc alloy | 50 | M5 | 19 | 16 | 7 | 10 | 1 | download | ||||
| T28-R50-M5-20-BK | Zinc alloy | 50 | M5 | 19 | 20 | 7 | 10 | 33.11 | download | ||||
| T28-R50-M5-32-BK | Zinc alloy | 50 | M5 | 19 | 32 | 7 | 10 | 33.01 | download | ||||
| T28-R50-M5-40-BK | Zinc alloy | 50 | M5 | 19 | 40 | 7 | 10 | 33.5 | download | ||||
| T28-R50-M6-16-BK | Zinc alloy | 50 | M6 | 19 | 16 | 7 | 10 | 1 | download | ||||
| T28-R50-M6-20-BK | Zinc alloy | 50 | M6 | 19 | 20 | 7 | 10 | 33.11 | download | ||||
| T28-R50-M6-32-BK | Zinc alloy | 50 | M6 | 19 | 32 | 7 | 10 | 34.01 | download | ||||
| T28-R50-M6-40-BK | Zinc alloy | 50 | M6 | 19 | 40 | 7 | 10 | 37.01 | download | ||||
| T28-R63-M8-16-BK | Zinc alloy | 63 | M8 | 22 | 16 | 8 | 13 | 64.71 | download | ||||
| T28-R63-M8-20-BK | Zinc alloy | 63 | M8 | 22 | 20 | 8 | 13 | 67.61 | download | ||||
| T28-R63-M8-32-BK | Zinc alloy | 63 | M8 | 22 | 32 | 8 | 13 | 71.01 | download | ||||
| T28-R63-M8-40-BK | Zinc alloy | 63 | M8 | 22 | 40 | 8 | 13 | 73.01 | download | ||||
| T28-R80-M10-16-BK | Zinc alloy | 80 | M10 | 30 | 16 | 10 | 15 | 1 | download | ||||
| T28-R80-M10-20-BK | Zinc alloy | 80 | M10 | 30 | 20 | 10 | 15 | 106.11 | download | ||||
| T28-R80-M10-32-BK | Zinc alloy | 80 | M10 | 30 | 32 | 10 | 15 | 1 | download | ||||
| T28-R80-M10-40-BK | Zinc alloy | 80 | M10 | 30 | 40 | 10 | 15 | 116.51 | download | ||||
| T28-R80-M10-50-BK | Zinc alloy | 80 | M10 | 30 | 50 | 10 | 15 | 121.01 | download | ||||
| T28-R95-M12-25-BK | Zinc alloy | 95 | M12 | 32 | 25 | 12 | 19 | 1 | download | ||||
| T28-R95-M12-32-BK | Zinc alloy | 95 | M12 | 32 | 32 | 12 | 19 | 174.01 | download | ||||
| T28-R95-M12-40-BK | Zinc alloy | 95 | M12 | 32 | 40 | 12 | 19 | 1 | download | ||||
| T28-R95-M12-50-BK | Zinc alloy | 95 | M12 | 32 | 50 | 12 | 19 | 1 | download | ||||
| T28-R95-M12-63-BK | Zinc alloy | 95 | M12 | 32 | 63 | 12 | 19 | 1 | download | ||||
| T28-R50-M5-16-OG | Zinc alloy | 50 | M5 | 19 | 16 | 7 | 10 | 1 | download | ||||
| T28-R50-M5-20-OG | Zinc alloy | 50 | M5 | 19 | 20 | 7 | 10 | 1 | download | ||||
| T28-R50-M5-32-OG | Zinc alloy | 50 | M5 | 19 | 32 | 7 | 10 | 32.4 | download | ||||
| T28-R50-M5-40-OG | Zinc alloy | 50 | M5 | 19 | 40 | 7 | 10 | 33.21 | download | ||||
| T28-R50-M6-16-OG | Zinc alloy | 50 | M6 | 19 | 16 | 7 | 10 | 1 | download | ||||
| T28-R50-M6-20-OG | Zinc alloy | 50 | M6 | 19 | 20 | 7 | 10 | 1 | download | ||||
| T28-R50-M6-32-OG | Zinc alloy | 50 | M6 | 19 | 32 | 7 | 10 | 1 | download | ||||
| T28-R50-M6-40-OG | Zinc alloy | 50 | M6 | 19 | 40 | 7 | 10 | / | download | ||||
| T28-R63-M8-16-OG | Zinc alloy | 63 | M8 | 22 | 16 | 8 | 13 | 64 | download | ||||
| T28-R63-M8-20-OG | Zinc alloy | 63 | M8 | 22 | 20 | 8 | 13 | 1 | download | ||||
| T28-R63-M8-32-OG | Zinc alloy | 63 | M8 | 22 | 32 | 8 | 13 | 1 | download | ||||
| T28-R63-M8-40-OG | Zinc alloy | 63 | M8 | 22 | 40 | 8 | 13 | 71 | download | ||||
| T28-R80-M10-16-OG | Zinc alloy | 80 | M10 | 30 | 16 | 10 | 15 | 1 | download | ||||
| T28-R80-M10-20-OG | Zinc alloy | 80 | M10 | 30 | 20 | 10 | 15 | 106.11 | download | ||||
| T28-R80-M10-32-OG | Zinc alloy | 80 | M10 | 30 | 32 | 10 | 15 | 113.94 | download | ||||
| T28-R80-M10-40-OG | Zinc alloy | 80 | M10 | 30 | 40 | 10 | 15 | 189.01 | download | ||||
| T28-R80-M10-50-OG | Zinc alloy | 80 | M10 | 30 | 50 | 10 | 15 | 1 | download | ||||
| T28-R95-M12-25-OG | Zinc alloy | 95 | M12 | 32 | 25 | 12 | 19 | 1 | download | ||||
| T28-R95-M12-32-OG | Zinc alloy | 95 | M12 | 32 | 32 | 12 | 19 | 174.7 | download | ||||
| T28-R95-M12-40-OG | Zinc alloy | 95 | M12 | 32 | 40 | 12 | 19 | 189.04 | download | ||||
| T28-R95-M12-50-OG | Zinc alloy | 95 | M12 | 32 | 50 | 12 | 19 | 197.51 | download | ||||
| T28-R95-M12-63-OG | Zinc alloy | 95 | M12 | 32 | 63 | 12 | 19 | 1 | download |
Compared to other concentric handles, it has greater torque and more angles, making it convenient for operators to use. It is suitable for situations where there is a lack of space or special requirements for the position of the handle
