Single wing nut knob拉手,搭扣,旋钮天甲工业

T74

Single wing nut knob

Polyamide (PA)

purpose：Single wing nut knob

sample book CAD

model Check the box

- + individual

Get a quote

Total price (before tax):5.3*100=530.00element

total:560.00element

Order Now

communication

quantity	price
1-4	16.8element
50+	13.6element

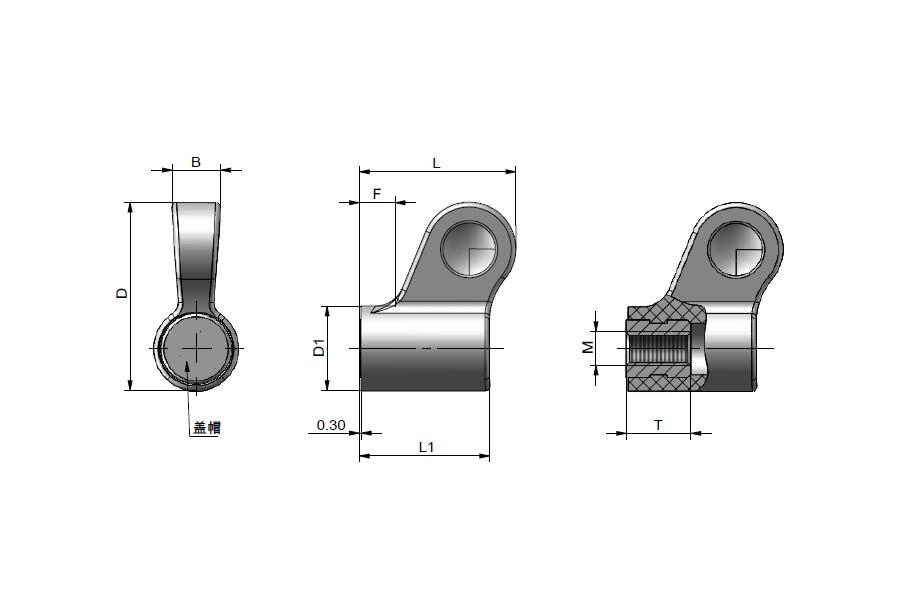

Product dimension diagram

Product dimensions and attributes

	model	material quality	Diameter D	M	T	F	B	characteristic	L1	Weight (g)	3D	Purchasing
select	Reset										download	select
	T74-32-M6	Polyamide (PA)	32	M6	11	6	8	Nut	22	1	download	buy
	T74-43-M8	Polyamide (PA)	43	M8	19	8	11	Nut	29	1	download	buy
	T74-43-M10	Polyamide (PA)	43	M10	19	8	11	Nut	29	1	download	buy

characteristic

Black, matte finish

Copper hub: with threaded through-hole

Cap: detachable

The butterfly shaped part of the knob's single arm is slightly concave, which helps to grip and position with fingers and is conducive to fastening; The cap can be removed and reused

Services available

1. Customized non-standard length 2. Optional screws 3. Ultrasonic cleaning and dust-free packaging
