| quantity | price |
|---|---|
| 1-4 | 16.8element |
| 50+ | 13.6element |

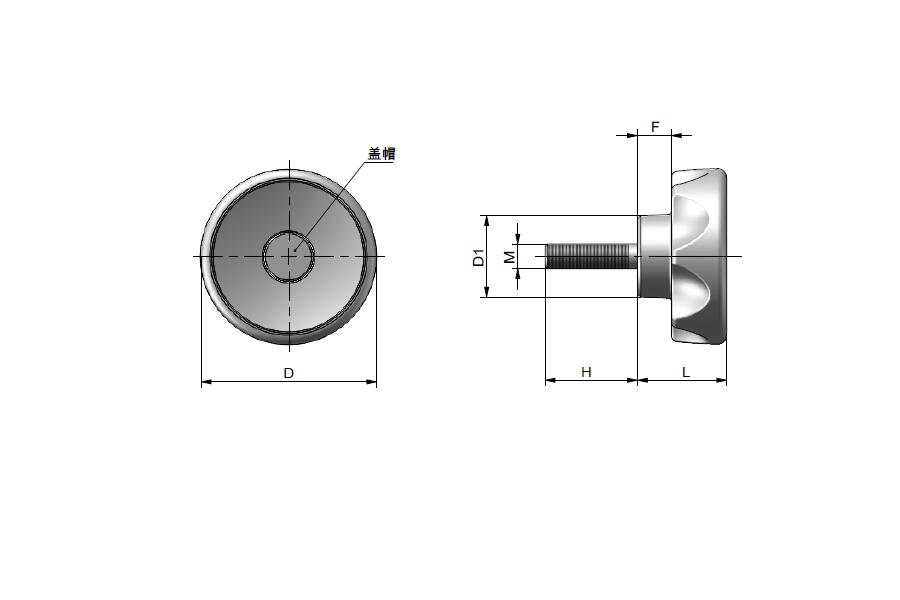

| model | material quality | Diameter D  | D1 | M | F | Height H | characteristic | Weight (g) | 3D | Purchasing | |||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| select | Reset | download | select | ||||||||||
| T79-D57-M8-20 | Polyamide (PA) | 57 | 26 | M8 | 11 | 20 | screw | 1 | download | ||||
| T79-D57-M8-30 | Polyamide (PA) | 57 | 26 | M8 | 11 | 30 | screw | 1 | download | ||||
| T79-D57-M8-40 | Polyamide (PA) | 57 | 26 | M8 | 11 | 40 | screw | 1 | download | ||||
| T79-D45-M8-20 | Polyamide (PA) | 45 | 21 | M8 | 8.5 | 20 | screw | 1 | download | ||||
| T79-D45-M8-30 | Polyamide (PA) | 45 | 21 | M8 | 8.5 | 30 | screw | 1 | download | ||||
| T79-D70-M10-30 | Polyamide (PA) | 70 | 32.5 | M10 | 13.5 | 30 | screw | 1 | download | ||||
| T79-D70-M10-40 | Polyamide (PA) | 70 | 32.5 | M10 | 13.5 | 40 | screw | 1 | download | ||||
| T79-D70-M12-40 | Polyamide (PA) | 70 | 32.5 | M12 | 13.5 | 40 | screw | 1 | download | ||||
| T79-D70-M12-50 | Polyamide (PA) | 70 | 32.5 | M12 | 13.5 | 50 | screw | 1 | download |
Black, matte finish
The front of the knob is slightly concave, and there is a finger gripping area below, which can obtain large torque with small force
