Triangle arrow nut knob拉手,搭扣,旋钮天甲工业

T66

Triangle arrow nut knob

Polyamide (PA)

purpose：Triangle arrow nut knob

model Check the box

- + individual

Total price (before tax):5.3*100=530.00element

total:560.00element

communication

quantity	price
1-4	16.8element
50+	13.6element

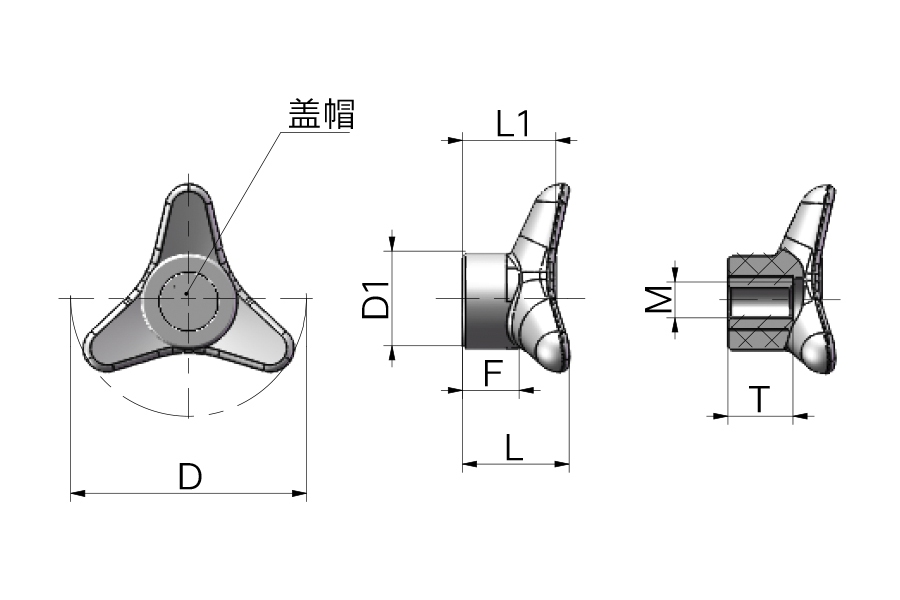

Product dimension diagram

Product dimensions and attributes

	model	material quality	Diameter D	D1	M	T	F	characteristic	L1	Weight (g)	3D	Purchasing
select	Reset										download	select
	T66-D64-M10	Polyamide (PA)	64	25	M10	18	12	Nut	25	1	download	buy
	T66-D80-M10	Polyamide (PA)	80	32	M10	22	15	Nut	32	1	download	buy
	T66-D80-M12	Polyamide (PA)	80	32	M12	22	15	Nut	32	1	download	buy
	T66-D96-M16	Polyamide (PA)	96	38	M16	28	18	Nut	28	1	download	buy

characteristic

Black, matte finish

Copper hub: with threaded through-hole

Cap: detachable

For occasions with high work intensity, external objects can be borrowed to tighten in one step

Services available

1. Customized non-standard length 2. Optional screws 3. Ultrasonic cleaning and dust-free packaging
