Foldable double width handwheel

T411

Foldable double width handwheel

PF

purpose:Foldable double width handwheel

sample book CAD

model Check the box

- + individual

Total price (before tax):5.3*100=530.00element

total:560.00element

communication

quantity price
1-4 16.8element
50+ 13.6element

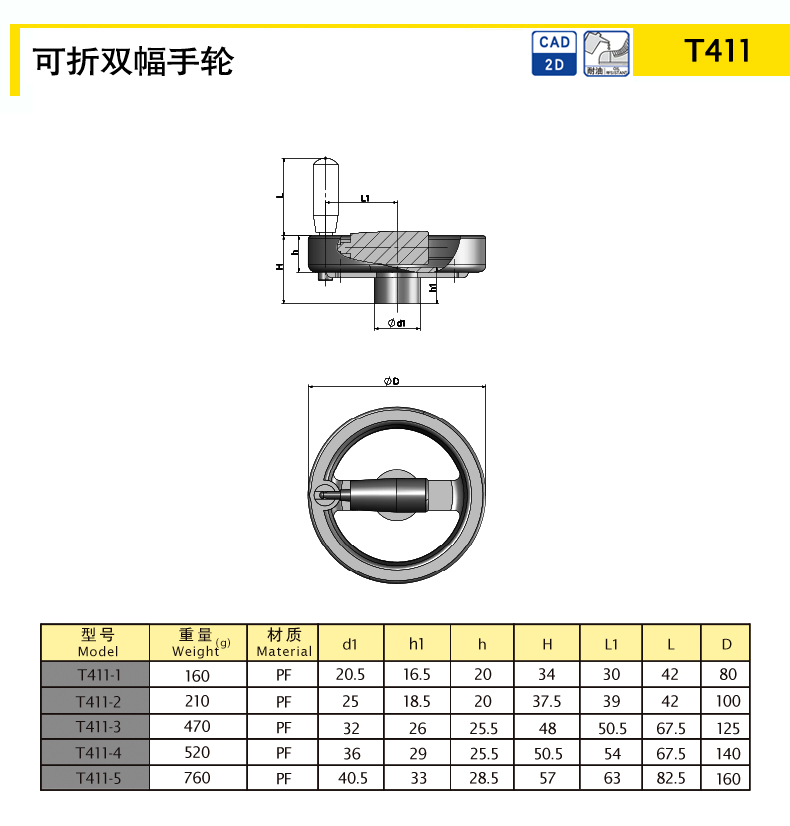

Product dimension diagram
Product dimensions and attributes
  model
Weight (g) L1 L1 H H d1 d1 h D D L L h1 h1
3D Purchasing
select Reset
download select
T411-1
160 30 34 20.5 20 80 42 16.5
download
T411-2
210.01 39 37.5 25 20 100 42 18.5
download
T411-3
470.01 50.5 48 32 25.5 125 67.5 26
download
T411-4
528.01 54 50.5 36 25.5 140 67.5 29
download
T411-5
757.01 63 57 40.5 28.5 160 82.5 33
download
characteristic

Chemical corrosion resistance and high temperature resistance

Foldable handle, easy to operate, does not take up space

Services available
1. Customized non-standard length 2 Optional screws 3. Ultrasonic cleaning and dust-free packaging
Suggested products for use
产品名称
Foldable double width handwheel
免费下载CAD图纸

更多信息

如有更多技术咨询,请致电
0535-6217008-801
