Universal leveling feet拉手,搭扣,旋钮天甲工业

R03

Universal leveling feet

Stainless steelSUS304

purpose：Universal leveling feet

sample book CAD

model Check the box

- + individual

Get a quote

Total price (before tax):5.3*100=530.00element

total:560.00element

Order Now

communication

quantity	price
1-4	16.8element
50+	13.6element

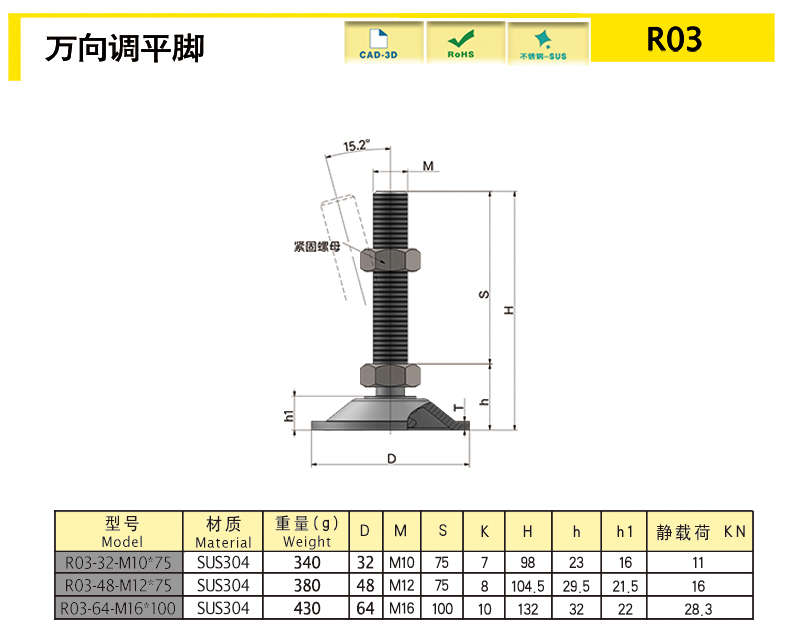

Product dimension diagram

Product dimensions and attributes

	model	material quality	Diameter D	M	S	K	H	h	h1	Weight (g)	Static load (KN)	3D	Purchasing
select	Reset											download	select
	R03B-32-M10-75	SUS304	32	M10	75	7	98	23	16	1	11	download	buy
	R03B-48-M12-75	SUS304	48	M12	75	8	104.5	29.5	21.5	1	16	download	buy
	R03B-64-M16-100	SUS304	64	M16	100	10	132	32	22	1	28.3	download	buy

characteristic

Extremely smooth screw, quick installation.
The screw provides 15 degree universal adjustment and is releasedAngle tolerance to ensure the smoothness of machine equipmentBetter.

Services available

1. Customized non-standard length 2. Optional screws 3. Ultrasonic cleaning and dust-free packaging
