Flatten feet

R19

Flatten feet

purpose:Food machinery, packaging machinery, testing instruments, medical equipment, etc

sample book CAD

model Check the box

- + individual

Total price (before tax):5.3*100=530.00element

total:560.00element

communication

quantity price
1-4 16.8element
50+ 13.6element

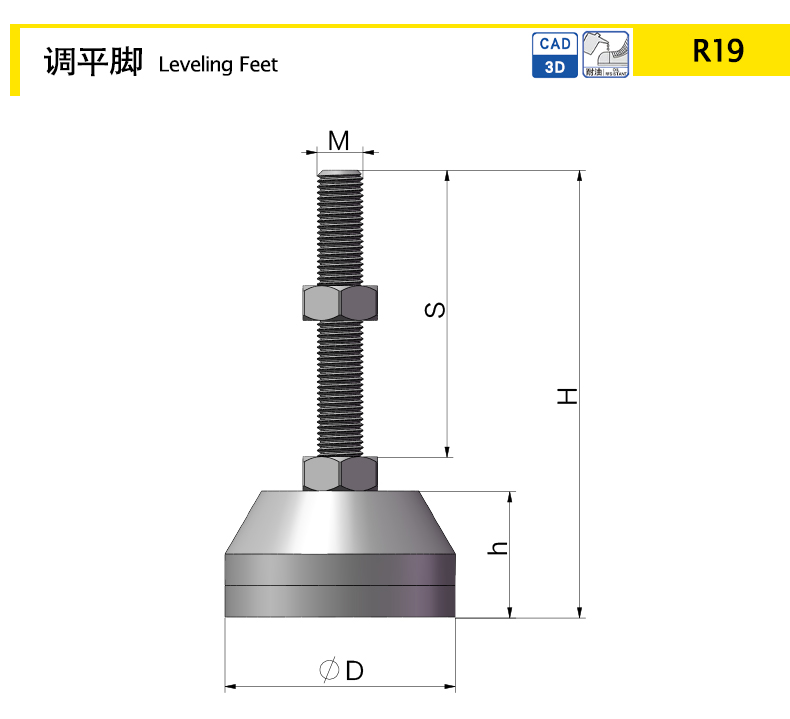

Product dimension diagram
Product dimensions and attributes
  model
material quality Diameter D M S H h Weight (g) Static load (KN)
3D Purchasing
select Reset
download select
R19-80-M16-80-Zn
S45C 80 M16 80 120 30 / 12.7
download
R19-80-M16-100-Zn
S45C 80 M16 100 140 30 / 12.7
download
R19-80-M16-120-Zn
S45C 80 M16 120 160 30 / 12.7
download
R19-80-M16-150-Zn
S45C 80 M16 150 190 30 / 12.7
download
R19-80-M16-200-Zn
S45C 80 M16 200 240 30 / 12.7
download
R19-80-M20-100-Zn
S45C 80 M20 100 140 30 / 15.6
download
R19-80-M20-120-Zn
S45C 80 M20 120 160 30 / 15.6
download
R19-80-M20-150-Zn
S45C 80 M20 150 190 30 / 15.6
download
R19-80-M20-200-Zn
S45C 80 M20 200 240 30 / 15.6
download
R19-80-M20-250-Zn
S45C 80 M20 250 290 30 / 15.6
download
R19-100-M16-100-Zn
S45C 100 M16 100 140 30 / 13.2
download
R19-100-M16-120-Zn
S45C 100 M16 120 160 30 / 13.2
download
R19-100-M16-150-Zn
S45C 100 M16 150 190 30 / 13.2
download
R19-100-M16-200-Zn
S45C 100 M16 200 240 30 / 13.2
download
R19-100-M20-100-Zn
S45C 100 M20 100 140 30 / 19.5
download
R19-100-M20-120-Zn
S45C 100 M20 120 160 30 / 19.5
download
R19-100-M20-150-Zn
S45C 100 M20 150 190 30 / 19.5
download
R19-100-M20-200-Zn
S45C 100 M20 200 240 30 / 19.5
download
R19-100-M22-120-Zn
S45C 100 M22 120 166 30 / 19.5
download
R19-100-M22-150-Zn
S45C 100 M22 150 196 30 / 19.5
download
R19-100-M24-100-Zn
S45C 100 M24 100 141 30 / 21.5
download
R19-100-M24-120-Zn
S45C 100 M24 120 161 30 / 21.5
download
R19-100-M24-150-Zn
S45C 100 M24 150 191 30 / 21.5
download
R19-120-M20-150-Zn
S45C 120 M20 150 192 32 / 19.5
download
R19-120-M20-200-Zn
S45C 120 M20 200 242 32 / 19.5
download
R19-120-M24-100-Zn
S45C 120 M24 100 143 32 / 29.3
download
R19-120-M24-120-Zn
S45C 120 M24 120 163 32 / 29.3
download
R19-120-M24-150-Zn
S45C 120 M24 150 193 32 / 29.3
download
R19-120-M24-200-Zn
S45C 120 M24 200 243 32 / 29.3
download
R19-120-M30-150-Zn
S45C 120 M30 150 198 32 / 37.1
download
R19-120-M30-200-Zn
S45C 120 M30 200 248 32 / 37.1
download
R19-120-M30-250-Zn
S45C 120 M30 250 298 32 / 37.1
download
R19-150-M20-100-Zn
S45C 150 M20 100 142 32 / 20.5
download
R19-150-M20-120-Zn
S45C 150 M20 120 162 32 / 20.5
download
R19-150-M20-150-Zn
S45C 150 M20 150 192 32 / 20.5
download
R19-150-M20-200-Zn
S45C 150 M20 200 242 32 / 20.5
download
R19-150-M24-100-Zn
S45C 150 M24 100 143 32 / 34.2
download
R19-150-M24-120-Zn
S45C 150 M24 120 163 32 / 34.2
download
R19-150-M24-150-Zn
S45C 150 M24 150 193 32 / 34.2
download
R19-150-M24-200-Zn
S45C 150 M24 200 243 32 / 34.2
download
R19-150-M30-100-Zn
S45C 150 M30 100 148 32 / 39.1
download
R19-150-M30-120-Zn
S45C 150 M30 120 168 32 / 39.1
download
R19-150-M30-150-Zn
S45C 150 M30 150 198 32 / 39.1
download
R19-150-M30-200-Zn
S45C 150 M30 200 248 32 / 39.1
download
R19-150-M30-250-Zn
S45C 150 M30 250 298 32 / 39.1
download
R19-80-M16-80-Cr
S45C 80 M16 80 120 30 / 12.7
download
R19-80-M16-100-Cr
S45C 80 M16 100 140 30 / 12.7
download
R19-80-M16-120-Cr
S45C 80 M16 120 160 30 / 12.7
download
R19-80-M16-150-Cr
S45C 80 M16 150 190 30 / 12.7
download
R19-80-M16-200-Cr
S45C 80 M16 200 240 30 / 12.7
download
R19-80-M20-100-Cr
S45C 80 M20 100 140 30 / 15.6
download
R19-80-M20-120-Cr
S45C 80 M20 120 160 30 / 15.6
download
R19-80-M20-150-Cr
S45C 80 M20 150 190 30 / 15.6
download
R19-80-M20-200-Cr
S45C 80 M20 200 240 30 / 15.6
download
R19-80-M20-250-Cr
S45C 80 M20 250 290 30 / 15.6
download
R19-100-M16-100-Cr
S45C 100 M16 100 140 30 / 13.2
download
R19-100-M16-120-Cr
S45C 100 M16 120 160 30 / 13.2
download
R19-100-M16-150-Cr
S45C 100 M16 150 190 30 / 13.2
download
R19-100-M16-200-Cr
S45C 100 M16 200 240 30 / 13.2
download
R19-100-M20-100-Cr
S45C 100 M20 100 140 30 / 19.5
download
R19-100-M20-120-Cr
S45C 100 M20 120 160 30 / 19.5
download
R19-100-M20-150-Cr
S45C 100 M20 150 190 30 / 19.5
download
R19-100-M20-200-Cr
S45C 100 M20 200 240 30 / 19.5
download
R19-100-M22-120-Cr
S45C 100 M22 120 166 30 / 19.5
download
R19-100-M22-150-Cr
S45C 100 M22 150 196 30 / 19.5
download
R19-100-M24-100-Cr
S45C 100 M24 100 141 30 / 21.5
download
R19-100-M24-120-Cr
S45C 100 M24 120 161 30 / 21.5
download
R19-100-M24-150-Cr
S45C 100 M24 150 191 30 / 21.5
download
R19-120-M20-150-Cr
S45C 120 M20 150 192 32 / 19.5
download
R19-120-M20-200-Cr
S45C 120 M20 200 242 32 / 19.5
download
R19-120-M24-100-Cr
S45C 120 M24 100 143 32 / 29.3
download
R19-120-M24-120-Cr
S45C 120 M24 120 163 32 / 29.3
download
R19-120-M24-150-Cr
S45C 120 M24 150 193 32 / 29.3
download
R19-120-M24-200-Cr
S45C 120 M24 200 243 32 / 29.3
download
R19-120-M30-150-Cr
S45C 120 M30 150 198 32 / 37.1
download
R19-120-M30-200-Cr
S45C 120 M30 200 248 32 / 37.1
download
R19-120-M30-250-Cr
S45C 120 M30 250 298 32 / 37.1
download
R19-150-M20-100-Cr
S45C 150 M20 100 142 32 / 20.5
download
R19-150-M20-120-Cr
S45C 150 M20 120 162 32 / 20.5
download
R19-150-M20-150-Cr
S45C 150 M20 150 192 32 / 20.5
download
R19-150-M20-200-Cr
S45C 150 M20 200 242 32 / 20.5
download
R19-150-M24-100-Cr
S45C 150 M24 100 143 32 / 34.2
download
R19-150-M24-120-Cr
S45C 150 M24 120 163 32 / 34.2
download
R19-150-M24-150-Cr
S45C 150 M24 150 193 32 / 34.2
download
R19-150-M24-200-Cr
S45C 150 M24 200 243 32 / 34.2
download
R19-150-M30-100-Cr
S45C 150 M30 100 148 32 / 39.1
download
R19-150-M30-120-Cr
S45C 150 M30 120 168 32 / 39.1
download
R19-150-M30-150-Cr
S45C 150 M30 150 198 32 / 39.1
download
R19-150-M30-200-Cr
S45C 150 M30 200 248 32 / 39.1
download
R19-150-M30-250-Cr
S45C 150 M30 250 298 32 / 39.1
download
R19-80-M16-80-BK
S45C 80 M16 80 120 30 / 12.7
download
R19-80-M16-100-BK
S45C 80 M16 100 140 30 / 12.7
download
R19-80-M16-120-BK
S45C 80 M16 120 160 30 / 12.7
download
R19-80-M16-150-BK
S45C 80 M16 150 190 30 / 12.7
download
R19-80-M16-200-BK
S45C 80 M16 200 240 30 / 12.7
download
R19-80-M20-100-BK
S45C 80 M20 100 140 30 / 15.6
download
R19-80-M20-120-BK
S45C 80 M20 120 160 30 / 15.6
download
R19-80-M20-150-BK
S45C 80 M20 150 190 30 / 15.6
download
R19-80-M20-200-BK
S45C 80 M20 200 240 30 / 15.6
download
R19-80-M20-250-BK
S45C 80 M20 250 290 30 / 15.6
download
R19-100-M16-100-BK
S45C 100 M16 100 140 30 / 13.2
download
R19-100-M16-120-BK
S45C 100 M16 120 160 30 / 13.2
download
R19-100-M16-150-BK
S45C 100 M16 150 190 30 / 13.2
download
R19-100-M16-200-BK
S45C 100 M16 200 240 30 / 13.2
download
R19-100-M20-100-BK
S45C 100 M20 100 140 30 / 19.5
download
R19-100-M20-120-BK
S45C 100 M20 120 160 30 / 19.5
download
R19-100-M20-150-BK
S45C 100 M20 150 190 30 / 19.5
download
R19-100-M20-200-BK
S45C 100 M20 200 240 30 / 19.5
download
R19-100-M22-120-BK
S45C 100 M22 120 166 30 / 19.5
download
R19-100-M22-150-BK
S45C 100 M22 150 196 30 / 19.5
download
R19-100-M24-100-BK
S45C 100 M24 100 141 30 / 21.5
download
R19-100-M24-120-BK
S45C 100 M24 120 161 30 / 21.5
download
R19-100-M24-150-BK
S45C 100 M24 150 191 30 / 21.5
download
R19-120-M20-150-BK
S45C 120 M20 150 192 32 / 19.5
download
R19-120-M20-200-BK
S45C 120 M20 200 242 32 / 19.5
download
R19-120-M24-100-BK
S45C 120 M24 100 143 32 / 29.3
download
R19-120-M24-120-BK
S45C 120 M24 120 163 32 / 29.3
download
R19-120-M24-150-BK
S45C 120 M24 150 193 32 / 29.3
download
R19-120-M24-200-BK
S45C 120 M24 200 243 32 / 29.3
download
R19-120-M30-150-BK
S45C 120 M30 150 198 32 / 37.1
download
R19-120-M30-200-BK
S45C 120 M30 200 248 32 / 37.1
download
R19-120-M30-250-BK
S45C 120 M30 250 298 32 / 37.1
download
R19-150-M20-100-BK
S45C 150 M20 100 142 32 / 20.5
download
R19-150-M20-120-BK
S45C 150 M20 120 162 32 / 20.5
download
R19-150-M20-150-BK
S45C 150 M20 150 192 32 / 20.5
download
R19-150-M20-200-BK
S45C 150 M20 200 242 32 / 20.5
download
R19-150-M24-100-BK
S45C 150 M24 100 143 32 / 34.2
download
R19-150-M24-120-BK
S45C 150 M24 120 163 32 / 34.2
download
R19-150-M24-150-BK
S45C 150 M24 150 193 32 / 34.2
download
R19-150-M24-200-BK
S45C 150 M24 200 243 32 / 34.2
download
R19-150-M30-100-BK
S45C 150 M30 100 148 32 / 39.1
download
R19-150-M30-120-BK
S45C 150 M30 120 168 32 / 39.1
download
R19-150-M30-150-BK
S45C 150 M30 150 198 32 / 39.1
download
R19-150-M30-200-BK
S45C 150 M30 200 248 32 / 39.1
download
R19-150-M30-250-BK
S45C 150 M30 250 298 32 / 39.1
download
R19B-80-M16-80
SUS 304 80 M16 80 120 30 / 12.7
download
R19B-80-M16-100
SUS 304 80 M16 100 140 30 / 12.7
download
R19B-80-M16-120
SUS 304 80 M16 120 160 30 / 12.7
download
R19B-80-M16-150
SUS 304 80 M16 150 190 30 / 12.7
download
R19B-80-M16-200
SUS 304 80 M16 200 240 30 / 12.7
download
R19B-80-M20-100
SUS 304 80 M20 100 140 30 / 15.6
download
R19B-80-M20-120
SUS 304 80 M20 120 160 30 / 15.6
download
R19B-80-M20-150
SUS 304 80 M20 150 190 30 / 15.6
download
R19B-80-M20-200
SUS 304 80 M20 200 240 30 / 15.6
download
R19B-80-M20-250
SUS 304 80 M20 250 290 30 / 15.6
download
R19B-100-M16-100
SUS 304 100 M16 100 140 30 / 13.2
download
R19B-100-M16-120
SUS 304 100 M16 120 160 30 / 13.2
download
R19B-100-M16-150
SUS 304 100 M16 150 190 30 / 13.2
download
R19B-100-M16-200
SUS 304 100 M16 200 240 30 / 13.2
download
R19B-100-M20-100
SUS 304 100 M20 100 140 30 / 19.5
download
R19B-100-M20-120
SUS 304 100 M20 120 160 30 / 19.5
download
R19B-100-M20-150
SUS 304 100 M20 150 190 30 / 19.5
download
R19B-100-M20-200
SUS 304 100 M20 200 240 30 / 19.5
download
R19B-100-M22-120
SUS 304 100 M22 120 166 30 / 19.5
download
R19B-100-M22-150
SUS 304 100 M22 150 196 30 / 19.5
download
R19B-100-M24-100
SUS 304 100 M24 100 141 30 / 21.5
download
R19B-100-M24-120
SUS 304 100 M24 120 161 30 / 21.5
download
R19B-100-M24-150
SUS 304 100 M24 150 191 30 / 21.5
download
R19B-120-M20-150
SUS 304 120 M20 150 192 32 / 19.5
download
R19B-120-M20-200
SUS 304 120 M20 200 242 32 / 19.5
download
R19B-120-M24-100
SUS 304 120 M24 100 143 32 / 29.3
download
R19B-120-M24-120
SUS 304 120 M24 120 163 32 / 29.3
download
R19B-120-M24-150
SUS 304 120 M24 150 193 32 / 29.3
download
R19B-120-M24-200
SUS 304 120 M24 200 243 32 / 29.3
download
R19B-120-M30-150
SUS 304 120 M30 150 198 32 / 37.1
download
R19B-120-M30-200
SUS 304 120 M30 200 248 32 / 37.1
download
R19B-120-M30-250
SUS 304 120 M30 250 298 32 / 37.1
download
R19B-150-M20-100
SUS 304 150 M20 100 142 32 / 20.5
download
R19B-150-M20-120
SUS 304 150 M20 120 162 32 / 20.5
download
R19B-150-M20-150
SUS 304 150 M20 150 192 32 / 20.5
download
R19B-150-M20-200
SUS 304 150 M20 200 242 32 / 20.5
download
R19B-150-M24-100
SUS 304 150 M24 100 143 32 / 34.2
download
R19B-150-M24-120
SUS 304 150 M24 120 163 32 / 34.2
download
R19B-150-M24-150
SUS 304 150 M24 150 193 32 / 34.2
download
R19B-150-M24-200
SUS 304 150 M24 200 243 32 / 34.2
download
R19B-150-M30-100
SUS 304 150 M30 100 148 32 / 39.1
download
R19B-150-M30-120
SUS 304 150 M30 120 168 32 / 39.1
download
R19B-150-M30-150
SUS 304 150 M30 150 198 32 / 39.1
download
R19B-150-M30-200
SUS 304 150 M30 200 248 32 / 39.1
download
R19B-150-M30-250
SUS 304 150 M30 250 298 32 / 39.1
download
characteristic

Overloaded heavy-duty foot cup 翻译失败:(无法获取翻译结果:无效的响应或网络问题。)

Heavy duty metal+rubber base 翻译失败:(无法获取翻译结果:无效的响应或网络问题。)

Zn: Galvanized 翻译失败:(无法获取翻译结果:无效的响应或网络问题。)

Cr: Chrome plating 翻译失败:(无法获取翻译结果:无效的响应或网络问题。)

BK: Electrophoretic Black 翻译失败:(无法获取翻译结果:无效的响应或网络问题。)

Disk seat and screw: Steel S45C/SUS304 翻译失败:(无法获取翻译结果:无效的响应或网络问题。)

Pad: PCV material, flame retardant, insulating, rust proof, alkali resistant, wear-resistant, oil resistant 翻译失败:(无法获取翻译结果:无效的响应或网络问题。)
Services available
产品名称
Flatten feet
免费下载CAD图纸

更多信息

如有更多技术咨询,请致电
0535-6217008-801
weixin
weixin

tj  TANJA INDUSTRIAL (SHANDONG) CO.,LTD Address: No. 1389 Kaiming Road, Economic Development Zone, Laizhou City, Shandong Province Phone:(+86)0535-2277515
tj  TANJA INDUSTRIAL (SHANDONG) CO.,LTD
tj  Address: No. 1389 Kaiming Road, Economic Development Zone, Laizhou City, Shandong Province
tj  Phone:(+86)0535-2277515
