R21
Flatten feet
purpose：Food machinery, packaging machinery, testing instruments, medical equipment, etc
model Check the box
Total price (before tax):5.3*100=530.00element
total:560.00element
communication
| quantity | price |
|---|---|
| 1-4 | 16.8element |
| 50+ | 13.6element |

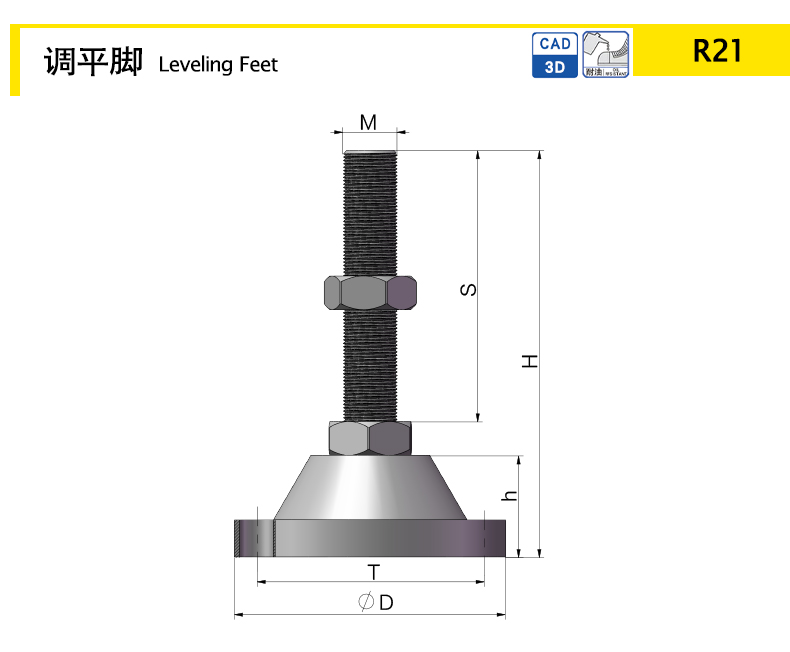

| model | material quality | Diameter D | M | S | H | h | Weight (g) | Static load (KN) | 3D | Purchasing | |||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| select | Reset | download | select | ||||||||||
| R21-80-M16-80-Zn | S45C | 80 | M16 | 80 | 110 | 20 | / | 12.7 | download | ||||
| R21-80-M16-100-Zn | S45C | 80 | M16 | 100 | 130 | 20 | / | 12.7 | download | ||||
| R21-80-M16-120-Zn | S45C | 80 | M16 | 120 | 150 | 20 | / | 12.7 | download | ||||
| R21-80-M16-150-Zn | S45C | 80 | M16 | 150 | 180 | 20 | / | 12.7 | download | ||||
| R21-80-M16-200-Zn | S45C | 80 | M16 | 200 | 230 | 20 | / | 12.7 | download | ||||
| R21-80-M20-100-Zn | S45C | 80 | M20 | 100 | 130 | 20 | / | 15.6 | download | ||||
| R21-80-M20-120-Zn | S45C | 80 | M20 | 120 | 150 | 20 | / | 15.6 | download | ||||
| R21-80-M20-150-Zn | S45C | 80 | M20 | 150 | 180 | 20 | / | 15.6 | download | ||||
| R21-80-M20-200-Zn | S45C | 80 | M20 | 200 | 230 | 20 | / | 15.6 | download | ||||
| R21-80-M20-250-Zn | S45C | 80 | M20 | 250 | 280 | 20 | / | 15.6 | download | ||||
| R21-100-M16-100-Zn | S45C | 100 | M16 | 100 | 130 | 20 | / | 13.2 | download | ||||
| R21-100-M16-120-Zn | S45C | 100 | M16 | 120 | 150 | 20 | / | 13.2 | download | ||||
| R21-100-M16-150-Zn | S45C | 100 | M16 | 150 | 180 | 20 | / | 13.2 | download | ||||
| R21-100-M16-200-Zn | S45C | 100 | M16 | 200 | 230 | 20 | / | 13.2 | download | ||||
| R21-100-M20-100-Zn | S45C | 100 | M20 | 100 | 130 | 20 | / | 19.5 | download | ||||
| R21-100-M20-120-Zn | S45C | 100 | M20 | 120 | 150 | 20 | / | 19.5 | download | ||||
| R21-100-M20-150-Zn | S45C | 100 | M20 | 150 | 180 | 20 | / | 19.5 | download | ||||
| R21-100-M20-200-Zn | S45C | 100 | M20 | 200 | 230 | 20 | / | 19.5 | download | ||||
| R21-100-M22-120-Zn | S45C | 100 | M22 | 120 | 156 | 20 | / | 19.5 | download | ||||
| R21-100-M22-150-Zn | S45C | 100 | M22 | 150 | 186 | 20 | / | 19.5 | download | ||||
| R21-100-M24-100-Zn | S45C | 100 | M24 | 100 | 131 | 20 | / | 21.5 | download | ||||
| R21-100-M24-120-Zn | S45C | 100 | M24 | 120 | 151 | 20 | / | 21.5 | download | ||||
| R21-100-M24-150-Zn | S45C | 100 | M24 | 150 | 181 | 20 | / | 21.5 | download | ||||
| R21-120-M20-150-Zn | S45C | 120 | M20 | 150 | 182 | 22 | / | 19.5 | download | ||||
| R21-120-M20-200-Zn | S45C | 120 | M20 | 200 | 232 | 22 | / | 19.5 | download | ||||
| R21-120-M24-100-Zn | S45C | 120 | M24 | 100 | 133 | 22 | / | 29.3 | download | ||||
| R21-120-M24-120-Zn | S45C | 120 | M24 | 120 | 153 | 22 | / | 29.3 | download | ||||
| R21-120-M24-150-Zn | S45C | 120 | M24 | 150 | 183 | 22 | / | 29.3 | download | ||||
| R21-120-M24-200-Zn | S45C | 120 | M24 | 200 | 233 | 22 | / | 29.3 | download | ||||
| R21-120-M30-150-Zn | S45C | 120 | M30 | 150 | 188 | 22 | / | 37.1 | download | ||||
| R21-120-M30-200-Zn | S45C | 120 | M30 | 200 | 238 | 22 | / | 37.1 | download | ||||
| R21-120-M30-250-Zn | S45C | 120 | M30 | 250 | 288 | 22 | / | 37.1 | download | ||||
| R21-150-M20-100-Zn | S45C | 150 | M20 | 100 | 132 | 22 | / | 20.5 | download | ||||
| R21-150-M20-120-Zn | S45C | 150 | M20 | 120 | 152 | 22 | / | 20.5 | download | ||||
| R21-150-M20-150-Zn | S45C | 150 | M20 | 150 | 182 | 22 | / | 20.5 | download | ||||
| R21-150-M20-200-Zn | S45C | 150 | M20 | 200 | 232 | 22 | / | 20.5 | download | ||||
| R21-150-M24-100-Zn | S45C | 150 | M24 | 100 | 133 | 22 | / | 34.2 | download | ||||
| R21-150-M24-120-Zn | S45C | 150 | M24 | 120 | 153 | 22 | / | 34.2 | download | ||||
| R21-150-M24-150-Zn | S45C | 150 | M24 | 150 | 183 | 22 | / | 34.2 | download | ||||
| R21-150-M24-200-Zn | S45C | 150 | M24 | 200 | 233 | 22 | / | 34.2 | download | ||||
| R21-150-M30-100-Zn | S45C | 150 | M30 | 100 | 138 | 22 | / | 39.1 | download | ||||
| R21-150-M30-120-Zn | S45C | 150 | M30 | 120 | 158 | 22 | / | 39.1 | download | ||||
| R21-150-M30-150-Zn | S45C | 150 | M30 | 150 | 188 | 22 | / | 39.1 | download | ||||
| R21-150-M30-200-Zn | S45C | 150 | M30 | 200 | 238 | 22 | / | 39.1 | download | ||||
| R21-150-M30-250-Zn | S45C | 150 | M30 | 250 | 288 | 22 | / | 39.1 | download | ||||
| R21-80-M16-80-Cr | S45C | 80 | M16 | 80 | 110 | 20 | / | 12.7 | download | ||||
| R21-80-M16-100-Cr | S45C | 80 | M16 | 100 | 130 | 20 | / | 12.7 | download | ||||
| R21-80-M16-120-Cr | S45C | 80 | M16 | 120 | 150 | 20 | / | 12.7 | download | ||||
| R21-80-M16-150-Cr | S45C | 80 | M16 | 150 | 180 | 20 | / | 12.7 | download | ||||
| R21-80-M16-200-Cr | S45C | 80 | M16 | 200 | 230 | 20 | / | 12.7 | download | ||||
| R21-80-M20-100-Cr | S45C | 80 | M20 | 100 | 130 | 20 | / | 15.6 | download | ||||
| R21-80-M20-120-Cr | S45C | 80 | M20 | 120 | 150 | 20 | / | 15.6 | download | ||||
| R21-80-M20-150-Cr | S45C | 80 | M20 | 150 | 180 | 20 | / | 15.6 | download | ||||
| R21-80-M20-200-Cr | S45C | 80 | M20 | 200 | 230 | 20 | / | 15.6 | download | ||||
| R21-80-M20-250-Cr | S45C | 80 | M20 | 250 | 280 | 20 | / | 15.6 | download | ||||
| R21-100-M16-100-Cr | S45C | 100 | M16 | 100 | 131 | 20 | / | 13.2 | download | ||||
| R21-100-M16-120-Cr | S45C | 100 | M16 | 120 | 151 | 20 | / | 13.2 | download | ||||
| R21-100-M16-150-Cr | S45C | 100 | M16 | 150 | 181 | 20 | / | 13.2 | download | ||||
| R21-100-M16-200-Cr | S45C | 100 | M16 | 200 | 231 | 20 | / | 13.2 | download | ||||
| R21-100-M20-100-Cr | S45C | 100 | M20 | 100 | 130 | 20 | / | 19.5 | download | ||||
| R21-100-M20-120-Cr | S45C | 100 | M20 | 120 | 150 | 20 | / | 19.5 | download | ||||
| R21-100-M20-150-Cr | S45C | 100 | M20 | 150 | 180 | 20 | / | 19.5 | download | ||||
| R21-100-M20-200-Cr | S45C | 100 | M20 | 200 | 230 | 20 | / | 19.5 | download | ||||
| R21-100-M22-120-Cr | S45C | 100 | M22 | 120 | 150 | 20 | / | 19.5 | download | ||||
| R21-100-M22-150-Cr | S45C | 100 | M22 | 150 | 180 | 20 | / | 19.5 | download | ||||
| R21-100-M24-100-Cr | S45C | 100 | M24 | 100 | 130 | 20 | / | 21.5 | download | ||||
| R21-100-M24-120-Cr | S45C | 100 | M24 | 120 | 150 | 20 | / | 21.5 | download | ||||
| R21-100-M24-150-Cr | S45C | 100 | M24 | 150 | 186 | 20 | / | 21.5 | download | ||||
| R21-120-M20-150-Cr | S45C | 120 | M20 | 150 | 188 | 22 | / | 19.5 | download | ||||
| R21-120-M20-200-Cr | S45C | 120 | M20 | 200 | 233 | 22 | / | 19.5 | download | ||||
| R21-120-M24-100-Cr | S45C | 120 | M24 | 100 | 133 | 22 | / | 29.3 | download | ||||
| R21-120-M24-120-Cr | S45C | 120 | M24 | 120 | 153 | 22 | / | 29.3 | download | ||||
| R21-120-M24-150-Cr | S45C | 120 | M24 | 150 | 183 | 22 | / | 29.3 | download | ||||
| R21-120-M24-200-Cr | S45C | 120 | M24 | 200 | 232 | 22 | / | 29.3 | download | ||||
| R21-120-M30-150-Cr | S45C | 120 | M30 | 150 | 182 | 22 | / | 37.1 | download | ||||
| R21-120-M30-200-Cr | S45C | 120 | M30 | 200 | 232 | 22 | / | 37.1 | download | ||||
| R21-120-M30-250-Cr | S45C | 120 | M30 | 250 | 282 | 22 | / | 37.1 | download | ||||
| R21-150-M20-100-Cr | S45C | 150 | M20 | 100 | 133 | 22 | / | 20.5 | download | ||||
| R21-150-M20-120-Cr | S45C | 150 | M20 | 120 | 153 | 22 | / | 20.5 | download | ||||
| R21-150-M20-150-Cr | S45C | 150 | M20 | 150 | 183 | 22 | / | 20.5 | download | ||||
| R21-150-M20-200-Cr | S45C | 150 | M20 | 200 | 233 | 22 | / | 20.5 | download | ||||
| R21-150-M24-100-Cr | S45C | 150 | M24 | 100 | 138 | 22 | / | 34.2 | download | ||||
| R21-150-M24-120-Cr | S45C | 150 | M24 | 120 | 158 | 22 | / | 34.2 | download | ||||
| R21-150-M24-150-Cr | S45C | 150 | M24 | 150 | 188 | 22 | / | 34.2 | download | ||||
| R21-150-M24-200-Cr | S45C | 150 | M24 | 200 | 232 | 22 | / | 34.2 | download | ||||
| R21-150-M30-100-Cr | S45C | 150 | M30 | 100 | 132 | 22 | / | 39.1 | download | ||||
| R21-150-M30-120-Cr | S45C | 150 | M30 | 120 | 152 | 22 | / | 39.1 | download | ||||
| R21-150-M30-150-Cr | S45C | 150 | M30 | 150 | 182 | 22 | / | 39.1 | download | ||||
| R21-150-M30-200-Cr | S45C | 150 | M30 | 200 | 233 | 22 | / | 39.1 | download | ||||
| R21-150-M30-250-Cr | S45C | 150 | M30 | 250 | 283 | 22 | / | 39.1 | download | ||||
| R21-80-M16-80-BK | S45C | 80 | M16 | 80 | 110 | 20 | / | 12.7 | download | ||||
| R21-80-M16-100-BK | S45C | 80 | M16 | 100 | 130 | 20 | / | 12.7 | download | ||||
| R21-80-M16-120-BK | S45C | 80 | M16 | 120 | 150 | 20 | / | 12.7 | download | ||||
| R21-80-M16-150-BK | S45C | 80 | M16 | 150 | 180 | 20 | / | 12.7 | download | ||||
| R21-80-M16-200-BK | S45C | 80 | M16 | 200 | 230 | 20 | / | 12.7 | download | ||||
| R21-80-M20-100-BK | S45C | 80 | M20 | 100 | 130 | 20 | / | 15.6 | download | ||||
| R21-80-M20-120-BK | S45C | 80 | M20 | 120 | 150 | 20 | / | 15.6 | download | ||||
| R21-80-M20-150-BK | S45C | 80 | M20 | 150 | 180 | 20 | / | 15.6 | download | ||||
| R21-80-M20-200-BK | S45C | 80 | M20 | 200 | 230 | 20 | / | 15.6 | download | ||||
| R21-80-M20-250-BK | S45C | 80 | M20 | 250 | 280 | 20 | / | 15.6 | download | ||||
| R21-100-M16-100-BK | S45C | 100 | M16 | 100 | 131 | 20 | / | 13.2 | download | ||||
| R21-100-M16-120-BK | S45C | 100 | M16 | 120 | 151 | 20 | / | 13.2 | download | ||||
| R21-100-M16-150-BK | S45C | 100 | M16 | 150 | 181 | 20 | / | 13.2 | download | ||||
| R21-100-M16-200-BK | S45C | 100 | M16 | 200 | 231 | 20 | / | 13.2 | download | ||||
| R21-100-M20-100-BK | S45C | 100 | M20 | 100 | 130 | 20 | / | 19.5 | download | ||||
| R21-100-M20-120-BK | S45C | 100 | M20 | 120 | 150 | 20 | / | 19.5 | download | ||||
| R21-100-M20-150-BK | S45C | 100 | M20 | 150 | 180 | 20 | / | 19.5 | download | ||||
| R21-100-M20-200-BK | S45C | 100 | M20 | 200 | 230 | 20 | / | 19.5 | download | ||||
| R21-100-M22-120-BK | S45C | 100 | M22 | 120 | 150 | 20 | / | 19.5 | download | ||||
| R21-100-M22-150-BK | S45C | 100 | M22 | 150 | 180 | 20 | / | 19.5 | download | ||||
| R21-100-M24-100-BK | S45C | 100 | M24 | 100 | 130 | 20 | / | 21.5 | download | ||||
| R21-100-M24-120-BK | S45C | 100 | M24 | 120 | 150 | 20 | / | 21.5 | download | ||||
| R21-100-M24-150-BK | S45C | 100 | M24 | 150 | 186 | 20 | / | 21.5 | download | ||||
| R21-120-M20-150-BK | S45C | 120 | M20 | 150 | 188 | 22 | / | 19.5 | download | ||||
| R21-120-M20-200-BK | S45C | 120 | M20 | 200 | 233 | 22 | / | 19.5 | download | ||||
| R21-120-M24-100-BK | S45C | 120 | M24 | 100 | 133 | 22 | / | 29.3 | download | ||||
| R21-120-M24-120-BK | S45C | 120 | M24 | 120 | 153 | 22 | / | 29.3 | download | ||||
| R21-120-M24-150-BK | S45C | 120 | M24 | 150 | 183 | 22 | / | 29.3 | download | ||||
| R21-120-M24-200-BK | S45C | 120 | M24 | 200 | 232 | 22 | / | 29.3 | download | ||||
| R21-120-M30-150-BK | S45C | 120 | M30 | 150 | 182 | 22 | / | 37.1 | download | ||||
| R21-120-M30-200-BK | S45C | 120 | M30 | 200 | 232 | 22 | / | 37.1 | download | ||||
| R21-120-M30-250-BK | S45C | 120 | M30 | 250 | 282 | 22 | / | 37.1 | download | ||||
| R21-150-M20-100-BK | S45C | 150 | M20 | 100 | 133 | 22 | / | 20.5 | download | ||||
| R21-150-M20-120-BK | S45C | 150 | M20 | 120 | 153 | 22 | / | 20.5 | download | ||||
| R21-150-M20-150-BK | S45C | 150 | M20 | 150 | 183 | 22 | / | 20.5 | download | ||||
| R21-150-M20-200-BK | S45C | 150 | M20 | 200 | 233 | 22 | / | 20.5 | download | ||||
| R21-150-M24-100-BK | S45C | 150 | M24 | 100 | 138 | 22 | / | 34.2 | download | ||||
| R21-150-M24-120-BK | S45C | 150 | M24 | 120 | 158 | 22 | / | 34.2 | download | ||||
| R21-150-M24-150-BK | S45C | 150 | M24 | 150 | 188 | 22 | / | 34.2 | download | ||||
| R21-150-M24-200-BK | S45C | 150 | M24 | 200 | 232 | 22 | / | 34.2 | download | ||||
| R21-150-M30-100-BK | S45C | 150 | M30 | 100 | 132 | 22 | / | 39.1 | download | ||||
| R21-150-M30-120-BK | S45C | 150 | M30 | 120 | 152 | 22 | / | 39.1 | download | ||||
| R21-150-M30-150-BK | S45C | 150 | M30 | 150 | 182 | 22 | / | 39.1 | download | ||||
| R21-150-M30-200-BK | S45C | 150 | M30 | 200 | 233 | 22 | / | 39.1 | download | ||||
| R21-150-M30-250-BK | S45C | 150 | M30 | 250 | 283 | 22 | / | 39.1 | download | ||||
| R21B-80-M16-80 | SUS 304 | 80 | M16 | 80 | 110 | 20 | / | 12.7 | download | ||||
| R21B-80-M16-100 | SUS 304 | 80 | M16 | 100 | 130 | 20 | / | 12.7 | download | ||||
| R21B-80-M16-120 | SUS 304 | 80 | M16 | 120 | 150 | 20 | / | 12.7 | download | ||||
| R21B-80-M16-150 | SUS 304 | 80 | M16 | 150 | 180 | 20 | / | 12.7 | download | ||||
| R21B-80-M16-200 | SUS 304 | 80 | M16 | 200 | 230 | 20 | / | 12.7 | download | ||||
| R21B-80-M20-100 | SUS 304 | 80 | M20 | 100 | 130 | 20 | / | 15.6 | download | ||||
| R21B-80-M20-120 | SUS 304 | 80 | M20 | 120 | 150 | 20 | / | 15.6 | download | ||||
| R21B-80-M20-150 | SUS 304 | 80 | M20 | 150 | 180 | 20 | / | 15.6 | download | ||||
| R21B-80-M20-200 | SUS 304 | 80 | M20 | 200 | 230 | 20 | / | 15.6 | download | ||||
| R21B-80-M20-250 | SUS 304 | 80 | M20 | 250 | 280 | 20 | / | 15.6 | download | ||||
| R21B-100-M16-100 | SUS 304 | 100 | M16 | 100 | 131 | 20 | / | 13.2 | download | ||||
| R21B-100-M16-120 | SUS 304 | 100 | M16 | 120 | 151 | 20 | / | 13.2 | download | ||||
| R21B-100-M16-150 | SUS 304 | 100 | M16 | 150 | 181 | 20 | / | 13.2 | download | ||||
| R21B-100-M16-200 | SUS 304 | 100 | M16 | 200 | 231 | 20 | / | 13.2 | download | ||||
| R21B-100-M20-100 | SUS 304 | 100 | M20 | 100 | 130 | 20 | / | 19.5 | download | ||||
| R21B-100-M20-120 | SUS 304 | 100 | M20 | 120 | 150 | 20 | / | 19.5 | download | ||||
| R21B-100-M20-150 | SUS 304 | 100 | M20 | 150 | 180 | 20 | / | 19.5 | download | ||||
| R21B-100-M20-200 | SUS 304 | 100 | M20 | 200 | 230 | 20 | / | 19.5 | download | ||||
| R21B-100-M22-120 | SUS 304 | 100 | M22 | 120 | 150 | 20 | / | 19.5 | download | ||||
| R21B-100-M22-150 | SUS 304 | 100 | M22 | 150 | 180 | 20 | / | 19.5 | download | ||||
| R21B-100-M24-100 | SUS 304 | 100 | M24 | 100 | 130 | 20 | / | 21.5 | download | ||||
| R21B-100-M24-120 | SUS 304 | 100 | M24 | 120 | 150 | 20 | / | 21.5 | download | ||||
| R21B-100-M24-150 | SUS 304 | 100 | M24 | 150 | 186 | 20 | / | 21.5 | download | ||||
| R21B-120-M20-150 | SUS 304 | 120 | M20 | 150 | 188 | 22 | / | 19.5 | download | ||||
| R21B-120-M20-200 | SUS 304 | 120 | M20 | 200 | 233 | 22 | / | 19.5 | download | ||||
| R21B-120-M24-100 | SUS 304 | 120 | M24 | 100 | 133 | 22 | / | 29.3 | download | ||||
| R21B-120-M24-120 | SUS 304 | 120 | M24 | 120 | 153 | 22 | / | 29.3 | download | ||||
| R21B-120-M24-150 | SUS 304 | 120 | M24 | 150 | 183 | 22 | / | 29.3 | download | ||||
| R21B-120-M24-200 | SUS 304 | 120 | M24 | 200 | 232 | 22 | / | 29.3 | download | ||||
| R21B-120-M30-150 | SUS 304 | 120 | M30 | 150 | 182 | 22 | / | 37.1 | download | ||||
| R21B-120-M30-200 | SUS 304 | 120 | M30 | 200 | 232 | 22 | / | 37.1 | download | ||||
| R21B-120-M30-250 | SUS 304 | 120 | M30 | 250 | 282 | 22 | / | 37.1 | download | ||||
| R21B-150-M20-100 | SUS 304 | 150 | M20 | 100 | 133 | 22 | / | 20.5 | download | ||||
| R21B-150-M20-120 | SUS 304 | 150 | M20 | 120 | 153 | 22 | / | 20.5 | download | ||||
| R21B-150-M20-150 | SUS 304 | 150 | M20 | 150 | 183 | 22 | / | 20.5 | download | ||||
| R21B-150-M20-200 | SUS 304 | 150 | M20 | 200 | 233 | 22 | / | 20.5 | download | ||||
| R21B-150-M24-100 | SUS 304 | 150 | M24 | 100 | 138 | 22 | / | 34.2 | download | ||||
| R21B-150-M24-120 | SUS 304 | 150 | M24 | 120 | 158 | 22 | / | 34.2 | download | ||||
| R21B-150-M24-150 | SUS 304 | 150 | M24 | 150 | 188 | 22 | / | 34.2 | download | ||||
| R21B-150-M24-200 | SUS 304 | 150 | M24 | 200 | 232 | 22 | / | 34.2 | download | ||||
| R21B-150-M30-100 | SUS 304 | 150 | M30 | 100 | 132 | 22 | / | 39.1 | download | ||||
| R21B-150-M30-120 | SUS 304 | 150 | M30 | 120 | 152 | 22 | / | 39.1 | download | ||||
| R21B-150-M30-150 | SUS 304 | 150 | M30 | 150 | 182 | 22 | / | 39.1 | download | ||||
| R21B-150-M30-200 | SUS 304 | 150 | M30 | 200 | 233 | 22 | / | 39.1 | download | ||||
| R21B-150-M30-250 | SUS 304 | 150 | M30 | 250 | 283 | 22 | / | 39.1 | download |
Carbon steel heavy-duty double hole foot cup 翻译失败：（无法获取翻译结果：无效的响应或网络问题。）
All metal structure 翻译失败：（无法获取翻译结果：无效的响应或网络问题。）
Zn: Galvanized 翻译失败：（无法获取翻译结果：无效的响应或网络问题。）
Cr: Chrome plating 翻译失败：（无法获取翻译结果：无效的响应或网络问题。）
BK: Electrophoretic Black 翻译失败：（无法获取翻译结果：无效的响应或网络问题。）
Disk seat and screw: Steel S45C/SUS304 翻译失败：（无法获取翻译结果：无效的响应或网络问题。）
更多信息
如有更多技术咨询，请致电
TANJA INDUSTRIAL (SHANDONG) CO.,LTD Address: No. 1389 Kaiming Road, Economic Development Zone, Laizhou City, Shandong Province Phone:（+86）0535-2277515 TANJA INDUSTRIAL (SHANDONG) CO.,LTD
鲁ICP备13010807号-2 Copyright © 2021 TANJA INDUSTRIAL (SHANDONG) CO.,LTD . All rights reserved. Disclaimers
