R25
Flatten feet
Galvanized, chrome plated, electrophoretic black, polished
purpose：Food machinery, packaging machinery, testing instruments, medical equipment, etc
model Check the box
Total price (before tax):5.3*100=530.00element
total:560.00element
communication
| quantity | price |
|---|---|
| 1-4 | 16.8element |
| 50+ | 13.6element |

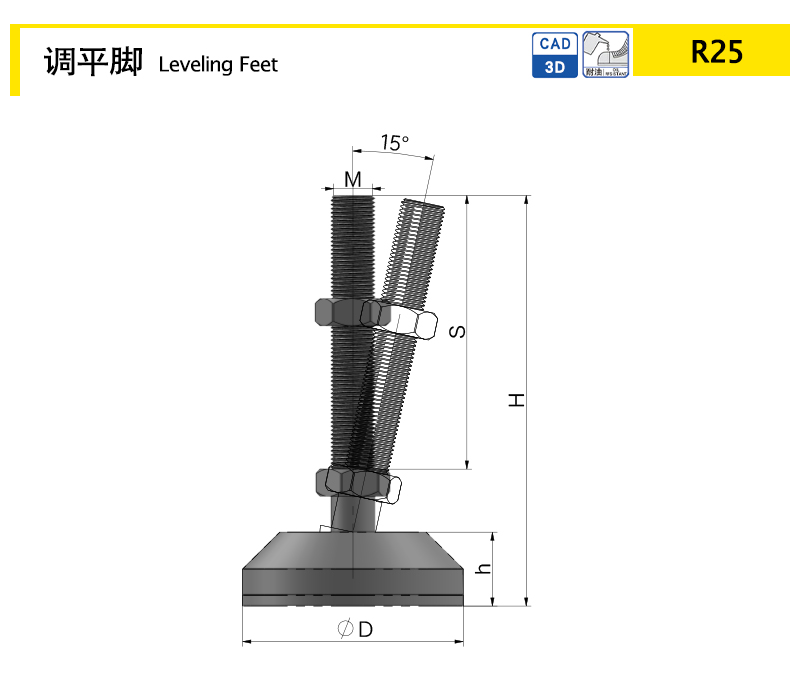

| model | material quality | Diameter D | M | S | H | h | Weight (g) | Static load (KN) | 3D | Purchasing | |||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| select | Reset | download | select | ||||||||||
| R25-80-M16-100-Zn | S45C | 80 | M16 | 100 | 150 | 27 | / | 8.8 | download | ||||
| R25-80-M16-120-Zn | S45C | 80 | M16 | 120 | 170 | 27 | / | 8.8 | download | ||||
| R25-80-M16-150-Zn | S45C | 80 | M16 | 150 | 200 | 27 | / | 8.8 | download | ||||
| R25-80-M16-200-Zn | S45C | 80 | M16 | 200 | 250 | 27 | / | 8.8 | download | ||||
| R25-80-M20-100-Zn | S45C | 80 | M20 | 100 | 151 | 27 | / | 12.7 | download | ||||
| R25-80-M20-120-Zn | S45C | 80 | M20 | 120 | 171 | 27 | / | 12.7 | download | ||||
| R25-80-M20-150-Zn | S45C | 80 | M20 | 150 | 201 | 27 | / | 12.7 | download | ||||
| R25-80-M20-200-Zn | S45C | 80 | M20 | 200 | 251 | 27 | / | 12.7 | download | ||||
| R25-80-M24-100-Zn | S45C | 80 | M24 | 100 | 151 | 27 | / | 17.6 | download | ||||
| R25-80-M24-120-Zn | S45C | 80 | M24 | 120 | 171 | 27 | / | 17.6 | download | ||||
| R25-80-M24-150-Zn | S45C | 80 | M24 | 150 | 201 | 27 | / | 17.6 | download | ||||
| R25-80-M24-200-Zn | S45C | 80 | M24 | 200 | 251 | 27 | / | 17.6 | download | ||||
| R25-100-M16-100-Zn | S45C | 100 | M16 | 100 | 150 | 27 | / | 10.7 | download | ||||
| R25-100-M16-120-Zn | S45C | 100 | M16 | 120 | 170 | 27 | / | 10.7 | download | ||||
| R25-100-M16-150-Zn | S45C | 100 | M16 | 150 | 200 | 27 | / | 10.7 | download | ||||
| R25-100-M16-200-Zn | S45C | 100 | M16 | 200 | 250 | 27 | / | 10.7 | download | ||||
| R25-100-M20-100-Zn | S45C | 100 | M20 | 100 | 151 | 27 | / | 15.6 | download | ||||
| R25-100-M20-120-Zn | S45C | 100 | M20 | 120 | 171 | 27 | / | 15.6 | download | ||||
| R25-100-M20-150-Zn | S45C | 100 | M20 | 150 | 201 | 27 | / | 15.6 | download | ||||
| R25-100-M20-200-Zn | S45C | 100 | M20 | 200 | 251 | 27 | / | 15.6 | download | ||||
| R25-100-M24-100-Zn | S45C | 100 | M24 | 100 | 151 | 27 | / | 17.6 | download | ||||
| R25-100-M24-120-Zn | S45C | 100 | M24 | 120 | 171 | 27 | / | 17.6 | download | ||||
| R25-100-M24-150-Zn | S45C | 100 | M24 | 150 | 201 | 27 | / | 17.6 | download | ||||
| R25-100-M24-200-Zn | S45C | 100 | M24 | 200 | 251 | 27 | / | 17.6 | download | ||||
| R25-120-M16-100-Zn | S45C | 120 | M16 | 100 | 150 | 27 | / | 12.7 | download | ||||
| R25-120-M16-120-Zn | S45C | 120 | M16 | 120 | 170 | 27 | / | 12.7 | download | ||||
| R25-120-M16-150-Zn | S45C | 120 | M16 | 150 | 200 | 27 | / | 12.7 | download | ||||
| R25-120-M16-200-Zn | S45C | 120 | M16 | 200 | 250 | 27 | / | 12.7 | download | ||||
| R25-120-M20-100-Zn | S45C | 120 | M20 | 100 | 151 | 27 | / | 17.6 | download | ||||
| R25-120-M20-120-Zn | S45C | 120 | M20 | 120 | 171 | 27 | / | 17.6 | download | ||||
| R25-120-M20-150-Zn | S45C | 120 | M20 | 150 | 201 | 27 | / | 17.6 | download | ||||
| R25-120-M20-200-Zn | S45C | 120 | M20 | 200 | 251 | 27 | / | 17.6 | download | ||||
| R25-120-M24-100-Zn | S45C | 120 | M24 | 100 | 151 | 27 | / | 22.5 | download | ||||
| R25-120-M24-120-Zn | S45C | 120 | M24 | 120 | 171 | 27 | / | 22.5 | download | ||||
| R25-120-M24-150-Zn | S45C | 120 | M24 | 150 | 201 | 27 | / | 22.5 | download | ||||
| R25-120-M24-200-Zn | S45C | 120 | M24 | 200 | 251 | 27 | / | 22.5 | download | ||||
| R25-120-M30-150-Zn | S45C | 120 | M30 | 150 | 205 | 27 | / | 27.3 | download | ||||
| R25-120-M30-200-Zn | S45C | 120 | M30 | 200 | 255 | 27 | / | 27.3 | download | ||||
| R25-80-M16-100-Cr | S45C | 80 | M16 | 100 | 150 | 27 | / | 8.8 | download | ||||
| R25-80-M16-120-Cr | S45C | 80 | M16 | 120 | 170 | 27 | / | 8.8 | download | ||||
| R25-80-M16-150-Cr | S45C | 80 | M16 | 150 | 200 | 27 | / | 8.8 | download | ||||
| R25-80-M16-200-Cr | S45C | 80 | M16 | 200 | 250 | 27 | / | 8.8 | download | ||||
| R25-80-M20-100-Cr | S45C | 80 | M20 | 100 | 151 | 27 | / | 12.7 | download | ||||
| R25-80-M20-120-Cr | S45C | 80 | M20 | 120 | 171 | 27 | / | 12.7 | download | ||||
| R25-80-M20-150-Cr | S45C | 80 | M20 | 150 | 201 | 27 | / | 12.7 | download | ||||
| R25-80-M20-200-Cr | S45C | 80 | M20 | 200 | 251 | 27 | / | 12.7 | download | ||||
| R25-80-M24-100-Cr | S45C | 80 | M24 | 100 | 151 | 27 | / | 17.6 | download | ||||
| R25-80-M24-120-Cr | S45C | 80 | M24 | 120 | 171 | 27 | / | 17.6 | download | ||||
| R25-80-M24-150-Cr | S45C | 80 | M24 | 150 | 201 | 27 | / | 17.6 | download | ||||
| R25-80-M24-200-Cr | S45C | 80 | M24 | 200 | 251 | 27 | / | 17.6 | download | ||||
| R25-100-M16-100-Cr | S45C | 100 | M16 | 100 | 150 | 27 | / | 10.7 | download | ||||
| R25-100-M16-120-Cr | S45C | 100 | M16 | 120 | 170 | 27 | / | 10.7 | download | ||||
| R25-100-M16-150-Cr | S45C | 100 | M16 | 150 | 200 | 27 | / | 10.7 | download | ||||
| R25-100-M16-200-Cr | S45C | 100 | M16 | 200 | 250 | 27 | / | 10.7 | download | ||||
| R25-100-M20-100-Cr | S45C | 100 | M20 | 100 | 151 | 27 | / | 15.6 | download | ||||
| R25-100-M20-120-Cr | S45C | 100 | M20 | 120 | 171 | 27 | / | 15.6 | download | ||||
| R25-100-M20-150-Cr | S45C | 100 | M20 | 150 | 201 | 27 | / | 15.6 | download | ||||
| R25-100-M20-200-Cr | S45C | 100 | M20 | 200 | 251 | 27 | / | 15.6 | download | ||||
| R25-100-M24-100-Cr | S45C | 100 | M24 | 100 | 151 | 27 | / | 17.6 | download | ||||
| R25-100-M24-120-Cr | S45C | 100 | M24 | 120 | 171 | 27 | / | 17.6 | download | ||||
| R25-100-M24-150-Cr | S45C | 100 | M24 | 150 | 201 | 27 | / | 17.6 | download | ||||
| R25-100-M24-200-Cr | S45C | 100 | M24 | 200 | 251 | 27 | / | 17.6 | download | ||||
| R25-120-M16-100-Cr | S45C | 120 | M16 | 100 | 150 | 27 | / | 12.7 | download | ||||
| R25-120-M16-120-Cr | S45C | 120 | M16 | 120 | 170 | 27 | / | 12.7 | download | ||||
| R25-120-M16-150-Cr | S45C | 120 | M16 | 150 | 200 | 27 | / | 12.7 | download | ||||
| R25-120-M16-200-Cr | S45C | 120 | M16 | 200 | 250 | 27 | / | 12.7 | download | ||||
| R25-120-M20-100-Cr | S45C | 120 | M20 | 100 | 151 | 27 | / | 17.6 | download | ||||
| R25-120-M20-120-Cr | S45C | 120 | M20 | 120 | 171 | 27 | / | 17.6 | download | ||||
| R25-120-M20-150-Cr | S45C | 120 | M20 | 150 | 201 | 27 | / | 17.6 | download | ||||
| R25-120-M20-200-Cr | S45C | 120 | M20 | 200 | 251 | 27 | / | 17.6 | download | ||||
| R25-120-M24-100-Cr | S45C | 120 | M24 | 100 | 151 | 27 | / | 22.5 | download | ||||
| R25-120-M24-120-Cr | S45C | 120 | M24 | 120 | 171 | 27 | / | 22.5 | download | ||||
| R25-120-M24-150-Cr | S45C | 120 | M24 | 150 | 201 | 27 | / | 22.5 | download | ||||
| R25-120-M24-200-Cr | S45C | 120 | M24 | 200 | 251 | 27 | / | 22.5 | download | ||||
| R25-120-M30-150-Cr | S45C | 120 | M30 | 150 | 205 | 27 | / | 27.3 | download | ||||
| R25-120-M30-200-Cr | S45C | 120 | M30 | 200 | 255 | 27 | / | 27.3 | download | ||||
| R25-80-M16-100-BK | S45C | 80 | M16 | 100 | 150 | 27 | / | 8.8 | download | ||||
| R25-80-M16-120-BK | S45C | 80 | M16 | 120 | 170 | 27 | / | 8.8 | download | ||||
| R25-80-M16-150-BK | S45C | 80 | M16 | 150 | 200 | 27 | / | 8.8 | download | ||||
| R25-80-M16-200-BK | S45C | 80 | M16 | 200 | 250 | 27 | / | 8.8 | download | ||||
| R25-80-M20-100-BK | S45C | 80 | M20 | 100 | 151 | 27 | / | 12.7 | download | ||||
| R25-80-M20-120-BK | S45C | 80 | M20 | 120 | 171 | 27 | / | 12.7 | download | ||||
| R25-80-M20-150-BK | S45C | 80 | M20 | 150 | 201 | 27 | / | 12.7 | download | ||||
| R25-80-M20-200-BK | S45C | 80 | M20 | 200 | 251 | 27 | / | 12.7 | download | ||||
| R25-80-M24-100-BK | S45C | 80 | M24 | 100 | 151 | 27 | / | 17.6 | download | ||||
| R25-80-M24-120-BK | S45C | 80 | M24 | 120 | 171 | 27 | / | 17.6 | download | ||||
| R25-80-M24-150-BK | S45C | 80 | M24 | 150 | 201 | 27 | / | 17.6 | download | ||||
| R25-80-M24-200-BK | S45C | 80 | M24 | 200 | 251 | 27 | / | 17.6 | download | ||||
| R25-100-M16-100-BK | S45C | 100 | M16 | 100 | 150 | 27 | / | 10.7 | download | ||||
| R25-100-M16-120-BK | S45C | 100 | M16 | 120 | 170 | 27 | / | 10.7 | download | ||||
| R25-100-M16-150-BK | S45C | 100 | M16 | 150 | 200 | 27 | / | 10.7 | download | ||||
| R25-100-M16-200-BK | S45C | 100 | M16 | 200 | 250 | 27 | / | 10.7 | download | ||||
| R25-100-M20-100-BK | S45C | 100 | M20 | 100 | 151 | 27 | / | 15.6 | download | ||||
| R25-100-M20-120-BK | S45C | 100 | M20 | 120 | 171 | 27 | / | 15.6 | download | ||||
| R25-100-M20-150-BK | S45C | 100 | M20 | 150 | 201 | 27 | / | 15.6 | download | ||||
| R25-100-M20-200-BK | S45C | 100 | M20 | 200 | 251 | 27 | / | 15.6 | download | ||||
| R25-100-M24-100-BK | S45C | 100 | M24 | 100 | 151 | 27 | / | 17.6 | download | ||||
| R25-100-M24-120-BK | S45C | 100 | M24 | 120 | 171 | 27 | / | 17.6 | download | ||||
| R25-100-M24-150-BK | S45C | 100 | M24 | 150 | 201 | 27 | / | 17.6 | download | ||||
| R25-100-M24-200-BK | S45C | 100 | M24 | 200 | 251 | 27 | / | 17.6 | download | ||||
| R25-120-M16-100-BK | S45C | 120 | M16 | 100 | 150 | 27 | / | 12.7 | download | ||||
| R25-120-M16-120-BK | S45C | 120 | M16 | 120 | 170 | 27 | / | 12.7 | download | ||||
| R25-120-M16-150-BK | S45C | 120 | M16 | 150 | 200 | 27 | / | 12.7 | download | ||||
| R25-120-M16-200-BK | S45C | 120 | M16 | 200 | 250 | 27 | / | 12.7 | download | ||||
| R25-120-M20-100-BK | S45C | 120 | M20 | 100 | 151 | 27 | / | 17.6 | download | ||||
| R25-120-M20-120-BK | S45C | 120 | M20 | 120 | 171 | 27 | / | 17.6 | download | ||||
| R25-120-M20-150-BK | S45C | 120 | M20 | 150 | 201 | 27 | / | 17.6 | download | ||||
| R25-120-M20-200-BK | S45C | 120 | M20 | 200 | 251 | 27 | / | 17.6 | download | ||||
| R25-120-M24-100-BK | S45C | 120 | M24 | 100 | 151 | 27 | / | 22.5 | download | ||||
| R25-120-M24-120-BK | S45C | 120 | M24 | 120 | 171 | 27 | / | 22.5 | download | ||||
| R25-120-M24-150-BK | S45C | 120 | M24 | 150 | 201 | 27 | / | 22.5 | download | ||||
| R25-120-M24-200-BK | S45C | 120 | M24 | 200 | 251 | 27 | / | 22.5 | download | ||||
| R25-120-M30-150-BK | S45C | 120 | M30 | 150 | 205 | 27 | / | 27.3 | download | ||||
| R25-120-M30-200-BK | S45C | 120 | M30 | 200 | 255 | 27 | / | 27.3 | download | ||||
| R25B-80-M16-100 | SUS 304 | 80 | M16 | 100 | 150 | 27 | / | 8.8 | download | ||||
| R25B-80-M16-120 | SUS 304 | 80 | M16 | 120 | 170 | 27 | / | 8.8 | download | ||||
| R25B-80-M16-150 | SUS 304 | 80 | M16 | 150 | 200 | 27 | / | 8.8 | download | ||||
| R25B-80-M16-200 | SUS 304 | 80 | M16 | 200 | 250 | 27 | / | 8.8 | download | ||||
| R25B-80-M20-100 | SUS 304 | 80 | M20 | 100 | 151 | 27 | / | 12.7 | download | ||||
| R25B-80-M20-120 | SUS 304 | 80 | M20 | 120 | 171 | 27 | / | 12.7 | download | ||||
| R25B-80-M20-150 | SUS 304 | 80 | M20 | 150 | 201 | 27 | / | 12.7 | download | ||||
| R25B-80-M20-200 | SUS 304 | 80 | M20 | 200 | 251 | 27 | / | 12.7 | download | ||||
| R25B-80-M24-100 | SUS 304 | 80 | M24 | 100 | 151 | 27 | / | 17.6 | download | ||||
| R25B-80-M24-120 | SUS 304 | 80 | M24 | 120 | 171 | 27 | / | 17.6 | download | ||||
| R25B-80-M24-150 | SUS 304 | 80 | M24 | 150 | 201 | 27 | / | 17.6 | download | ||||
| R25B-80-M24-200 | SUS 304 | 80 | M24 | 200 | 251 | 27 | / | 17.6 | download | ||||
| R25B-100-M16-100 | SUS 304 | 100 | M16 | 100 | 150 | 27 | / | 10.7 | download | ||||
| R25B-100-M16-120 | SUS 304 | 100 | M16 | 120 | 170 | 27 | / | 10.7 | download | ||||
| R25B-100-M16-150 | SUS 304 | 100 | M16 | 150 | 200 | 27 | / | 10.7 | download | ||||
| R25B-100-M16-200 | SUS 304 | 100 | M16 | 200 | 250 | 27 | / | 10.7 | download | ||||
| R25B-100-M20-100 | SUS 304 | 100 | M20 | 100 | 151 | 27 | / | 15.6 | download | ||||
| R25B-100-M20-120 | SUS 304 | 100 | M20 | 120 | 171 | 27 | / | 15.6 | download | ||||
| R25B-100-M20-150 | SUS 304 | 100 | M20 | 150 | 201 | 27 | / | 15.6 | download | ||||
| R25B-100-M20-200 | SUS 304 | 100 | M20 | 200 | 251 | 27 | / | 15.6 | download | ||||
| R25B-100-M24-100 | SUS 304 | 100 | M24 | 100 | 151 | 27 | / | 17.6 | download | ||||
| R25B-100-M24-120 | SUS 304 | 100 | M24 | 120 | 171 | 27 | / | 17.6 | download | ||||
| R25B-100-M24-150 | SUS 304 | 100 | M24 | 150 | 201 | 27 | / | 17.6 | download | ||||
| R25B-100-M24-200 | SUS 304 | 100 | M24 | 200 | 251 | 27 | / | 17.6 | download | ||||
| R25B-120-M16-100 | SUS 304 | 120 | M16 | 100 | 150 | 27 | / | 12.7 | download | ||||
| R25B-120-M16-120 | SUS 304 | 120 | M16 | 120 | 170 | 27 | / | 12.7 | download | ||||
| R25B-120-M16-150 | SUS 304 | 120 | M16 | 150 | 200 | 27 | / | 12.7 | download | ||||
| R25B-120-M16-200 | SUS 304 | 120 | M16 | 200 | 250 | 27 | / | 12.7 | download | ||||
| R25B-120-M20-100 | SUS 304 | 120 | M20 | 100 | 151 | 27 | / | 17.6 | download | ||||
| R25B-120-M20-120 | SUS 304 | 120 | M20 | 120 | 171 | 27 | / | 17.6 | download | ||||
| R25B-120-M20-150 | SUS 304 | 120 | M20 | 150 | 201 | 27 | / | 17.6 | download | ||||
| R25B-120-M20-200 | SUS 304 | 120 | M20 | 200 | 251 | 27 | / | 17.6 | download | ||||
| R25B-120-M24-100 | SUS 304 | 120 | M24 | 100 | 151 | 27 | / | 22.5 | download | ||||
| R25B-120-M24-120 | SUS 304 | 120 | M24 | 120 | 171 | 27 | / | 22.5 | download | ||||
| R25B-120-M24-150 | SUS 304 | 120 | M24 | 150 | 201 | 27 | / | 22.5 | download | ||||
| R25B-120-M24-200 | SUS 304 | 120 | M24 | 200 | 251 | 27 | / | 22.5 | download | ||||
| R25B-120-M30-150 | SUS 304 | 120 | M30 | 150 | 205 | 27 | / | 27.3 | download | ||||
| R25B-120-M30-200 | SUS 304 | 120 | M30 | 200 | 255 | 27 | / | 27.3 | download |
Overloaded universal shock-absorbing foot cup 翻译失败：（无法获取翻译结果：无效的响应或网络问题。）
Metal+PVC adhesive 翻译失败：（无法获取翻译结果：无效的响应或网络问题。）
Zn: Galvanized 翻译失败：（无法获取翻译结果：无效的响应或网络问题。）
Cr: Chrome plating 翻译失败：（无法获取翻译结果：无效的响应或网络问题。）
BK: Electrophoretic Black 翻译失败：（无法获取翻译结果：无效的响应或网络问题。）
Disk seat and screw: Steel S45C/SUS304 翻译失败：（无法获取翻译结果：无效的响应或网络问题。）
The screw provides a 15 degree universal adjustment to eliminate angle tolerances and improve the stability of the machine equipment 翻译失败：（无法获取翻译结果：无效的响应或网络问题。）
Pad: PCV shockproof design, flame retardant, insulation, rust proof, alkali resistant, wear-resistant, oil resistant 翻译失败：（无法获取翻译结果：无效的响应或网络问题。）更多信息
如有更多技术咨询，请致电
TANJA INDUSTRIAL (SHANDONG) CO.,LTD Address: No. 1389 Kaiming Road, Economic Development Zone, Laizhou City, Shandong Province Phone:（+86）0535-2277515 TANJA INDUSTRIAL (SHANDONG) CO.,LTD
鲁ICP备13010807号-2 Copyright © 2021 TANJA INDUSTRIAL (SHANDONG) CO.,LTD . All rights reserved. Disclaimers
