Flat lock拉手,搭扣,旋钮天甲工业

EF30

Flat lock

Zinc alloy

purpose：Flat lock

sample book CAD

model Check the box

- + individual

Get a quote

Total price (before tax):5.3*100=530.00element

total:560.00element

Order Now

communication

quantity	price
1-4	16.8element
50+	13.6element

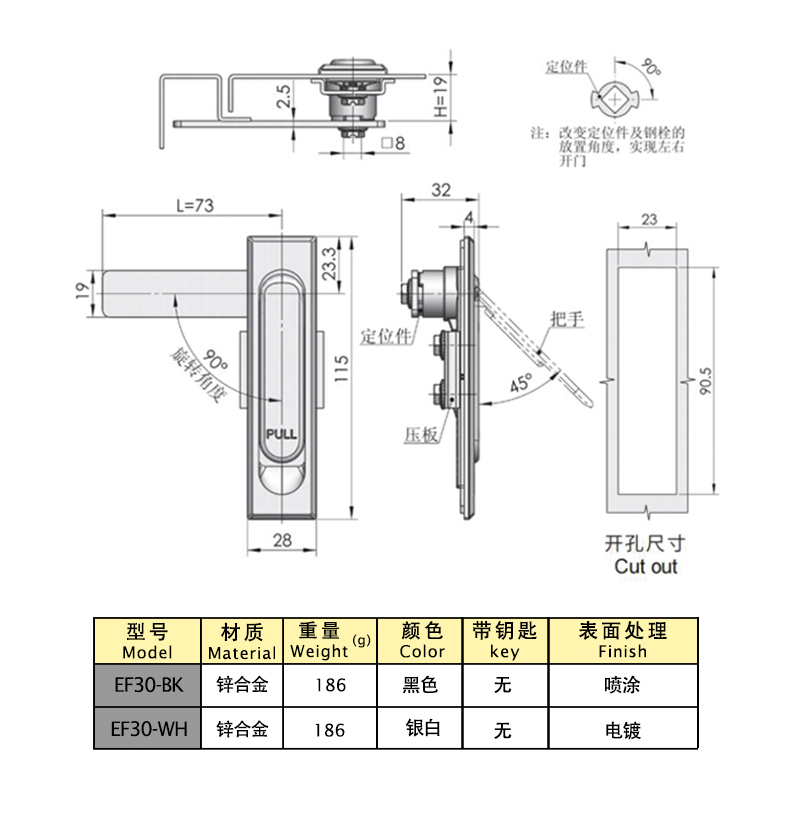

Product dimension diagram

Product dimensions and attributes

	model	function	material quality	Length (mm)	With key	surface treatment	Weight (g)	3D	Purchasing
select	Reset							download	select
	EF30-BK	Flat lock	Zinc alloy	115	None	Spray coating	1	download	buy
	EF30-SR	Flat lock	Zinc alloy	115	None	Electroplating	1	download	buy

characteristic

Material: Zinc alloy lock shell, handle A3 steel lock plate accessories
Surface treatment: spray painting, electroplating
Structural function: Lift the handle and rotate it left and right to open it, reset the handle and close it. Lock plate positioning can be swapped for left and right universal use
Note: Applicable door panel thickness 1-3mm
