Flat lock拉手,搭扣,旋钮天甲工业

EF34

Flat lock

Zinc alloy

purpose：Flat lock

sample book CAD

model Check the box

- + individual

Get a quote

Total price (before tax):5.3*100=530.00element

total:560.00element

Order Now

communication

quantity	price
1-4	16.8element
50+	13.6element

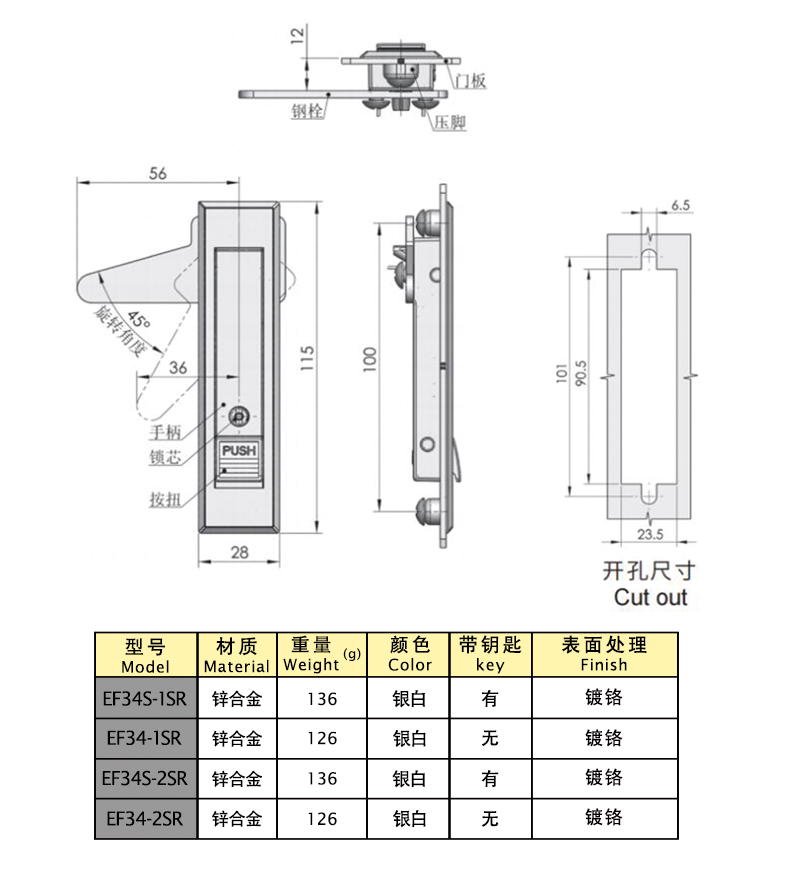

Product dimension diagram

Product dimensions and attributes

	model	material quality	Length (mm)	colour	With key	surface treatment	Weight (g)	3D	Purchasing
select	Reset							download	select
	EF34-S-1SR	Zinc alloy	115	Silver White	Yes	Chromium plating	1	download	buy
	EF34-1SR	Zinc alloy	115	Silver White	None	Chromium plating	1	download	buy
	EF34-S-2SR	Zinc alloy	115	Silver White	Yes	Chromium plating	1	download	buy
	EF34-2SR	Zinc alloy	115	Silver White	None	Chromium plating	1	download	buy

characteristic

Material: Zinc alloy lock case, handle, button A3 steel lock plate accessories
Surface treatment: spray painting, electroplating
Structural function: locked by the key, the handle automatically pops up and rotates to open when pressed, and the position of the lock plate can be swapped to be universal on both sides
Note: Applicable door panel thickness 1-3mm
