Flat lock

EF38

Flat lock

Zinc alloy

purpose:Flat lock

sample book CAD

model Check the box

- + individual

Total price (before tax):5.3*100=530.00element

total:560.00element

communication

quantity price
1-4 16.8element
50+ 13.6element

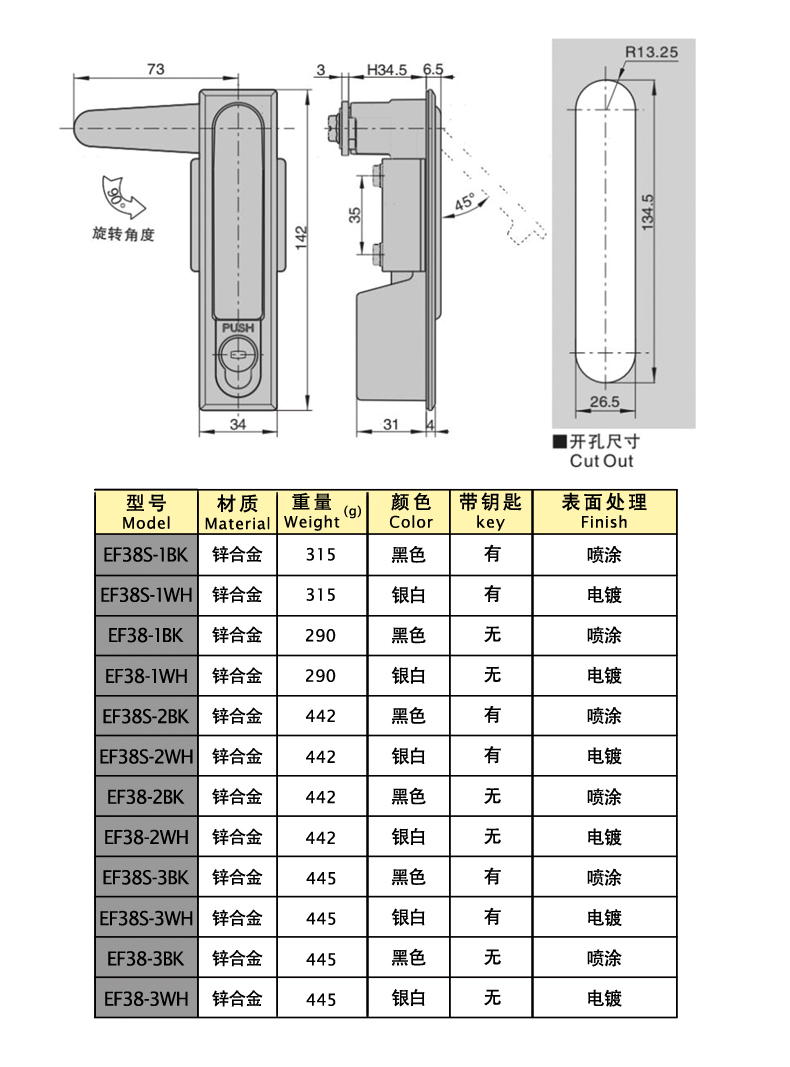

Product dimension diagram
Product dimensions and attributes
  model
function function material quality material quality Length (mm) Length (mm) With key With key surface treatment surface treatment Weight (g)
3D Purchasing
select Reset
download select
EF38-S-1BK
Flat lock Zinc alloy 142 Yes Spray coating 1
download
EF38-S-1SR
Flat lock Zinc alloy 142 Yes Electroplating 1
download
EF38-1BK
Flat lock Zinc alloy 142 None Spray coating 1
download
EF38-1SR
Flat lock Zinc alloy 142 None Electroplating 1
download
EF38-S-2BK
Flat lock Zinc alloy 142 Yes Chromium plating 1
download
EF38-S-2SR
Flat lock Zinc alloy 142 Yes Electroplating 1
download
EF38-2BK
Flat lock Zinc alloy 142 None Spray coating 1
download
EF38-2SR
Flat lock Zinc alloy 142 None Electroplating 1
download
EF38-S-3BK
Flat lock Zinc alloy 142 Yes Spray coating 1
download
EF38-S-3SR
Flat lock Zinc alloy 142 Yes Electroplating 1
download
EF38-3BK
Flat lock Zinc alloy 142 None Spray coating 1
download
EF38-3SR
Flat lock Zinc alloy 142 None Electroplating 1
download
characteristic
Material: Zinc alloy lock case, handle, button A3 steel lock plate accessories
Surface treatment: spray painting, electroplating
Structural function: locked by the key, the handle automatically pops up and rotates to open when pressed, and the position of the lock plate can be swapped to be universal on both sides
Note: Applicable door panel thickness 1-3mm
