Self locking damping toggle latch拉手,搭扣,旋钮天甲工业

A151

Self locking damping toggle latch

Galvanized / Polishing

purpose：Self locking damping toggle latch

model Check the box

- + individual

Total price (before tax):5.3*100=530.00element

total:560.00element

communication

quantity	price
1-4	16.8element
50+	13.6element

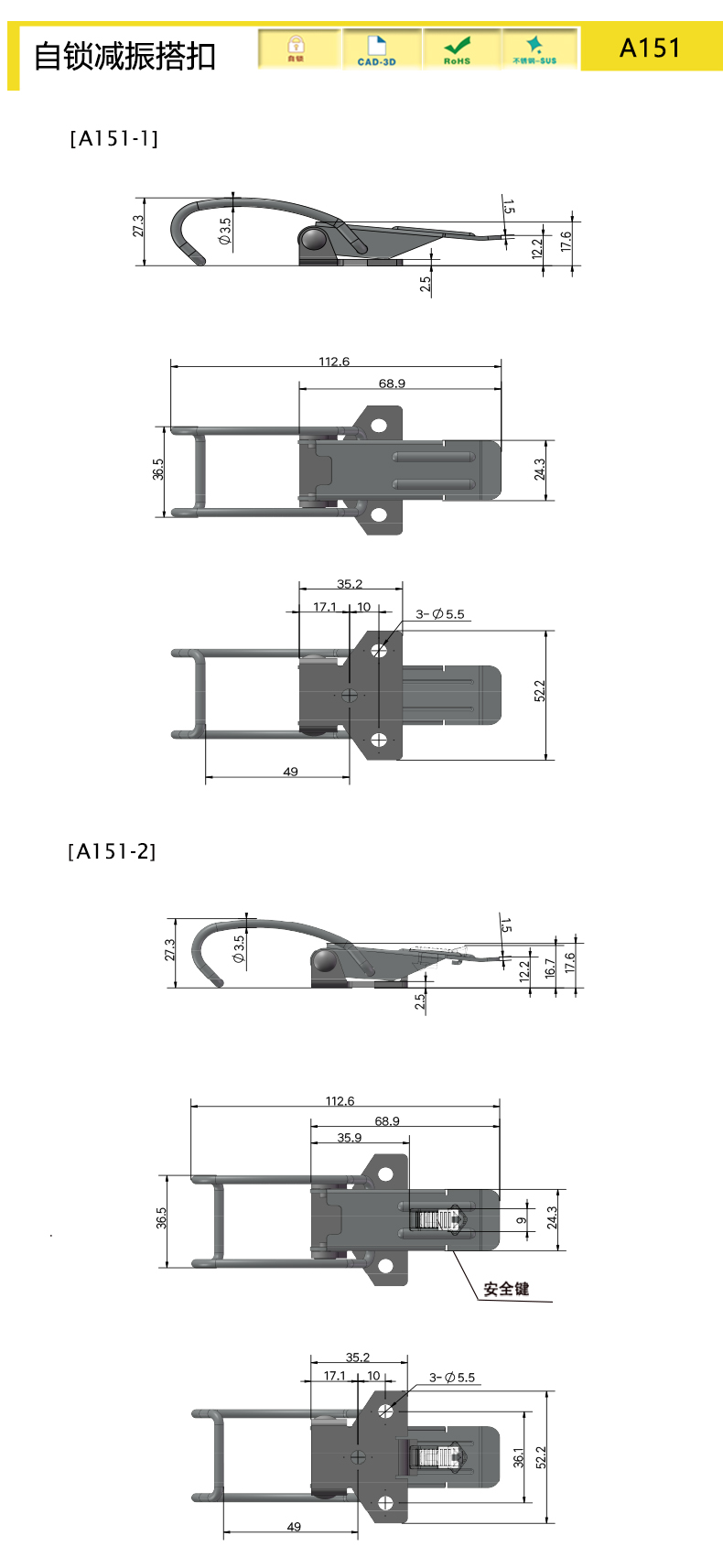

Product dimension diagram

Product dimensions and attributes

	model	function	Length (mm)	material quality	Weight (g)	Locking force (N)	3D	Purchasing
select	Reset						download	select
	A151-1	damping	112.6	SPCC	73.21	350	download	buy
	A151B-1	damping	112.6	SUS304	77.01	350	download	buy
	A151-2	damping,self lock	112.6	SPCC	75.21	350	download	buy
	A151B-2	damping,self lock	112.6	SUS304	75.21	350	download	buy

characteristic

The curved spring steel wire gives the buckle elastic preload and vibration reduction function

The self-locking structure can prevent accidental opening

Services available

No need for hooks, more convenient to use
