Adjustable right angle toggle latch

A229B

Adjustable right angle toggle latch

Polishing

purpose：Adjustable right angle toggle latch

sample book CAD

model Check the box

- + individual
Get a quote

Total price (before tax):5.3*100=530.00element

total:560.00element

Order Now

communication

quantity price
1-4 16.8element
50+ 13.6element

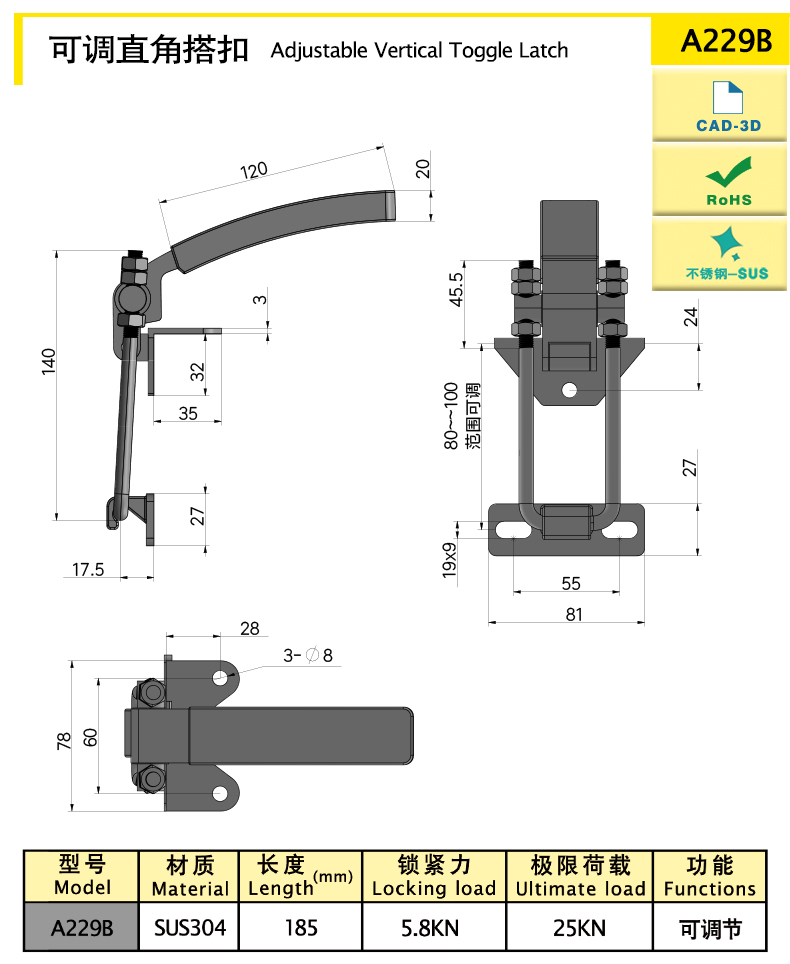

Product dimension diagram
Product dimensions and attributes
  model
function function Length (mm) Length (mm) material quality Weight (g) Locking force (N) Locking force (N) Ultimate load (N) Ultimate load (N)
3D Purchasing
select Reset
download select
A229B
adjustable 185 SUS304 539.3 5800 25000
download
A229B1
adjustable 185 SUS201 539.61 5800 25000
download
characteristic

90 degree vertical installation structure is simple and easy to use
Adjustable screw length for easy adjustment of installation hole spacing
Installation: Both front and side can be installed
