Internal locking toggle latch拉手,搭扣,旋钮天甲工业

A109B

Internal locking toggle latch

Polishing

purpose：Internal locking toggle latch

model Check the box

- + individual

Total price (before tax):5.3*100=530.00element

total:560.00element

communication

quantity	price
1-4	16.8element
50+	13.6element

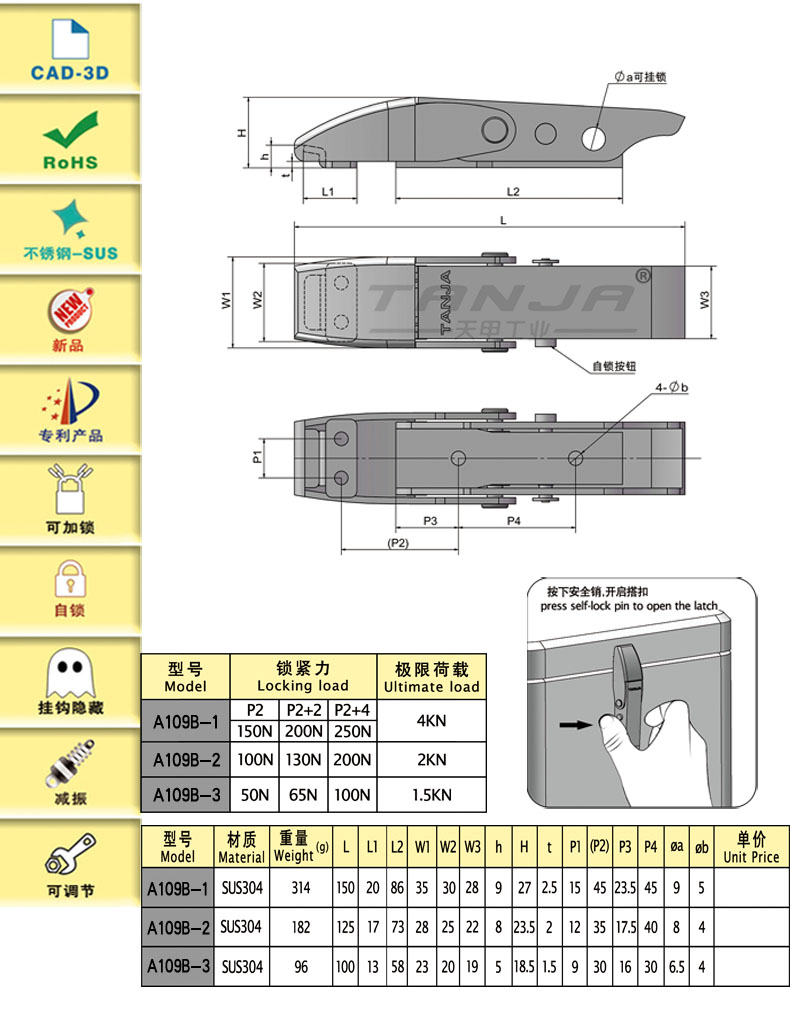

Product dimension diagram

Product dimensions and attributes

	model	function	Length (mm)	material quality	Weight (g)	Locking force (N)	3D	Purchasing
select	Reset						download	select
	A109B-1	concealed,self lock,damping,adjustable	150.4	SUS304	322.59	250	download	buy
	A109B-2	concealed,self lock,damping,adjustable	125.3	SUS304	179.71	200	download	buy
	A109B-3	concealed,self lock,damping,adjustable	100.4	SUS304	91.08	100	download	buy

characteristic

Built in spring with vibration damping function, can maintain elastic preloading on the connecting body.

The unique safety pin can achieve self-locking function, with reliable safety, and the buckle will not loosen due to vibration

Services available

Internal buckle hook, buckle has strong overall integrity and compact structure
