431
Heavy duty adjustable toggle latch
Galvanized/Polishing
purpose：Heavy duty adjustable toggle latch
model Check the box
Total price (before tax):5.3*100=530.00element
total:560.00element
communication
| quantity | price |
|---|---|
| 1-4 | 16.8element |
| 50+ | 13.6element |
| model | function  | Length (mm) | material quality | Weight (g) | Locking force (N) |
3D | Purchasing | |||
|---|---|---|---|---|---|---|---|---|---|---|
| select | Reset | download | select | |||||||

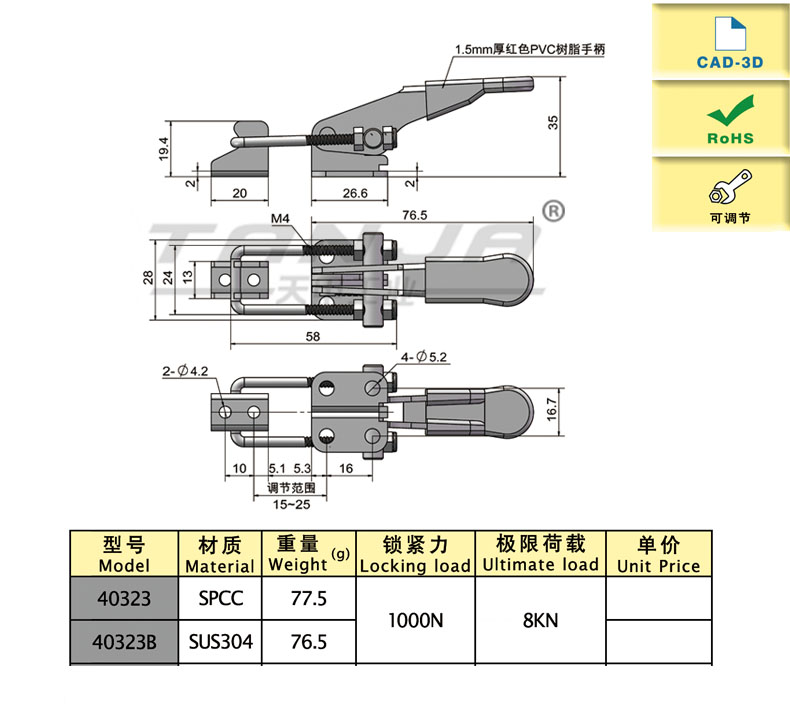

| 40323 | adjustable | 119.2 | SPCC | 70.21 | 1000 | download | ||||
| 40323B | adjustable | 119.2 | SUS304 | 75.91 | 1000 | download | ||||

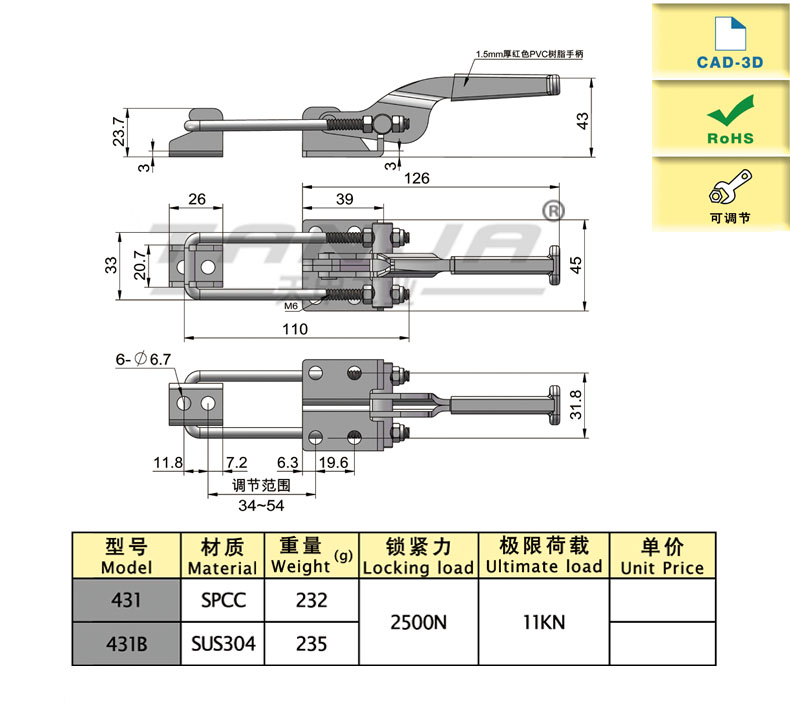

| 431 | adjustable | 210 | SPCC | 232.02 | 2500 | download | ||||
| 431B | adjustable | 210 | SUS304 | 231.51 | 2500 | download | ||||

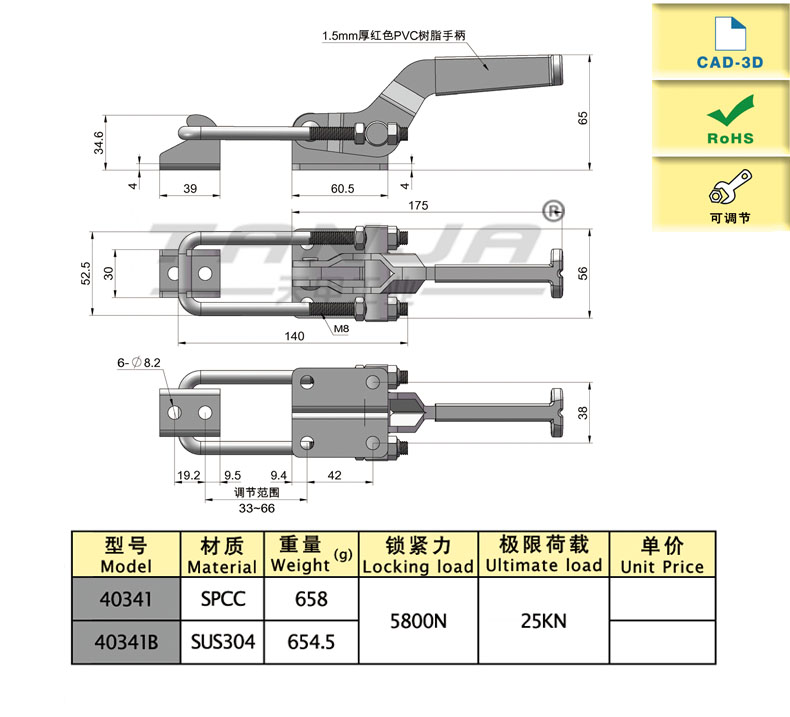

| 40341 | adjustable | 290 | SPCC | 700.01 | 5800 | download | ||||
| 40341B | adjustable | 290 | SUS304 | 618.61 | 5800 | download |
The screw can be adjusted to change the installation distance and locking force;
Heavy duty, suitable for occasions with greater pulling force
Multiple materials available
