S01
Handle type indexing pin with fixed stop
SUS304 stainless steel/carbon steel
purpose：Handle type indexing pin with fixed stop
model Check the box
Total price (before tax):5.3*100=530.00element
total:560.00element
communication
| quantity | price |
|---|---|
| 1-4 | 16.8element |
| 50+ | 13.6element |

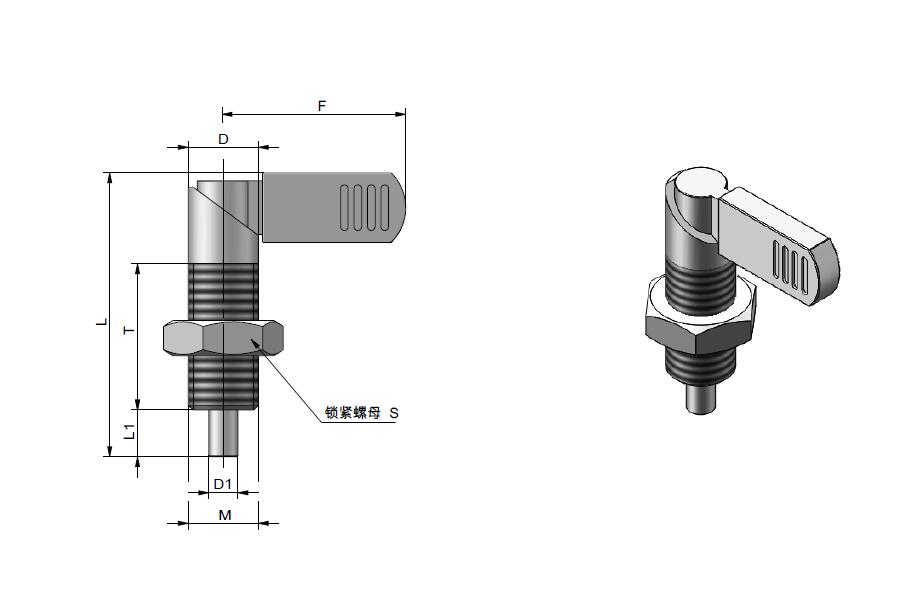

| model | material quality  | D1 | D | L1 | L2 | F | T | M | Maximum load (N) | Weight (g) | 3D | Purchasing | |||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| select | Reset | download | select | ||||||||||||
| S01-5-M12 | Carbon steel | 5 | 12 | 8 | 13 | 32 | 26 | M12*1.5 | 18 | 39.31 | download | ||||
| S01B-5-M12 | SUS304 | 5 | 12 | 8 | 13 | 32 | 26 | M12*1.5 | 18 | 38.6 | download | ||||
| S01-6-M12 | Carbon steel | 6 | 12 | 8 | 13 | 32 | 26 | M12*1.5 | 18 | 38.31 | download | ||||
| S01B-6-M12 | SUS304 | 6 | 12 | 8 | 13 | 32 | 26 | M12*1.5 | 18 | 38.81 | download | ||||
| S01-6-M16 | Carbon steel | 6 | 16 | 10 | 16 | 42 | 30 | M16*1.5 | 29 | 1 | download | ||||
| S01B-6-M16 | SUS304 | 6 | 16 | 10 | 16 | 42 | 30 | M16*1.5 | 29 | 1 | download | ||||
| S01-8-M12 | Carbon steel | 8 | 12 | 8 | 13 | 32 | 26 | M12*1.5 | 18 | 41.01 | download | ||||
| S01B-8-M12 | SUS304 | 8 | 12 | 8 | 13 | 32 | 26 | M12*1.5 | 18 | 40.21 | download | ||||
| S01-8-M16 | Carbon steel | 8 | 16 | 10 | 16 | 42 | 30 | M16*1.5 | 29 | 1 | download | ||||
| S01B-8-M16 | SUS304 | 8 | 16 | 10 | 16 | 42 | 30 | M16*1.5 | 29 | 1 | download | ||||
| S01-8-M20 | Carbon steel | 8 | 20 | 12 | 21 | 52 | 36 | M20*1.5 | 57 | 1 | download | ||||
| S01B-8-M20 | SUS304 | 8 | 20 | 12 | 21 | 52 | 36 | M20*1.5 | 57 | 1 | download | ||||
| S01-10-M16 | Carbon steel | 10 | 16 | 10 | 16 | 42 | 30 | M16*1.5 | 29 | 90.01 | download | ||||
| S01B-10-M16 | SUS304 | 10 | 16 | 10 | 16 | 42 | 30 | M16*1.5 | 29 | 89.51 | download | ||||
| S01-10-M20 | Carbon steel | 10 | 20 | 12 | 21 | 52 | 36 | M20*1.5 | 57 | 1 | download | ||||
| S01B-10-M20 | SUS304 | 10 | 20 | 12 | 21 | 52 | 36 | M20*1.5 | 57 | 1 | download | ||||
| S01-12-M20 | Carbon steel | 12 | 20 | 12 | 21 | 52 | 36 | M20*1.5 | 57 | 1 | download | ||||
| S01B-12-M20 | SUS304 | 12 | 20 | 12 | 21 | 52 | 36 | M20*1.5 | 57 | 168.61 | download |
The handle type indexing pin is suitable for situations where the pin head needs to be quickly retracted
SUS304 stainless steel has corrosion resistance and is suitable for special hygiene, climate, and environmental conditions or in departments where the use of corrosion-resistant materials is mandatory by law. Handle type indexing pins made of this material can be used on all machinery and equipment.
