Indexing pin with flange拉手,搭扣,旋钮天甲工业

S12

Indexing pin with flange

Carbon steel

purpose：Indexing pin with flange

model Check the box

- + individual

Total price (before tax):5.3*100=530.00element

total:560.00element

communication

quantity	price
1-4	16.8element
50+	13.6element

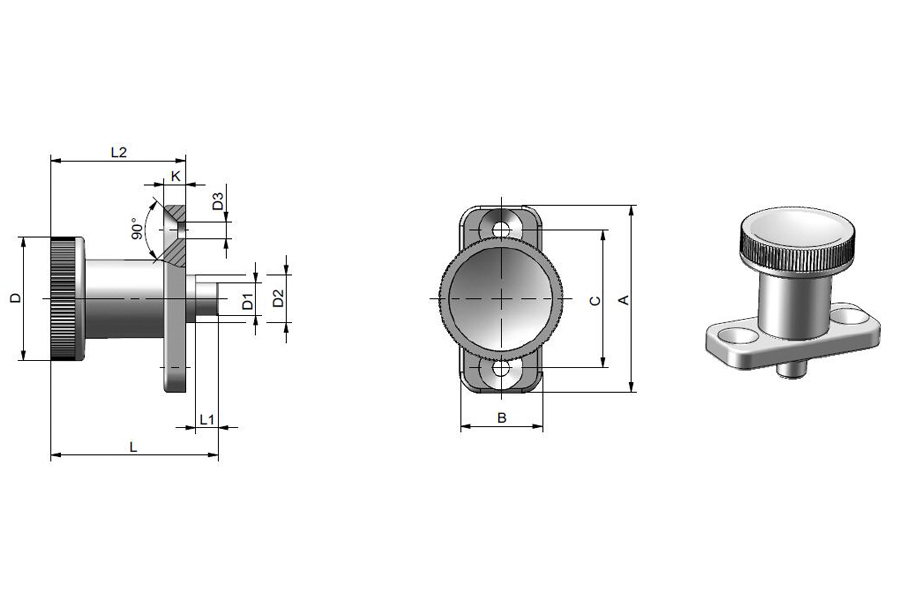

Product dimension diagram

Product dimensions and attributes

	model	material quality	D1	D	L1	L2	K	D3	C	D2	B	Maximum load (N)	Weight (g)	3D	Purchasing
select	Reset													download	select
	S12-6-B	Carbon steel	6	25	6	28.5	4.5	4.3	30	10	18	20	38.51	download	buy
	S12-8-B	Carbon steel	8	31	8	33.5	5.5	5.3	34	12	20	30	60.71	download	buy

characteristic

Translation failure: (Unable to obtain translation result: invalid response or network issue.)

S-type: pipe body anodized, silver white, matte finish; Black legs with matte finish

Translation failure: (Unable to obtain translation result: invalid response or network issue.)

Services available

Pipe end cover: Polyamide (PA)
