handle拉手,搭扣,旋钮天甲工业

L43

handle

Hard aluminum alloy anodized pipe body

purpose：handle

sample book CAD

model Check the box

- + individual

Get a quote

Total price (before tax):5.3*100=530.00element

total:560.00element

Order Now

communication

quantity	price
1-4	16.8element
50+	13.6element

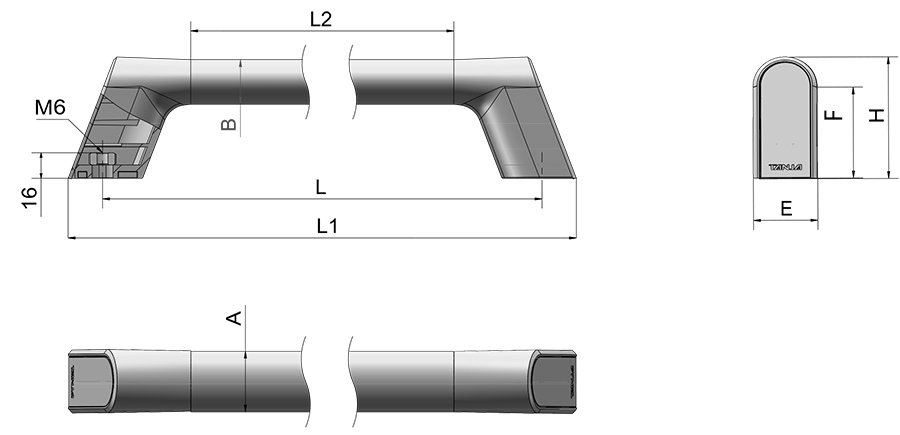

Product dimension diagram

Product dimensions and attributes

	model	material quality	Tube body	Supporting feet	Cover plate	Weight (g)	Length L	L1	L2	H	F	E	A	B	3D	Purchasing
select	Reset														download	select
	L43-26-200-N	Aluminum alloy	Black	black	Yellow	80	200	230	125	52	38.7	27.4	26	19	download	buy
	L43-26-200-B	Aluminum alloy	Black	black	Black	80.65	200	230	125	52	38.7	27.4	26	19	download	buy
	L43-26-200-S	Aluminum alloy	Silver White	black	Silver White	46.01	200	230	125	52	38.7	27.4	26	19	download	buy
	L43-26-200-W	Aluminum alloy	Silver White	Silver white	White	75.02	200	230	125	52	38.7	27.4	26	19	download	buy
	L43-26-300-N	Aluminum alloy	Black	black	Yellow	104.01	300	330	225	52	38.7	27.4	26	19	download	buy
	L43-26-300-B	Aluminum alloy	Black	black	Black	104.01	300	330	225	52	38.7	27.4	26	19	download	buy
	L43-26-300-S	Aluminum alloy	Silver White	black	Silver White	104	300	330	225	52	38.7	27.4	26	19	download	buy
	L43-26-300-W	Aluminum alloy	Silver White	Silver white	White	104.01	300	330	225	52	38.7	27.4	26	19	download	buy
	L43-26-400-N	Aluminum alloy	Black	black	Yellow	125	400	430	325	52	38.7	27.4	26	19	download	buy
	L43-26-400-B	Aluminum alloy	Black	black	Black	115.01	400	430	325	52	38.7	27.4	26	19	download	buy
	L43-26-400-S	Aluminum alloy	Silver White	black	Silver White	115.01	400	430	325	52	38.7	27.4	26	19	download	buy
	L43-26-400-W	Aluminum alloy	Silver White	Silver white	White	130.01	400	430	325	52	38.7	27.4	26	19	download	buy

characteristic

Tubular handle:

Support legs,Polyamide (PA), side cover plate,Polyamide (PA)

Installation: The support feet have through-holes for hexagonal screws M6

W-type: anodized pipe body, silver white, matte finish; Support legs, silver white, matte finish; Side cover, white, matte finish

Type B: Black body with matte finish; Black legs with matte finish; Side cover, black, matte finish
S-type: pipe body anodized, silver white, matte finish; Support legs, black, matte finish; Side cover, silver white, matte finish
N-type: black body with matte finish; Support legs, black, matte finish; Side cover, yellow, matte finish

Services available

1. Customized non-standard length 2. Ultrasonic cleaning and dust-free packaging 3. Laser engraving of logo

产品名称
handle
