select language version
model Check the box
Total price (before tax):5.3*100=530.00element
total:560.00element
communication
| quantity | price |
|---|---|
| 1-4 | 16.8element |
| 50+ | 13.6element |

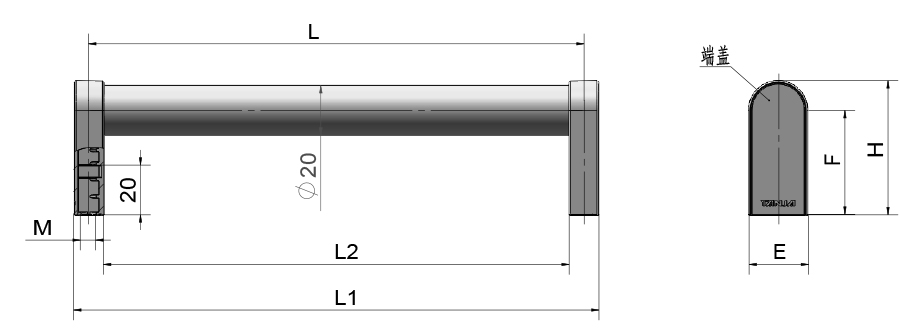

| model | material quality | Tube body  | Supporting feet | Cover plate | Weight (g) | Length L | D | L1 | L2 | F | E | M | T |
3D | Purchasing | |||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| select | Reset | download | select | |||||||||||||||
| L11-D20-180-W | Aluminum alloy | Silver White | Silver white | White | 71.21 | 180 | 20 | 192 | 168 | 42 | 24 | M5 | 14 | download | ||||
| L11-D20-200-W | Aluminum alloy | Silver White | Silver white | White | 72 | 200 | 20 | 212 | 188 | 42 | 24 | M5 | 14 | download | ||||
| L11-D20-250-W | Aluminum alloy | Silver White | Silver white | White | 89 | 250 | 20 | 262 | 238 | 42 | 24 | M5 | 14 | download | ||||
| L11-D20-300-W | Aluminum alloy | Silver White | Silver white | White | 100 | 300 | 20 | 312 | 288 | 42 | 24 | M5 | 14 | download | ||||
| L11-D20-350-W | Aluminum alloy | Silver White | Silver white | White | 103.42 | 350 | 20 | 362 | 338 | 42 | 24 | M5 | 14 | download | ||||
| L11-D20-400-W | Aluminum alloy | Silver White | Silver white | White | 117 | 400 | 20 | 412 | 388 | 42 | 24 | M5 | 14 | download | ||||
| L11-D20-180-B | Aluminum alloy | Black | black | Yellow | 70.93 | 180 | 20 | 192 | 168 | 42 | 24 | M5 | 14 | download | ||||
| L11-D20-200-B | Aluminum alloy | Black | black | Yellow | 72 | 200 | 20 | 212 | 188 | 42 | 24 | M5 | 14 | download | ||||
| L11-D20-250-B | Aluminum alloy | Black | black | Yellow | 94 | 250 | 20 | 262 | 238 | 42 | 24 | M5 | 14 | download | ||||
| L11-D20-300-B | Aluminum alloy | Black | black | Yellow | 102.05 | 300 | 20 | 312 | 288 | 42 | 24 | M5 | 14 | download | ||||
| L11-D20-350-B | Aluminum alloy | Black | black | Yellow | 115.01 | 350 | 20 | 362 | 338 | 42 | 24 | M5 | 14 | download | ||||
| L11-D20-400-B | Aluminum alloy | Black | black | Yellow | 127 | 400 | 20 | 412 | 388 | 42 | 24 | M5 | 14 | download | ||||
| L11-D20-180-S | Aluminum alloy | Silver White | black | Yellow | 72.31 | 180 | 20 | 192 | 168 | 42 | 24 | M5 | 14 | download | ||||
| L11-D20-200-S | Aluminum alloy | Silver White | black | Yellow | 74.01 | 200 | 20 | 212 | 188 | 42 | 24 | M5 | 14 | download | ||||
| L11-D20-250-S | Aluminum alloy | Silver White | black | Yellow | 89 | 250 | 20 | 262 | 238 | 42 | 24 | M5 | 14 | download | ||||
| L11-D20-300-S | Aluminum alloy | Silver White | black | Yellow | 91.81 | 300 | 20 | 312 | 288 | 42 | 24 | M5 | 14 | download | ||||
| L11-D20-350-S | Aluminum alloy | Silver White | black | Yellow | 118.01 | 350 | 20 | 362 | 338 | 42 | 24 | M5 | 14 | download | ||||
| L11-D20-400-S | Aluminum alloy | Silver White | black | Yellow | 131.11 | 400 | 20 | 412 | 388 | 42 | 24 | M5 | 14 | download |
Tubular handle
W-type: anodized pipe body, silver white, matte finish; Silver white support legs with matte finish
Type B: Black body, black legs, matte finish
S-type: pipe body anodized, silver white, matte finish; Black legs with matte finish
Pipe end cover: Polyamide (PA)
Installation: Foot with threaded blind holes
1. Customized non-standard length 2. Optional screws 3. Ultrasonic cleaning and dust-free packaging 4. Laser engraving logo
