Hidden full width handwheel拉手,搭扣,旋钮天甲工业

T36

Hidden full width handwheel

phenolic base（PF）thermosettingPlastic

purpose：Hidden full width handwheel

sample book CAD

model Check the box

- + individual

Get a quote

Total price (before tax):5.3*100=530.00element

total:560.00element

Order Now

communication

quantity	price
1-4	16.8element
50+	13.6element

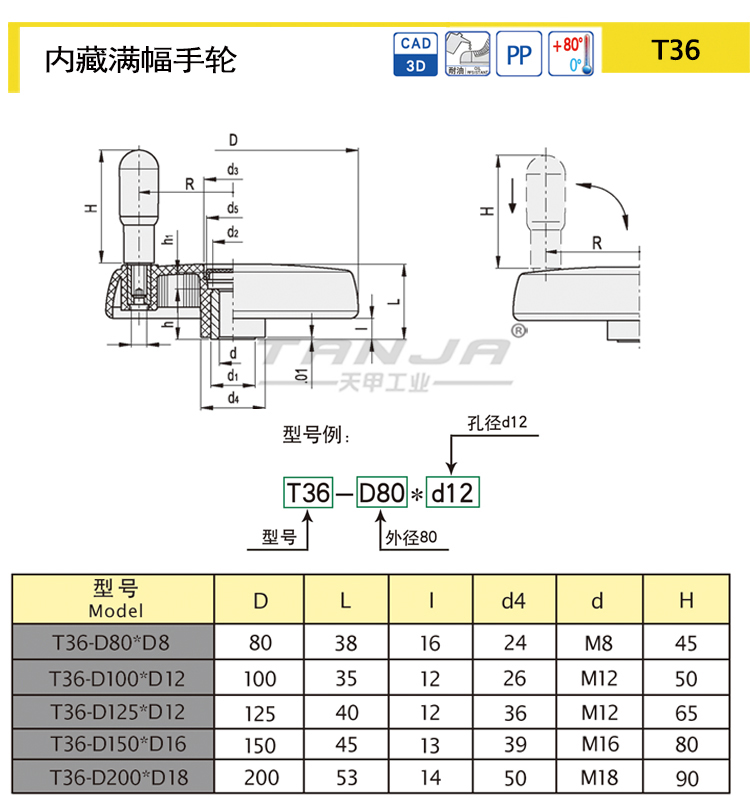

Product dimension diagram

Product dimensions and attributes

	model	Weight (g)	H	d	D	L	I	d4	3D	Purchasing
select	Reset								download	select
	T36-D80-d8	1	45	8	80	38	16	24	download	buy
	T36-D100-d12	1	50	12	100	35	12	26	download	buy
	T36-D125-d12	1	65	12	125	40	12	36	download	buy
	T36-D150-d16	1	80	16	150	45	13	39	download	buy
	T36-D200-d18	1	80	18	200	53	14	50	download	buy

characteristic

Resistant to chemical solvents, oil stains, and high temperatures. The rear fan-shaped design inside the wheel rim makes it easier to grip and operate on the side of the handwheel

Services available

1. Customized non-standard length 2. Optional screws 3. Ultrasonic cleaning and dust-free packaging

产品名称
Hidden full width handwheel
