select language version
model Check the box
Total price (before tax):5.3*100=530.00element
total:560.00element
communication
| quantity | price |
|---|---|
| 1-4 | 16.8element |
| 50+ | 13.6element |

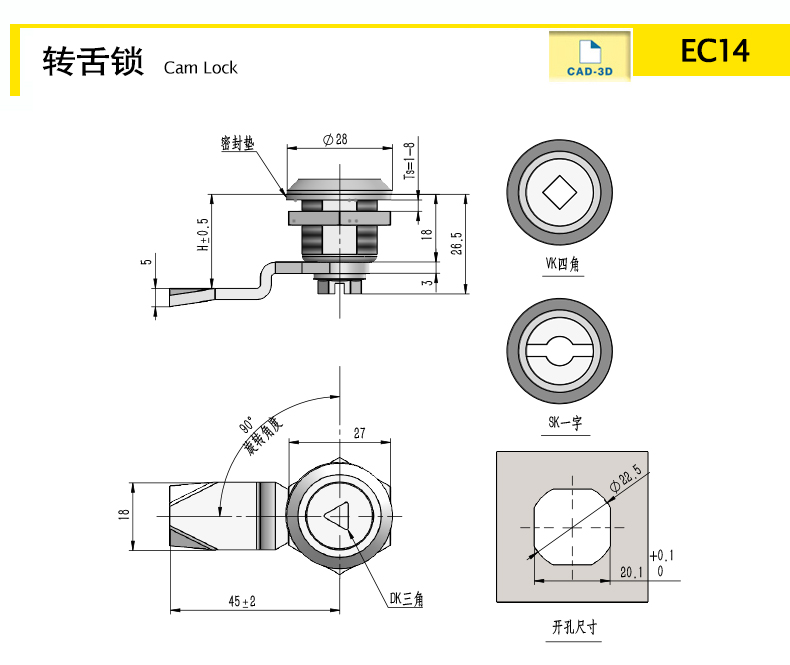

| model | function  | material quality | H | With key | surface treatment | Weight (g) | 3D | Purchasing | |||
|---|---|---|---|---|---|---|---|---|---|---|---|
| select | Reset | download | select | ||||||||
| EC14B-1DK | cylindrical lock | SUS304 | 18 | optional | Polishing | 94.21 | download | ||||
| EC14B-2DK | cylindrical lock | SUS304 | 23 | optional | Polishing | 95.71 | download | ||||
| EC14B-3DK | cylindrical lock | SUS304 | 28 | optional | Polishing | 95.91 | download | ||||
| EC14B-1VK | cylindrical lock | SUS304 | 18 | optional | Polishing | 98.71 | download | ||||
| EC14B-2VK | cylindrical lock | SUS304 | 23 | optional | Polishing | 96.31 | download | ||||
| EC14B-3VK | cylindrical lock | SUS304 | 28 | optional | Polishing | 96.51 | download | ||||
| EC14B-1SK | cylindrical lock | SUS304 | 18 | optional | Polishing | 96.01 | download | ||||
| EC14B-2SK | cylindrical lock | SUS304 | 23 | optional | Polishing | 96.51 | download | ||||
| EC14B-3SK | cylindrical lock | SUS304 | 28 | optional | Polishing | 98.11 | download |
Applicable door panel thickness: 1-5mm
Structural function: Rotate the angle to achieve opening or closing
Installation: Determine the size based on the actual hole spacing specifications of the product; Fix with rivets, screws, spot welding, and other methods
