Flat lock

EF16

Flat lock

Zinc alloy

purpose：Flat lock

sample book CAD

model Check the box

- + individual
Get a quote

Total price (before tax):5.3*100=530.00element

total:560.00element

Order Now

communication

quantity price
1-4 16.8element
50+ 13.6element

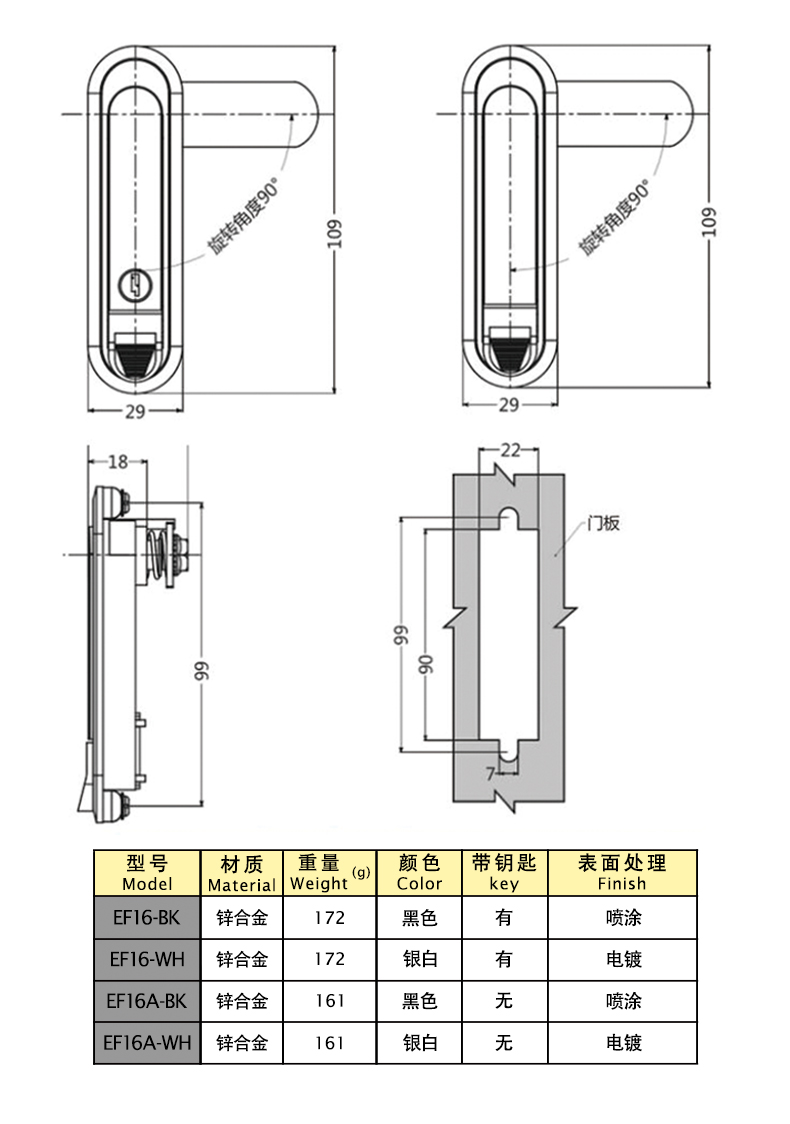

Product dimension diagram
Product dimensions and attributes
  model
function function material quality material quality Length (mm) Length (mm) With key With key surface treatment surface treatment Weight (g)
3D Purchasing
select Reset
download select
EF16S-BK
Flat lock Zinc alloy 109 Yes Spray coating 1
download
EF16S-SR
Flat lock Zinc alloy 109 Yes Electroplating 1
download
EF16-BK
Flat lock Zinc alloy 109 None Spray coating 1
download
EF16-SR
Flat lock Zinc alloy 109 None Electroplating 1
download
characteristic
Material: Zinc alloy lock case, handle, button A3 steel lock plate accessories
Surface treatment: spray painting, electroplating
Structural function: locked by the key, the handle automatically pops up and rotates to open when pressed, and the position of the lock plate can be swapped to be universal on both sides
Note: Applicable door panel thickness 1-3mm
