select language version
model Check the box
Total price (before tax):5.3*100=530.00element
total:560.00element
communication
| quantity | price |
|---|---|
| 1-4 | 16.8element |
| 50+ | 13.6element |

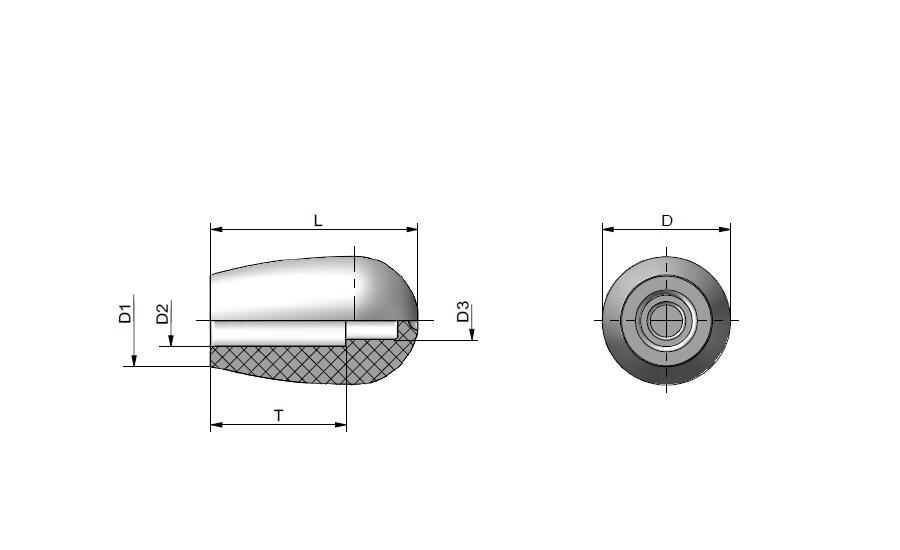

| model | material quality | Diameter D  | Length L | D1 | T | D2 | Weight (g) | 3D | Purchasing | |||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| select | Reset | download | select | |||||||||
| T90-D16-6-BK | Polyamide (PA) | 16 | 25 | 11 | 17 | 6 | 8 | download | ||||
| T90-D16-6-RD | Polyamide (PA) | 16 | 25 | 11 | 17 | 6 | 8 | download | ||||
| T90-D16-6-WH | Polyamide (PA) | 16 | 25 | 11 | 17 | 6 | 8 | download | ||||
| T90-D20-8-BK | Polyamide (PA) | 20 | 32 | 14 | 21 | 8 | 8 | download | ||||
| T90-D20-8-RD | Polyamide (PA) | 20 | 32 | 14 | 21 | 8 | 8 | download | ||||
| T90-D20-8-WH | Polyamide (PA) | 20 | 32 | 14 | 21 | 8 | 8 | download | ||||
| T90-D26-8-BK | Polyamide (PA) | 26 | 42 | 18 | 27 | 8 | 8 | download | ||||
| T90-D26-8-RD | Polyamide (PA) | 26 | 42 | 18 | 27 | 8 | 8 | download | ||||
| T90-D26-8-WH | Polyamide (PA) | 26 | 42 | 18 | 27 | 8 | 8 | download | ||||
| T90-D26-10-BK | Polyamide (PA) | 26 | 42 | 18 | 27 | 10 | 20.41 | download | ||||
| T90-D26-10-RD | Polyamide (PA) | 26 | 42 | 18 | 27 | 10 | 8 | download | ||||
| T90-D26-10-WH | Polyamide (PA) | 26 | 42 | 18 | 27 | 10 | 8 | download | ||||
| T90-D34-10-BK | Polyamide (PA) | 50 | 54 | 24 | 35 | 10 | 8 | download | ||||
| T90-D34-10-RD | Polyamide (PA) | 50 | 54 | 24 | 35 | 10 | 8 | download | ||||
| T90-D34-10-WH | Polyamide (PA) | 50 | 54 | 24 | 35 | 10 | 8 | download | ||||
| T90-D34-12-BK | Polyamide (PA) | 50 | 54 | 24 | 35 | 12 | 8 | download | ||||
| T90-D34-12-RD | Polyamide (PA) | 50 | 54 | 24 | 35 | 12 | 8 | download | ||||
| T90-D34-12-WH | Polyamide (PA) | 50 | 54 | 24 | 35 | 12 | 8 | download |
WH: White RD: Red BK: Black
Blind light hole. The elastic connection formed by pressing onto the drawing die rod with a tolerance in accordance with H9 regulations is not only not affected by vibration, but also prevents accidental loosening and sliding of the handle.
