Adjustable self-locking toggle latch拉手,搭扣,旋钮天甲工业

A111B

Adjustable self-locking toggle latch

Polishing

purpose：Adjustable self-locking toggle latch

model Check the box

- + individual

Total price (before tax):5.3*100=530.00element

total:560.00element

communication

quantity	price
1-4	16.8element
50+	13.6element

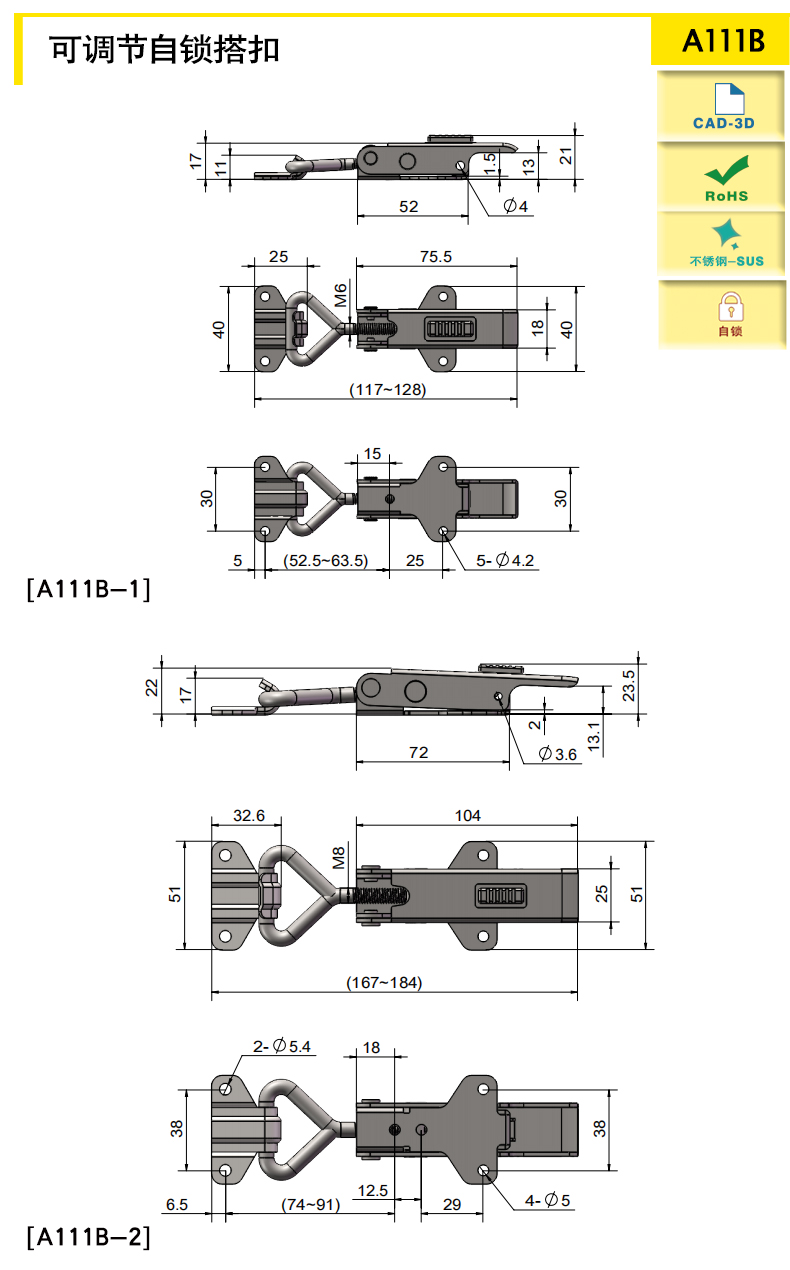

Product dimension diagram

Product dimensions and attributes

	model	function	Length (mm)	material quality	Weight (g)	Locking force (N)	3D	Purchasing
select	Reset						download	select
	A111B-1	adjustable,self lock	117~128	SUS304	85.21	1000	download	buy
	A111B-2	adjustable,self lock	167~184	SUS304	198.41	1800	download	buy

characteristic

With side holes, can be equipped with locks or lead seals to prevent loosening

The self-locking device can achieve self-locking function, with reliable safety, and the buckle will not loosen due to vibration

The locking distance is adjustable and can be adjusted by the screw to achieve different locking forces

Services available
