Internal adjustable toggle latch拉手,搭扣,旋钮天甲工业

A56

Internal adjustable toggle latch

Galvanized/Polishing

purpose：Internal adjustable toggle latch

sample book CAD

model Check the box

- + individual

Get a quote

Total price (before tax):5.3*100=530.00element

total:560.00element

Order Now

communication

quantity	price
1-4	16.8element
50+	13.6element

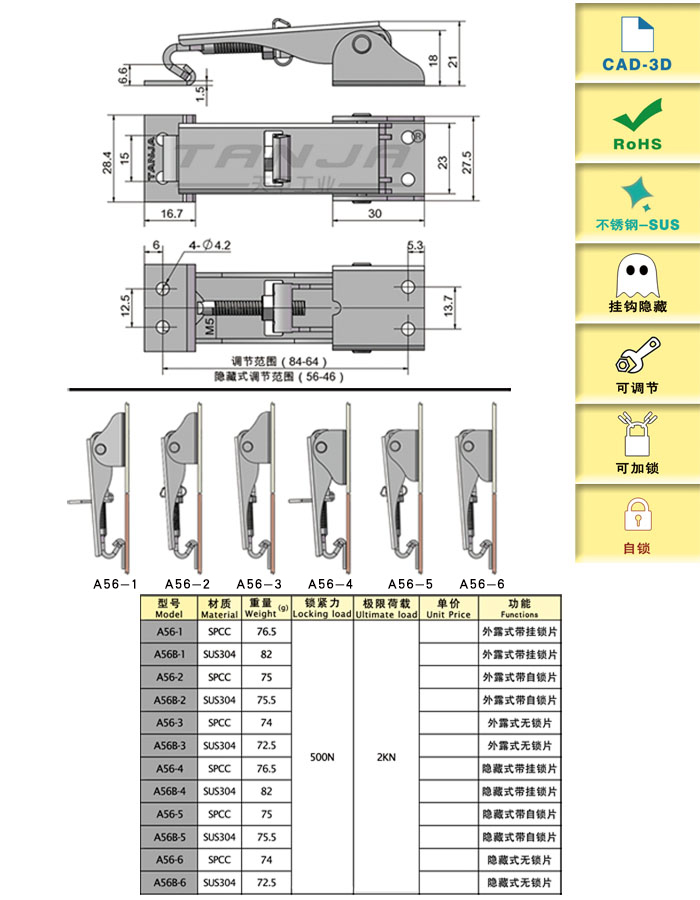

Product dimension diagram

Product dimensions and attributes

	model	function	Length (mm)	material quality	Weight (g)	Locking force (N)	3D	Purchasing
select	Reset						download	select
	A56-1	concealed,adjustable,with lock	81.3	SPCC	76.93	500	download	buy
	A56B-1	concealed,adjustable,with lock	81.3	SUS304	75.01	500	download	buy
	A56-2	concealed,adjustable,self lock	81.5	SPCC	75.19	500	download	buy
	A56B-2	concealed,adjustable,self lock	81.5	SUS304	72.41	500	download	buy
	A56-3	concealed,adjustable	81.6	SPCC	74.08	500	download	buy
	A56B-3	concealed,adjustable	81.6	SUS304	73	500	download	buy
	A56-4	concealed,adjustable,with lock	81.4	SPCC	76.93	500	download	buy
	A56B-4	concealed,adjustable,with lock	81.4	SUS304	74.21	500	download	buy
	A56-5	concealed,adjustable,self lock	82.2	SPCC	75.19	500	download	buy
	A56B-5	concealed,adjustable,self lock	82.2	SUS304	72.61	500	download	buy
	A56-6	concealed,adjustable	82.6	SPCC	74.08	500	download	buy
	A56B-6	concealed,adjustable	82.6	SUS304	73	500	download	buy

characteristic

The internal buckle mechanism can hide all installation hardware and locking functions under the handle, and the lower eccentric mechanism can achieve firm off plane locking.

A56-1 and A56-4 have a padlock structure

A56-2 and A56-5 have self-locking structures to prevent accidental opening

Services available

With adjustable function and simple operation
